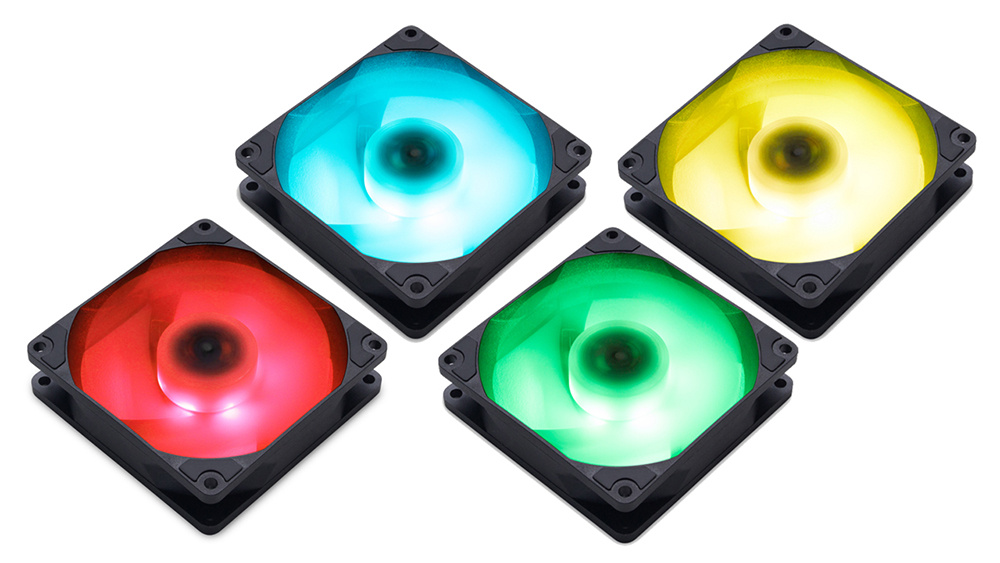

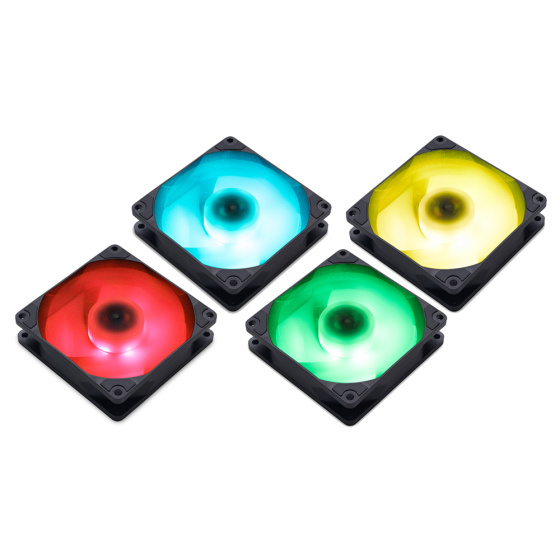

SCYTHE KF9225FD23R-P Kaze Flex 92 mm RGB PWM 300-2300 rpm
Kód: i54_201063888K odeslání do 2 prac. dnů
Termín a spôsob doručenia
KAZE-FLEX 92mm PWM RGB Model number: KF9225FD23R-P / JAN: 4571225057484 92mm case fan "KAZE FLprečítajte si viac
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodnené balenie
Množstevné zľavy
/envelope.svg){kind=small}
Váš dotaz
/bell.svg){kind=small}
Sledovat
/share.svg){kind=small}
Zdieľať
Parametre
Výrobca:
Kód:
i54_201063888
EAN:
4571225057484
Záruka:
24
Stav:
Průměr ventilátoru:
92
Počet kusů v balení:
1
Podsvícení:
RGB
PWM regulace:
Ano
Popis SCYTHE KF9225FD23R-P Kaze Flex 92 mm RGB PWM 300-2300 rpm
KAZE-FLEX 92mm PWM RGB
Model number: KF9225FD23R-P / JAN: 4571225057484
92mm case fan "KAZE FLEX" RGB model
- 4-pin RGB compatible version of 92mm case fan "KAZE FLEX" that uses high-density sealed FDB (Sealed Precision FDB) with long life
Sealed Precision FDB
· Highly oil-retaining ability that suppresses volatilization and leakage due to the completely sealed bearing structure without the oil-filled cap.
· The fluid bearing structure that stores oil in the space between the rotating shaft and the bearing provides a high lubrication effect and quietness. The bearing uses a high-strength and high-durability high alloy to achieve low friction and long life.
· Uses high-quality lubricating oil that can withstand high temperatures of 200-250C
Shock absorbing rubber pad
-Excellent vibration absorption and fan stability.
Extender cable specifications
· The fan cable is usually 30 cm. By extension cable, it can be extended up to 50Cm
(RGB cable will be impossible extended 50cm)
Accessories
-Fan extender cable, mounting screws
Package
· 100 (W) × 170 (H) × 28 ( D) mm · 135 g
92mm case fan "KAZE FLEX" 4-pin RGB compatible version
Variable PWM / 2300 rpm
Compatible with motherboard manufacturers RGB certified
ASUS AURA SYNC, ASRock RGB LED, MSI Mystic Light Sync, GIGABYTE RGB Fusion
Daisy chain specification
4-pin RGB connector is a branch cable (daisy chain) specification that can be expanded.
* Since it can be expanded with a branch cable, it does not consume the 4-pin RGB header on the motherboard.
Sealed Precision FDB
Adopts a completely sealed bearing structure that eliminates the oil-sealed cap.
This realizes a high holding capacity that minimizes oil volatilization and leakage
Oil in the space between the rotating shaft and the bearing Highly effective lubrication and quietness are achieved by the fluid bearing structure that stores water. By using a
high alloy with high strength and durability in the bearing part, low friction and long life are realized.
Uses oil.
Shock absorption rubber pad
By adopting "shock absorption rubber pad", it has excellent vibration absorption and fan stability.
Long life
MTBF 120,000 hours long life under 25 ? environment
Extender cable specifications The
fan cable is normally 30 cm and can be extended to 50 cm with an extension cable
(RGB cable cannot be extended)
Accessories: Extender cable for fan, mounting screw
4-pin PWM connection automatically changes fan speed
92 x 92 x 26 mm thick, without ribs
Package size / weight: 100 (W) × 170 (H) × 28 (D) mm · 135 g
RoHS compliant eco-friendly product
Model number KF9225FD23R-P
JAN 4571225057484
size 92 x 92 x 26 mm thick
Speed ??(variable PWM) 300 (± 200) ~ 2300 rpm (± 10%)
Noise / air volume 7.3 ~ 28.83 dBA / 6.75 ~ 48.88 CFM
Static pressure 00.8 ~ 2.03 mmH2O / 7.85 ~ 19.91 Pa
Rated current 0.2 A / LED 0.12 A
Drive voltage 12 VDC
rib None
weight 95 g
Fan connection PWM 4 pin
cable length Fan cable 30cm (extendable to 50cm), RGB cable 50cm
bearing Sealed Precision FDB
MTBF 120,000 hours (25 ?)
Model number: KF9225FD23R-P / JAN: 4571225057484
92mm case fan "KAZE FLEX" RGB model
- 4-pin RGB compatible version of 92mm case fan "KAZE FLEX" that uses high-density sealed FDB (Sealed Precision FDB) with long life
Sealed Precision FDB
· Highly oil-retaining ability that suppresses volatilization and leakage due to the completely sealed bearing structure without the oil-filled cap.
· The fluid bearing structure that stores oil in the space between the rotating shaft and the bearing provides a high lubrication effect and quietness. The bearing uses a high-strength and high-durability high alloy to achieve low friction and long life.
· Uses high-quality lubricating oil that can withstand high temperatures of 200-250C
Shock absorbing rubber pad
-Excellent vibration absorption and fan stability.
Extender cable specifications
· The fan cable is usually 30 cm. By extension cable, it can be extended up to 50Cm
(RGB cable will be impossible extended 50cm)
Accessories
-Fan extender cable, mounting screws
Package
· 100 (W) × 170 (H) × 28 ( D) mm · 135 g
92mm case fan "KAZE FLEX" 4-pin RGB compatible version
Variable PWM / 2300 rpm
Compatible with motherboard manufacturers RGB certified
ASUS AURA SYNC, ASRock RGB LED, MSI Mystic Light Sync, GIGABYTE RGB Fusion
Daisy chain specification
4-pin RGB connector is a branch cable (daisy chain) specification that can be expanded.
* Since it can be expanded with a branch cable, it does not consume the 4-pin RGB header on the motherboard.
Sealed Precision FDB
Adopts a completely sealed bearing structure that eliminates the oil-sealed cap.
This realizes a high holding capacity that minimizes oil volatilization and leakage
Oil in the space between the rotating shaft and the bearing Highly effective lubrication and quietness are achieved by the fluid bearing structure that stores water. By using a
high alloy with high strength and durability in the bearing part, low friction and long life are realized.
Uses oil.
Shock absorption rubber pad
By adopting "shock absorption rubber pad", it has excellent vibration absorption and fan stability.
Long life
MTBF 120,000 hours long life under 25 ? environment
Extender cable specifications The
fan cable is normally 30 cm and can be extended to 50 cm with an extension cable
(RGB cable cannot be extended)
Accessories: Extender cable for fan, mounting screw
4-pin PWM connection automatically changes fan speed
92 x 92 x 26 mm thick, without ribs
Package size / weight: 100 (W) × 170 (H) × 28 (D) mm · 135 g
RoHS compliant eco-friendly product
Model number KF9225FD23R-P
JAN 4571225057484
size 92 x 92 x 26 mm thick
Speed ??(variable PWM) 300 (± 200) ~ 2300 rpm (± 10%)
Noise / air volume 7.3 ~ 28.83 dBA / 6.75 ~ 48.88 CFM
Static pressure 00.8 ~ 2.03 mmH2O / 7.85 ~ 19.91 Pa
Rated current 0.2 A / LED 0.12 A
Drive voltage 12 VDC
rib None
weight 95 g
Fan connection PWM 4 pin
cable length Fan cable 30cm (extendable to 50cm), RGB cable 50cm
bearing Sealed Precision FDB
MTBF 120,000 hours (25 ?)
