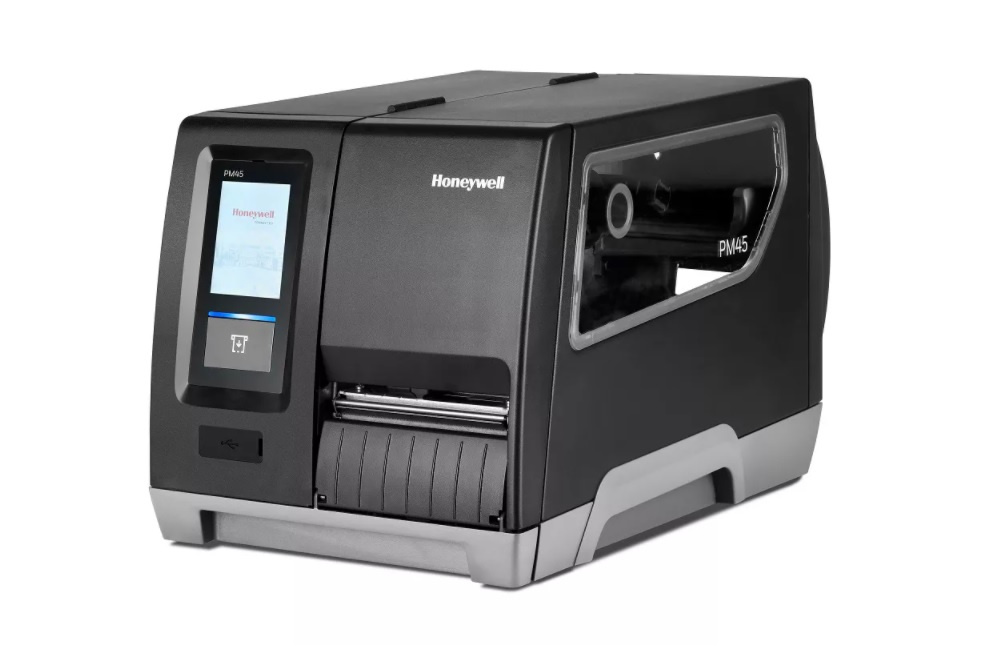

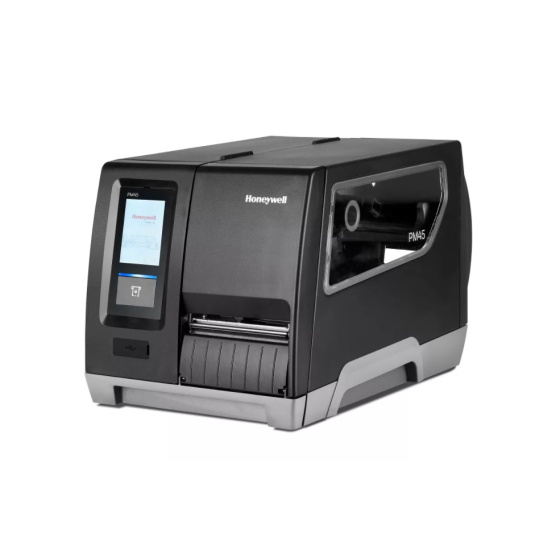

PM45 - FullTouch, 203 dpi, BT, Wi-Fi
Kód: i54_IMPM4509Na dotaz
Termín a spôsob doručenia
PHYSICAL CHARACTERISTICS PM45: L x H x W: 483 mm x 295mm x 284 mm (19.0 in x 11.11.6 in x 11.prečítajte si viac
Vyberte si zvýhodnené balenie
Množstevné zľavy
/envelope.svg){kind=small}
Váš dotaz
/bell.svg){kind=small}
Sledovat
/share.svg){kind=small}
Zdieľať
Parametre
Výrobca:
Kód:
i54_IMPM4509
Záruka:
12
Stav:
Rozlišení:
203
Typ:
Tiskárna
Připojení:
Wi-Fi
Prostředí:
Průmyslové
Tisk:
Termotransferový
Popis PM45 - FullTouch, 203 dpi, BT, Wi-Fi
PHYSICAL CHARACTERISTICS
PM45:
L x H x W: 483 mm x 295mm x 284 mm (19.0 in x 11.11.6 in x 11.2 in)
Weight: 13.2 kg (29.1lbs)
PM45c: L x H x W: 432 mm x 181 mm x 253 mm (17.0 in x 7.1 in x 10.0 in)
Weight: 12.6 kg (27.7 lbs)
PM45c with Mega Door
L x H x W: 500 mm x 245 mm x 253 mm (19.7 in x 9.6 in x 10.0 in)
Weight: 12.8 kg (28.0 lbs)
PM45/45C PRINT SPECIFICATIONS
Max.Width at 203 dpi: 108 mm (4.25 in)
Max.Width at 300 dpi: 105.7 mm (4.17 in)
Max.Width at 406 dpi: 104 (4.09 in)
Max.Width at 600 dpi: 105.6 mm (4.16 in)
Max.length at 203 dpi: 4.8 m (189 in)
Max.length at 300 dpi: 2.2m (85in)
Max.length at 406 dpi: 1.2 m (47.2 in)
Max.length at 600 dpi: 0.55m (22in)
WIRELESS CONNECTIVITY
WLAN: IEEE 802.11 a/b/g/n/ac; Wi-Fi certified, 1x1 SISO
Additional WLAN Features: 802.11d/e/h/ i/k/r
Security: OPEN, WEP, WPA/WPA2 (Personal and Enterprise),
Supported EAP: TLS, PEAP, TTLS, PWD, LEAP, FAST
Bluetooth: V5.0 Bluetooth and BLE Supported
WWAN: WWAN Radio
CAT4 LTE Modem
MIMO - Main/Rx-diversity
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/ B13/ B18/B19/B20/B25/B26/B28
LTE TDD: B38/B39/B40/B41 UMTS: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8
Slot: Micro Sim Card slot x 1
PRINT SPEED
At 203 dpi: 50-350 mm/s (2-14ips)
At 300 dpi: 50-300 mm/s (2-12ips)
At 406 dpi: 50-250 mm/s (2-10ips)
At 600 dpi: 50-150 mm/s (2-6ips)
PRINT RESOLUTION
At 203 dpi: 8 dots/mm
At 300 dpi: 11.8 dots/mm
At 406 dpi: 16 dots/mm
At 600 dpi: 23.6 dots/mm
PM 45/45C MEDIA SPECIFICATION
Type: Labels and Tags and Linered media
Max./Min.Width: 114/19 mm (4.5/0.75 in)
Configuration: Roll-fed or fan-fold
Media Sensing: Gap, Notch, Black mark, Continous, Media low, Media end
Other sensing: Label Taken sensing, Ribbon Low/End sensing, Head lift sensing
Label Roll Max.Diameter: 152 mm (6 in) for PM45c long door models; 213 mm (8.38 in) for all other models of PM45/PM45c
Label Roll Core ID: 38-76 mm (1.5-3 in)
RIBBON SPECIFICATION
Type: Wax, mid-range and resin
INTERFACES
Standard:
*Ethernet 10/100/1000 Mbps
*USB 2.0 Host (x2 PM45, x1 PM45C)
*USB 2.0 Device RS-232, up to 115.2 KB/s
Optional:
*Parallel Interface (IEEE 1284)
*Industrial interface - eight digital in/out, four analog relays, one RS232/422/485 port
*Applicator Interface - Ext Error 8-pin miniDIN, Z-style standard DB15 port, S-style standard 14-pin Centronics, Ext Power 6-pin mini-DIN
*RFID - Supports EPC Class 1 Gen2, 18000-6C. Radio configured to comply with local UHF RFID regulations including FCC and ETSI. Contact local representative for availability in particular region.
Supported Network Protocols:
*TCP/IP suite (TCP, UDP, ICMP, IGMP), LPR/ LPD, Telnet/SSH, FTP/SFTP, BOOTP, DHCP, HTTP/HTTPS, SNMPv1/2c/3, SNMP-MIBII supported - over UDP/IP (private enterprise MIB included), SMTP Supports IPv4 and IPv6
SOFTWARE
Printer Command Languages: Fingerprint (FP) Direct Protocol (DP) Intermec Printer Language (IPL)3 ZSim2 (ZPL-II), DPL, XML-enabled for SAP® AII and Oracle® WMS, PDF, C#
Applications/Drivers: InterDriver Windows® printer driver, CUPS driver for Linux, Honeywell Device Types for SAP, Honeywell label design and print package
Smart Printing Languages: C# for Printers: Honeywell Smart Printing Developer Resource Kit; write apps with .NET- compatible development environments.
Configuration and Device Management Support (optional): OpIntel - PrintSet 5 for printer configuration; sophisticated web interface for configuration, upgrades and 1:1 management; Print Set MC (Android™ and Apple® iOS) for printer configuration via Bluetooth LE only
BARCODES/FONTS/GRAPHICS
Barcode Symbologies: All major 1D and 2D symbologies are supported
Standards Supported: UPC/EAN Shipping Container, UCC/EAN 128, Serial Shipping Container, MH10.8 Shipping Label, AIAG (shipping parts label), OGMARS, POSTNET, HIBCC, ISBT 128, GM1724, UPS Shipping Label, Global Transport Label
FONTS
Monotype font engine
Non-Latin fonts available through WTLE
GRAPHICS
Supports PCX, PNG, GIFand BMP file formats.
Other formats supported with Label Generation Tools.
MEMORY
Standard: 512 MB Flash memory, 256 MB SDRAM, Multi-GB USB memory device (FAT16/FAT22)
User Partitioning: 256MB
USER INTERFACE
Full Touch UI, Icon UI
USER INTERFACE LANGUAGES
On Full Touch LCD and Web Interface: English, Russian, German, French, Portuguese, Spanish, Italian, Korean, Thai, Japanese, Simplified and Traditional Chinese
POWER SUPPLY
AC Voltage: 100 to 240V AC, 50 to 60 Hz
Power Consumption: Standby 9.6W; Peak 270W (24V), Peak 145W (33V)
OPERATING ENVIRONMENT
Ambient Operating Temperature: +5°C to +40°C (+41°F to +104°F)
Storage Temperature: -20°C to +70°C (-4°F to +152°F)
Operating Humidity: 20 to 85% non-condensing
Storage Humidity: 5 to 90% non-condensing
REGULATORY APPROVALS
RoHS Compliant, CE (EN55032 Class B*), FCC Class B*, Energy Star 3.0 Qualified For more countries compliant, please contact your local sales office.
PM45:
L x H x W: 483 mm x 295mm x 284 mm (19.0 in x 11.11.6 in x 11.2 in)
Weight: 13.2 kg (29.1lbs)
PM45c: L x H x W: 432 mm x 181 mm x 253 mm (17.0 in x 7.1 in x 10.0 in)
Weight: 12.6 kg (27.7 lbs)
PM45c with Mega Door
L x H x W: 500 mm x 245 mm x 253 mm (19.7 in x 9.6 in x 10.0 in)
Weight: 12.8 kg (28.0 lbs)
PM45/45C PRINT SPECIFICATIONS
Max.Width at 203 dpi: 108 mm (4.25 in)
Max.Width at 300 dpi: 105.7 mm (4.17 in)
Max.Width at 406 dpi: 104 (4.09 in)
Max.Width at 600 dpi: 105.6 mm (4.16 in)
Max.length at 203 dpi: 4.8 m (189 in)
Max.length at 300 dpi: 2.2m (85in)
Max.length at 406 dpi: 1.2 m (47.2 in)
Max.length at 600 dpi: 0.55m (22in)
WIRELESS CONNECTIVITY
WLAN: IEEE 802.11 a/b/g/n/ac; Wi-Fi certified, 1x1 SISO
Additional WLAN Features: 802.11d/e/h/ i/k/r
Security: OPEN, WEP, WPA/WPA2 (Personal and Enterprise),
Supported EAP: TLS, PEAP, TTLS, PWD, LEAP, FAST
Bluetooth: V5.0 Bluetooth and BLE Supported
WWAN: WWAN Radio
CAT4 LTE Modem
MIMO - Main/Rx-diversity
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/ B13/ B18/B19/B20/B25/B26/B28
LTE TDD: B38/B39/B40/B41 UMTS: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8
Slot: Micro Sim Card slot x 1
PRINT SPEED
At 203 dpi: 50-350 mm/s (2-14ips)
At 300 dpi: 50-300 mm/s (2-12ips)
At 406 dpi: 50-250 mm/s (2-10ips)
At 600 dpi: 50-150 mm/s (2-6ips)
PRINT RESOLUTION
At 203 dpi: 8 dots/mm
At 300 dpi: 11.8 dots/mm
At 406 dpi: 16 dots/mm
At 600 dpi: 23.6 dots/mm
PM 45/45C MEDIA SPECIFICATION
Type: Labels and Tags and Linered media
Max./Min.Width: 114/19 mm (4.5/0.75 in)
Configuration: Roll-fed or fan-fold
Media Sensing: Gap, Notch, Black mark, Continous, Media low, Media end
Other sensing: Label Taken sensing, Ribbon Low/End sensing, Head lift sensing
Label Roll Max.Diameter: 152 mm (6 in) for PM45c long door models; 213 mm (8.38 in) for all other models of PM45/PM45c
Label Roll Core ID: 38-76 mm (1.5-3 in)
RIBBON SPECIFICATION
Type: Wax, mid-range and resin
INTERFACES
Standard:
*Ethernet 10/100/1000 Mbps
*USB 2.0 Host (x2 PM45, x1 PM45C)
*USB 2.0 Device RS-232, up to 115.2 KB/s
Optional:
*Parallel Interface (IEEE 1284)
*Industrial interface - eight digital in/out, four analog relays, one RS232/422/485 port
*Applicator Interface - Ext Error 8-pin miniDIN, Z-style standard DB15 port, S-style standard 14-pin Centronics, Ext Power 6-pin mini-DIN
*RFID - Supports EPC Class 1 Gen2, 18000-6C. Radio configured to comply with local UHF RFID regulations including FCC and ETSI. Contact local representative for availability in particular region.
Supported Network Protocols:
*TCP/IP suite (TCP, UDP, ICMP, IGMP), LPR/ LPD, Telnet/SSH, FTP/SFTP, BOOTP, DHCP, HTTP/HTTPS, SNMPv1/2c/3, SNMP-MIBII supported - over UDP/IP (private enterprise MIB included), SMTP Supports IPv4 and IPv6
SOFTWARE
Printer Command Languages: Fingerprint (FP) Direct Protocol (DP) Intermec Printer Language (IPL)3 ZSim2 (ZPL-II), DPL, XML-enabled for SAP® AII and Oracle® WMS, PDF, C#
Applications/Drivers: InterDriver Windows® printer driver, CUPS driver for Linux, Honeywell Device Types for SAP, Honeywell label design and print package
Smart Printing Languages: C# for Printers: Honeywell Smart Printing Developer Resource Kit; write apps with .NET- compatible development environments.
Configuration and Device Management Support (optional): OpIntel - PrintSet 5 for printer configuration; sophisticated web interface for configuration, upgrades and 1:1 management; Print Set MC (Android™ and Apple® iOS) for printer configuration via Bluetooth LE only
BARCODES/FONTS/GRAPHICS
Barcode Symbologies: All major 1D and 2D symbologies are supported
Standards Supported: UPC/EAN Shipping Container, UCC/EAN 128, Serial Shipping Container, MH10.8 Shipping Label, AIAG (shipping parts label), OGMARS, POSTNET, HIBCC, ISBT 128, GM1724, UPS Shipping Label, Global Transport Label
FONTS
Monotype font engine
Non-Latin fonts available through WTLE
GRAPHICS
Supports PCX, PNG, GIFand BMP file formats.
Other formats supported with Label Generation Tools.
MEMORY
Standard: 512 MB Flash memory, 256 MB SDRAM, Multi-GB USB memory device (FAT16/FAT22)
User Partitioning: 256MB
USER INTERFACE
Full Touch UI, Icon UI
USER INTERFACE LANGUAGES
On Full Touch LCD and Web Interface: English, Russian, German, French, Portuguese, Spanish, Italian, Korean, Thai, Japanese, Simplified and Traditional Chinese
POWER SUPPLY
AC Voltage: 100 to 240V AC, 50 to 60 Hz
Power Consumption: Standby 9.6W; Peak 270W (24V), Peak 145W (33V)
OPERATING ENVIRONMENT
Ambient Operating Temperature: +5°C to +40°C (+41°F to +104°F)
Storage Temperature: -20°C to +70°C (-4°F to +152°F)
Operating Humidity: 20 to 85% non-condensing
Storage Humidity: 5 to 90% non-condensing
REGULATORY APPROVALS
RoHS Compliant, CE (EN55032 Class B*), FCC Class B*, Energy Star 3.0 Qualified For more countries compliant, please contact your local sales office.
