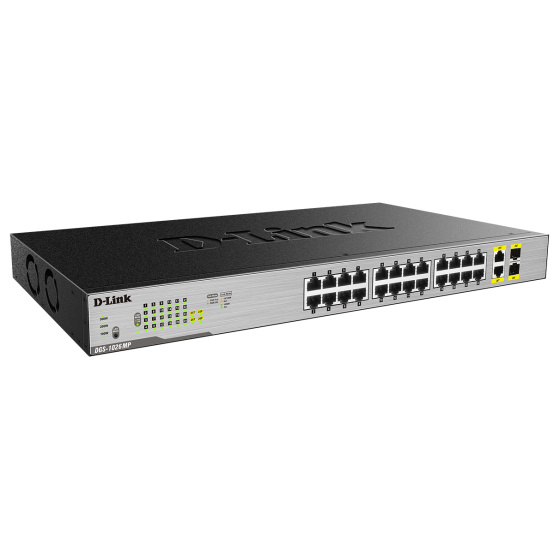

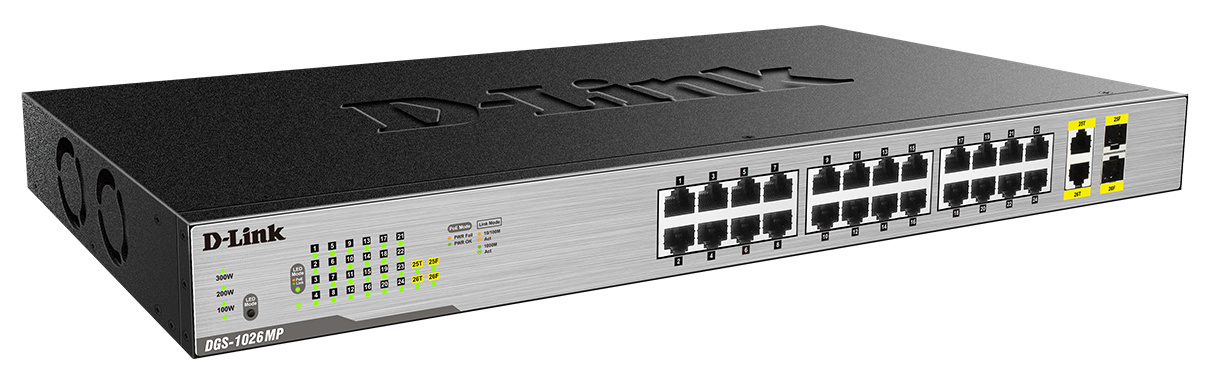

D-Link DGS-1026MP 24x10/100/1000 Desktop Switch
Kód: i54_512026131Na dotaz
Termín a spôsob doručenia
26 Port Gigabit Max PoE Switch: DGS-1026MP PŘEHLED The D-Link DGS-1026MP 26-Port Gigabit Max Pprečítajte si viac
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodnené balenie
Množstevné zľavy
/envelope.svg){kind=small}
Váš dotaz
/bell.svg){kind=small}
Sledovat
/share.svg){kind=small}
Zdieľať
Parametre
Výrobca:
Kód:
i54_512026131
EAN:
790069426667
Záruka:
24
Stav:
Počet LAN portů:
26
Počet LAN portů:
26
Počet SFP portů:
2
Management:
Unmanaged switch
Optika:
Ano
POE:
Ano
POE standard:
802.3at (max. 33,6W) - PoE+
PoE:
Out (výstup)
PoE In standard:
Nepodporuje
PoE Out standard:
802.3at (max. 33,6W) - PoE+
PoE power budget (W):
301-400
Popis D-Link DGS-1026MP 24x10/100/1000 Desktop Switch
26 Port Gigabit Max PoE Switch: DGS-1026MP
PŘEHLED
The D-Link DGS-1026MP 26-Port Gigabit Max PoE Switch enables users to easily connect and power PoE-capable devices such as wireless access points (APs), IP cameras, and IP phones.
The DGS-1026MP features 24 10/100/1000BASE-T ports that support the IEEE 802.3at PoE+ standard. Each of the 24 PoE ports can supply up to 30 W, with a total PoE budget of 370 W.
The PoE usage LEDs further provide real-time feedback on the current PoE power usage on the network and helps plan out the PoE network budget, preventing PoE overloading problems.
With 2 x Gigabit combo uplink ports, businesses have additional flexibility their network deployment, offering a choice for upstream or downstream server connections via a fibre or copper interface.
To help small businesses save on operating costs, the DGS-1026MP supports IEEE 802.3az Energy Efficient Ethernet (EEE). This feature actively monitors network traffic and automatically puts ports that are not being used into hibernation, powering them on only when they are required.
The DGS-1026MP is a plug-and-play device that requires no configuration, so setup is simple and hassle-free. Simply connect the switch to the network and then connect multiple computers, share files and make VoIP calls across the network.
TECHNICKÁ SPECIFIKACE
General
Number of Ports
*24 x 10/100/1000 Mbps ports
*2 x 10/100/1000BASE-T/SFP combo ports
Standards
*IEEE 802.3 10BASE-T Ethernet
*IEEE 802.3u 100BASE-TX Fast Ethernet
*IEEE 802.3ab 1000BASE-T Gigabit Ethernet
*IEEE 802.3z
*IEEE 802.3x Flow Control
*IEEE 802.3az Energy Efficient Ethernet (EEE)
Switching Capacity
*52 Gbps switching fabric
64 Byte Max. Forwarding Rate
*38.69 Mpps
Media Interface Exchange
*Auto MDI/MDI-X
Transmission Method
*Store-and-forward
MAC Address Table
*8K (8192) entries per device
Packet Buffer Memory
*512 KB per device
PoE Standards
*IEEE 802.3at
*IEEE 802.3af
PoE Ports
*Ports 1 to 24
PoE Budget
*370 W
*Up to 30 W per port
Diagnostic LEDs
Per Unit
*Power
*PoE Power Budget
Per Port
*Activity/Link
*Speed
Per PoE Port
*Power Fail
*Power OK
Physical
Fan
*2 x Smart fans*
Dimensions
*440 x 250.4 x 44 mm
Weight
*3.1 kg
Power Input
*AC Input: 100 to 240 V AC, 50/60 Hz
Power Consumption
*Maximum:
*444.1 W (PoE on)
*82.1 W (PoE off)
*Standby:
*240 V: 18.25 W
Temperature
*Operating: 0 to 50 °C
*Storage: -40 to 70 °C
Humidity
*Operating: 10% to 90% RH, non-condensing
*Storage: 5% to 90% RH, non-condensing
MTBF
*205,975 hours
Heat Dissipation
*1,515 BTU/h
EMI
*FCC Class A
*CE
*CCC
*RoHS
*VCCI
*BSMI
*RCM
Safety
*UL/CSA 60950-1
*EN 60950-1
* IEC 60950-1
Optional SFP Transceivers
*DEM-310GT - 1000BASE-LX, Single-mode, 10 km
*DEM-311GT - 1000BASE-SX, Multi-mode, 550 m
*DEM-312GT2 - 1000BASE-SX, Multi-mode, 2 km
*DEM-314GT - 1000BASE-LHX, Single-mode, 50 km
