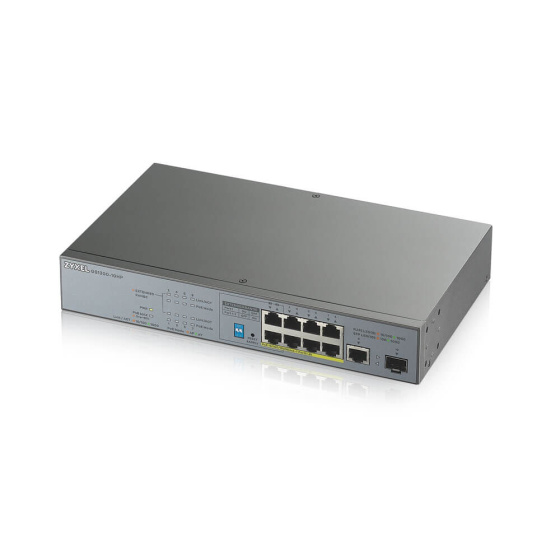

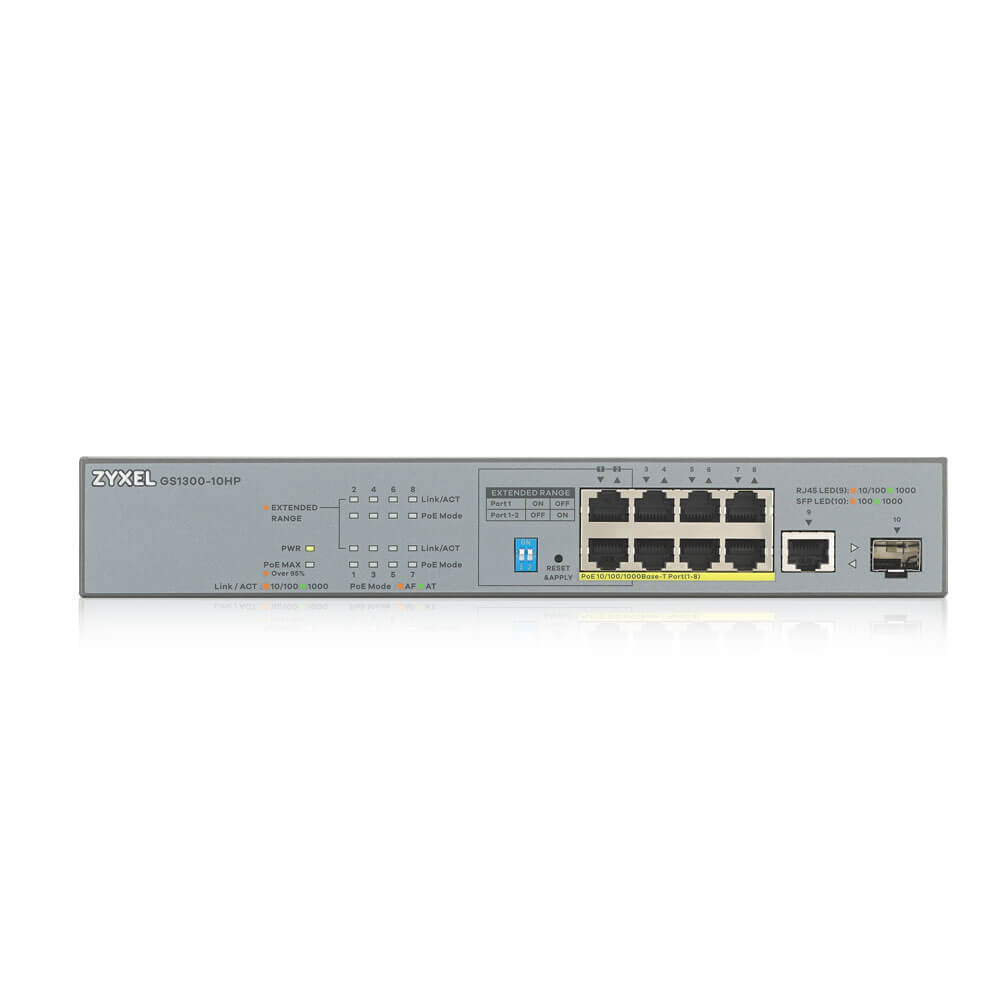

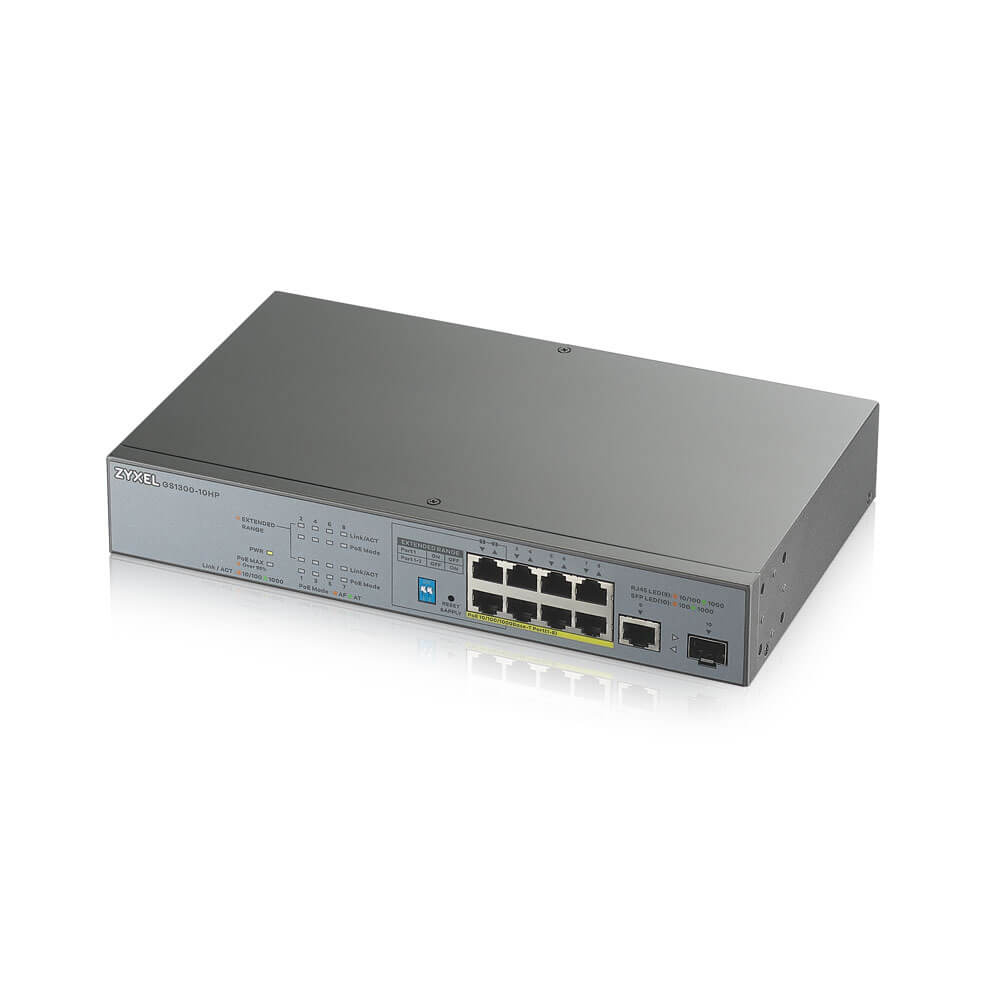

ZYXEL GS1300-10HP 10 Port unmanged CCTV PoE witch, 130W
Kód: i54_5010005548Na dotaz
Termín a spôsob doručenia
GS1300-10HP, 10 Port unmanged CCTV PoE witch, long range, 130W Zyxel introduces the GS1300 Seriesprečítajte si viac
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodnené balenie
Množstevné zľavy
/envelope.svg){kind=small}
Váš dotaz
/bell.svg){kind=small}
Sledovat
/share.svg){kind=small}
Zdieľať
Parametre
Výrobca:
Kód:
i54_5010005548
EAN:
4718937604197
Záruka:
10000
Stav:
Počet LAN portů:
10
Obsahuje switch:
Ano
Rychlost LAN max.:
1 Gbps
Počet LAN portů:
10
Management:
Unmanaged switch
Provedení switche:
Desktop
Optika:
Ano
POE:
Ano
POE standard:
802.3at (max. 33,6W) - PoE+
PoE:
Out (výstup)
PoE In standard:
Nepodporuje
PoE Out standard:
802.3at (max. 33,6W) - PoE+
PoE power budget (W):
101-200
Popis ZYXEL GS1300-10HP 10 Port unmanged CCTV PoE witch, 130W
GS1300-10HP, 10 Port unmanged CCTV PoE witch, long range, 130W
Zyxel introduces the GS1300 Series switches specialized in surveillance deployments. With a brand-new titanium grey exterior purpose-built for surveillance, the Series includes 3 models with a range of large power budgets from 130 W to 250 W. The GS1300 Series comes with specialized hardware features such as an extended range mode for long range-applications along with PoE LEDs for real-time status inspection.
TECHNICKÁ SPECIFIKACE
Port Destiny:
*Total port count: 10
*100/1000 Mbps: 9
*Gigabit SFP: 1
*Configurable extended range ports: 2
PoE:
*PoE ports: 8
*Total PoE budget (watt): 130
*PoE 802.3at: Yes
Performance:
*Switching capacity (Gbps): 20
*Forwarding rate (Mpps): 14.8
*Packet buffer (byte): 525 K
*MAC address table: 8 K
Power:
*Input: 100 - 240 V AC, 50/60 Hz
*Max. power consumption (watt): 155.8
Item:
*Dimensions (WxDxH)(mm): 267 x 162 x 44/
*Weight (kg): 1.65
Standard:
*IEEE 802.3 10Base-T Ethernet
*IEEE 802.3u 100Base-Tx Ethernet
*IEEE 802.3ab 1000Base-T Ethernet
*IEEE 802.3z 1000Base-X
*IEEE 802.3x flow control
*IEEE 802.3af PoE
*IEEE 802.3at PoE plus
*IEEE 802.3az EEE
*IEEE 802.1p Class of Service (CoS) prioritization
Certifications
EMC:
*CE, FCC, C-Tick, Class A
*BSMI CNS13438
Safety:
*LVD EN62368-1
*BSMI CNS14336-1
RoHS compliant
Installation Features
Supports lightning surge protection:
*Ethernet port: 2 KV
*Power input: 4 KV
Supports ESD protection (Air/Contact): 8 KV/4 KV
*Extended range of up to 250 meters*
*Fixed link speed at 10 Mbps
Limited to 802.af PDs and cameras
- *Extended range excels long range installation but the actual performance may be effected by cabling quality or IP camera’s electrical design. We recommend users to test for IOP before physical deployment. Contact Zyxel for IP camera’s interoperability report.
Zyxel introduces the GS1300 Series switches specialized in surveillance deployments. With a brand-new titanium grey exterior purpose-built for surveillance, the Series includes 3 models with a range of large power budgets from 130 W to 250 W. The GS1300 Series comes with specialized hardware features such as an extended range mode for long range-applications along with PoE LEDs for real-time status inspection.
TECHNICKÁ SPECIFIKACE
Port Destiny:
*Total port count: 10
*100/1000 Mbps: 9
*Gigabit SFP: 1
*Configurable extended range ports: 2
PoE:
*PoE ports: 8
*Total PoE budget (watt): 130
*PoE 802.3at: Yes
Performance:
*Switching capacity (Gbps): 20
*Forwarding rate (Mpps): 14.8
*Packet buffer (byte): 525 K
*MAC address table: 8 K
Power:
*Input: 100 - 240 V AC, 50/60 Hz
*Max. power consumption (watt): 155.8
Item:
*Dimensions (WxDxH)(mm): 267 x 162 x 44/
*Weight (kg): 1.65
Standard:
*IEEE 802.3 10Base-T Ethernet
*IEEE 802.3u 100Base-Tx Ethernet
*IEEE 802.3ab 1000Base-T Ethernet
*IEEE 802.3z 1000Base-X
*IEEE 802.3x flow control
*IEEE 802.3af PoE
*IEEE 802.3at PoE plus
*IEEE 802.3az EEE
*IEEE 802.1p Class of Service (CoS) prioritization
Certifications
EMC:
*CE, FCC, C-Tick, Class A
*BSMI CNS13438
Safety:
*LVD EN62368-1
*BSMI CNS14336-1
RoHS compliant
Installation Features
Supports lightning surge protection:
*Ethernet port: 2 KV
*Power input: 4 KV
Supports ESD protection (Air/Contact): 8 KV/4 KV
*Extended range of up to 250 meters*
*Fixed link speed at 10 Mbps
Limited to 802.af PDs and cameras
- *Extended range excels long range installation but the actual performance may be effected by cabling quality or IP camera’s electrical design. We recommend users to test for IOP before physical deployment. Contact Zyxel for IP camera’s interoperability report.
