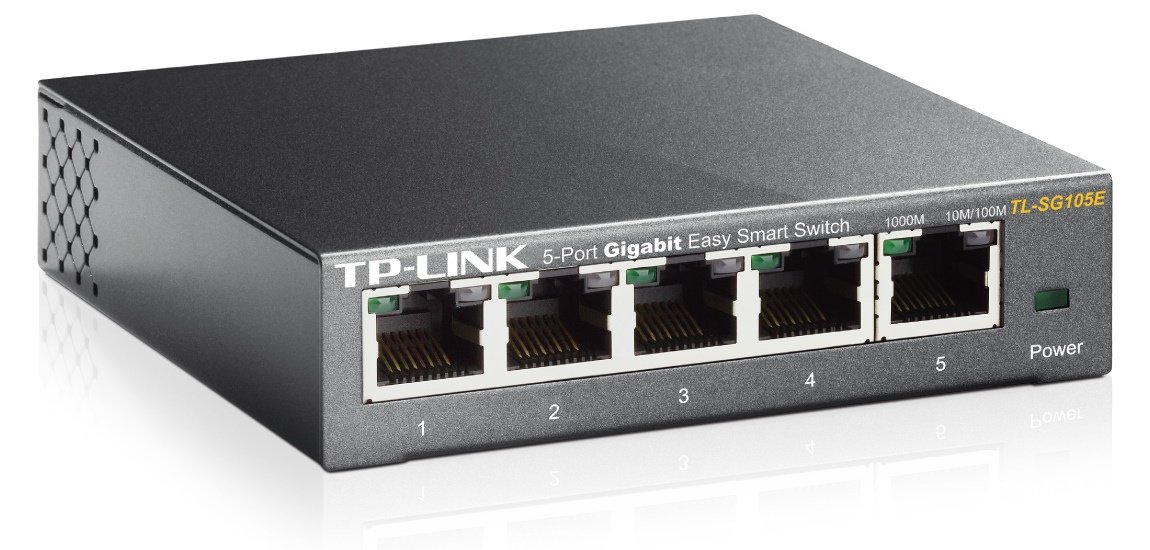

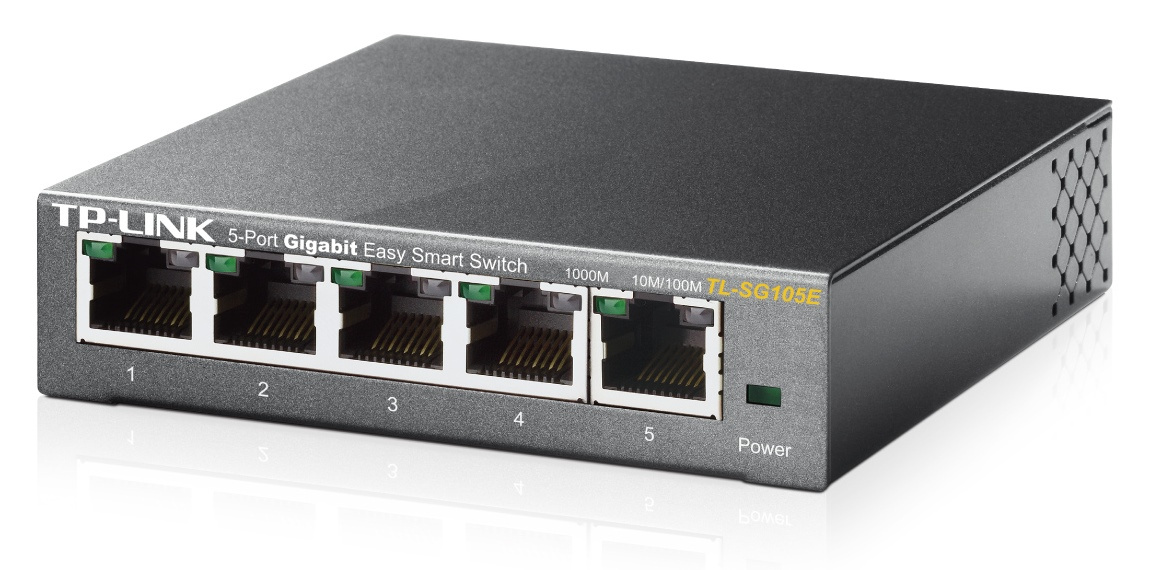

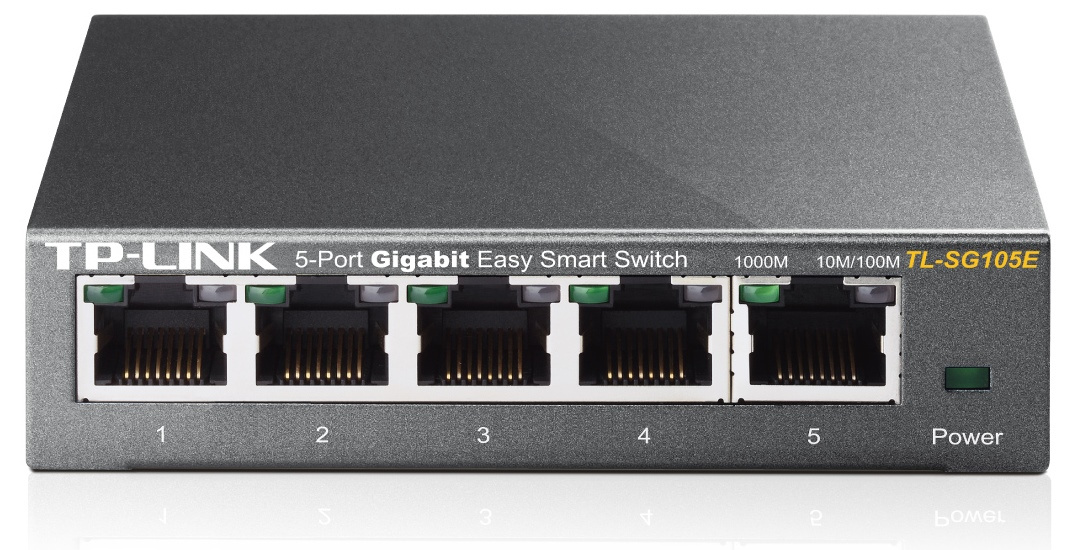

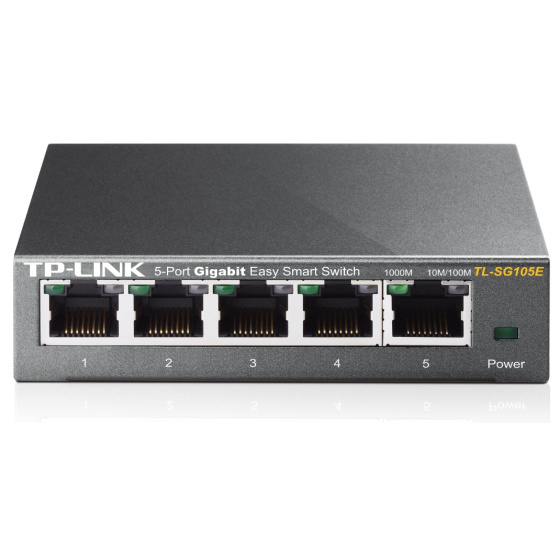

TP-Link TL-SG105E 5-port Gigabit Easy Smart Switch

TP-Link TL-SG105E 5-Port Gigabit Easy Smart Switch

OVERVIEW
* 5 10/100/1000Mbps RJ45 ports
* Provides network monitoring, traffic prioritization and VLAN features
* Innovative energy-efficient technology reduces power output by up to 75%
* Simple network set-up on top of plug-and-play connectivity
* Centrally manage all Easy Smart Switches with Easy Smart Configuration Utility


SPECIFICATIONS
HARDWARE FEATURES
Standards and Protocols
* IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Interface
* 5 10/100/1000Mbps RJ45 Ports
* AUTO Negotiation/AUTO MDI/MDIX

Network Media
* 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
* EIA/TIA-568 100? STP (maximum 100m)
* 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
* EIA/TIA-568 100? STP (maximum 100m)
* 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
* EIA/TIA-568 100? STP (maximum 100m)

Dimensions (W X D X H)
* 100 * 98 *25 mm

Fan Quantity
* Fanless

Power Supply
* 100-240VAC, 50/60Hz
* PERFORMANCE

MAC Address Table
* 8K

Packet Buffer Memory
* 2Mb

Packet Forwarding Rate
* 7.4Mpps

Jumbo Frame
* 16KB

SOFTWARE FEATURES
Quality of Service
* Support Port Based/802.1p Based priority
* Support 4 priority queues
* Rate Limit
* Storm Control

L2 Features
* IGMP Snooping
* Link Aggregation
* Port Mirroring
* Cable Diagnostics
* Loop Prevention

VLAN
* Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
* MTU/Port/Tag VLAN

Transmission Method
* Store-And-Forward

OTHERS
Certification
* FCC, CE, RoHS

Package Contents
* TL-SG105E
* Power Cord
* Installation Guide
* Resource CD
* Rubber Feet

System Requirements
* Microsoft® Windows® XP, Vista™ Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux.

Environment
* Operating Temperature: 0°C~40°C
* Storage Temperature: -40°C~70°C
* Operating Humidity: 10%~90% non-condensing
* Storage Humidity: 5%~90% non-condensing
