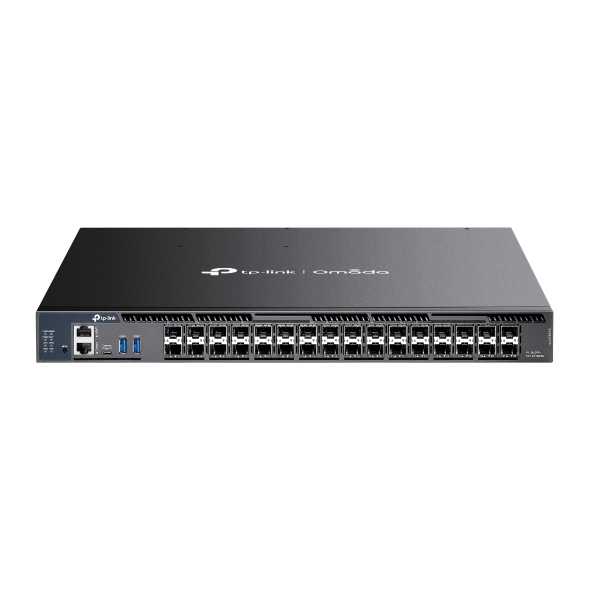

SX6632YF Omada 26x10G stack L3 switch 6x25G Slots
Kód: i54_5172229412Na dotaz
Termín a spôsob doručenia
SX6632YF Omada 26portový stohovatelný managovaný agregační switch L3 10G se 6 sloty 25G Funkce *26×prečítajte si viac
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodnené balenie
Množstevné zľavy
/envelope.svg){kind=small}
Váš dotaz
/bell.svg){kind=small}
Sledovat
/share.svg){kind=small}
Zdieľať
Parametre
Výrobca:
Kód:
i54_5172229412
EAN:
4895252501315
Záruka:
60
Stav:
Počet LAN portů:
32
Rychlost LAN max.:
10 Gbps
Počet LAN portů:
32
Počet SFP portů:
32
Počet SFP+ portů:
24
Počet SFP28 portů:
4
Management:
Managed switch
Provedení switche:
Do racku
Fanless switch:
Ne
Optika:
Ano
POE:
Ne
PoE:
Ne
PoE In standard:
Nepodporuje
PoE Out standard:
Nepodporuje
PoE power budget (W):
Nevztahuje se
Popis SX6632YF Omada 26x10G stack L3 switch 6x25G Slots
SX6632YF Omada 26portový stohovatelný managovaný agregační switch L3 10G se 6 sloty 25G
Funkce *26× 10G slotů SFP+ a 6× 25G slotů SFP28 *Přepínací kapacita 820 Gb/s *Fyzické stohování pro vestavěnou redundanci a výkonnost *Funkce L3: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay *Strategie zabezpečení: ACL, zabezpečení portů, DoS Defend, 802.1X *Vysoká dostupnost díky dvěma napájecím zdrojům vyměnitelným za provozu*, VRRP a ERPS *Centralizovaná správa cloudu prostřednictvím kontroléru Omada SDN *Samostatná správa přes web, CLI, SNMP a RMON
Specifikace
Hardware Interface *6× 10/25G SFP28 Slots *26× 1/10G SFP+ Slots *2× USB 3.0 Ports *1× RJ45 Console Port *1× USB Type C Console Port *1× RJ45 Management Port Fan Quantity *Four field-replaceable and hot-swappable fans (N+1 redundant) Physical Security Lock *Yes Power Supply *Two field-replaceable and hot-swappable redundant power supplies (100–240 VAC, 50/60 Hz) Power Consumption *86.7 W (110 V/60 Hz) Dimensions ( W x D x H ) *440 × 380 × 44 mm Mounting *Rack Mountable Max Heat Dissipation *295.85 BTU/hr (110 V/60 Hz) Výkon Switching Capacity *820 Gbps Stacking *Stacking Number: 8 *Stacking Port: 25G SFP28 *Stack Bandwidth: Up to 300 Gbps (6 stack ports) Packet Forwarding Rate *610.1 Mpps MAC Address Table *128 K Packet Buffer Memory *8 MB Jumbo Frame *9 KB Software Quality of Service -Class of Service *8 Queues of Priority *Port Priority *IEEE 802.1p Priority *DSCP Priority *Queue Min-Bandwidth *Schedule Mode (SP, WRR, SP+WRR) -Bandwidth Control *Rate Limit *Strom Control -User-Defined OUI -Smoother Performance -Action for Flows *QoS remark (802.1P Remark, DSCP Remark) L3 Features -IP Interfaces: *IPv4: Max 256, IPv6: Max 256 -Static Routing *IPv4: Max 2,048, IPv6: Max 1,024 -Host Route Table: Max 15,300 entries -RIP: Version v1/v2, Max 102,400 *RIPng: Max 51,200 -OSPF: Version v2/v3; *v2: Max 102,400 *v3: Max 51,200 -VRRP: Version v2/v3, Max 64 groups -ECMP: 256 entries, max 32 ECMP Nexhops per Destination -Static ARP *1,024 static entries -Dynamic ARP *24,576 dynamic entries -Proxy ARP -DHCP Server: *Max 8K IP Pools *Max 1,000 Manual Binding Entries -DHCP Relay: *Relayed Interface *Relayed VLAN L2 and L2+ Features -Link Aggregation *Static link aggregation *802.3ad LACP *Up to 8 ports per group *Up to 120 LAG Groups -Spanning Tree Protocol *802.1d STP *802.1w RSTP *802.1s MSTP *Up to 64 MSTI instances (4 at Omada controller mode) *STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect -Loopback Detection *Port based *VLAN based -Flow Control *802.3x Flow Control -Supports 4,093 IGMP groups -ERPS: Up to 64 ERPS rings -Mirroring *Port Mirroring *CPU Mirroring *One-to-One *Many-to-One *Tx/Rx/Both -RSPAN -Mac Address *MAC Address Table *Static MAC: Max 128 entries *Dynamic MAC Address: Max 128K entries *Filtering MAC Address: Max 128 entries *Virtual MAC (only supported in standalone mode) Advanced Features -Automatic Device Discovery -Batch Configuration -Batch Firmware Upgrading -Intelligent Network Monitoring -Abnormal Event Warnings -Unified Configuration -Reboot Schedule ISP Features -802.3ah Ethernet Link OAM -L2PT (Layer 2 Protocol Tunneling) -Device Link Detect Protocol (DLDP) -DDM -sFlow -PPPoE ID Insertion VLAN -VLAN Group (802.1q VLAN) *Max 4K VLAN Groups -802.1Q Tagged VLAN -MAC VLAN entries: 200 -Multicast VLAN -Management VLAN -VLAN VPN (QinQ): Max 256 entries -GVRP -Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries -VLAN VPN *VLAN Mapping *VLAN Replace -Voice VLAN -Private VLAN Security -Port Isolation -CPU-Deffend -ARP Inspection (Dynamic ARP Inspection) -DoS Defend -IP-MAC-Port Binding *1,024 Entries *DHCP Snooping *ARP Inspection *IPv4 Source Guard -IPv6-MAC *Port Binding *1,024 Entries *DHCPv6 Snooping *ND Detection *ND Snooping *IPv6 Source Guard -DHCP Filter -Static/Dynamic Port Security *Up to 64 MAC addresses per port -Broadcast/Multicast/Unknown-unicast Storm Control *kbps/ratio control mode -802.1X *Port base authentication *Mac base authentication *VLAN Assignment *MAB *Guest VLAN *Support RADIUS authentication and accountability *AAA (including TACACS+) -Secure web management through HTTPS with SSLv3/TLS 1.2 -Secure Command Line Interface (CLI) management with SSHv2 -IP/Port/MAC based access control Management Management Features -Web-based GUI -Command Line Interface (CLI) through console port, telnet -SNMPv1/v2c/v3 *Trap/Inform *RMON (1, 2, 3, 9 groups) -SDM Template -DHCP/BOOTP Client -802.1ab LLDP/LLDP-MED -DHCP Auto Install -Dual Image, Dual Configuration -CPU Monitoring -Cable Diagnostics -Password Recovery -SNTP -System LogDokumenty
