SG6428X 24G stack L3 4x10G SFP+ switch
Kód: i54_5172229416Skladom1ks
Termín a spôsob doručenia
SG6428X Omada 24portový gigabitový stohovatelný spravovaný switch L3 se 4 sloty 10G Funkce *24× prečítajte si viac
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodnené balenie
Množstevné zľavy
/envelope.svg){kind=small}
Váš dotaz
/bell.svg){kind=small}
Sledovat
/share.svg){kind=small}
Zdieľať
Parametre
Výrobca:
Kód:
i54_5172229416
EAN:
4895252501476
Záruka:
60
Stav:
Počet LAN portů:
24
Rychlost LAN max.:
10 Gbps
Počet LAN portů:
24
Počet SFP+ portů:
4
Management:
Managed switch
Provedení switche:
Do racku
Fanless switch:
Ne
Optika:
Ano
POE:
Ne
PoE:
Ne
PoE In standard:
Nepodporuje
PoE Out standard:
Nepodporuje
PoE power budget (W):
Nevztahuje se
Popis SG6428X 24G stack L3 4x10G SFP+ switch

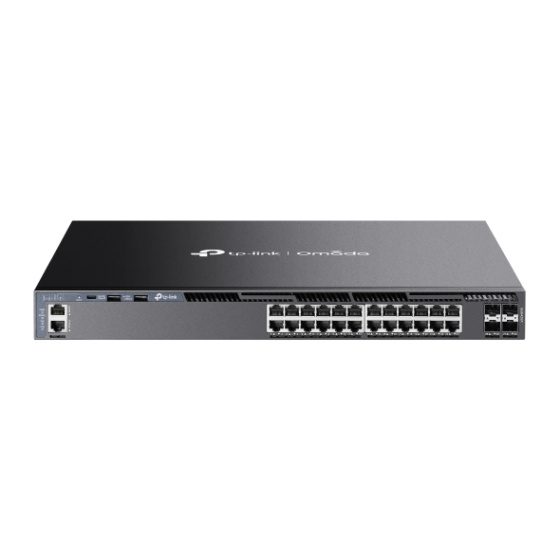

SG6428X
Omada 24portový gigabitový stohovatelný spravovaný switch L3 se 4 sloty 10G
Funkce
*24× gigabitových portů RJ45 a 4× 10 Gb/s slotů SFP+
*Přepínací kapacita 128 Gb/s na jednotku
*Fyzické stohování pro integrovanou redundanci a výkonnost
*Funkce L3: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
*Strategie zabezpečení: ACL, zabezpečení portů, DoS Defend, 802.1X
*Vysoká dostupnost díky dvěma interním pevným zdrojům napájení, VRRP a ERPS
*Centralizovaná správa cloudu prostřednictvím řadiče Omada SDN
*Samostatná správa přes web, CLI, SNMP a RMON
Specifikace
Hardware
Interface
*24× 10/100/1000 Mbps RJ45 Ports
*4× 10G SFP+ Slots
*2× USB 2.0 Ports
*1× RJ45 Console Port
*1× USB Type-C Console Port
*1× RJ45 Management Port
Fan Quantity
*Four Internal Fixed Fans
Power Supply
*Two Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz)
Max. Power Consumption
*28.4 W (220 V/50 Hz)
Dimensions ( W x D x H )
*440 × 380 × 44 mm
Mounting
*Rack Mountable
Max Heat Dissipation
*96.91 BTU/hr (220 V/50 Hz)
Výkon
Switching Capacity
*128 Gbps per Unit
Stacking
*Stacking Number: 8
*Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports)
*Stack Bandwidth: Up to 80 Gbps (4 stack ports)
Packet Forwarding Rate
*95.2 Mpps
MAC Address Table
*32 K
Packet Buffer Memory
*3 MB
Jumbo Frame
*9 KB
Software
Quality of Service
-Class of Service
*8 Queues of Priority
*Port Priority
*IEEE 802.1p Priority
*DSCP Priority
*Queue Min-Bandwidth
*Schedule Mode (SP, WRR, SP+WRR)
-Bandwidth Control
*Rate Limit
*Storm Control
-Voice VLAN
-User-Defined OUI
-Smoother Performance
-Action for Flows
*QoS remark (802.1P Remark, DSCP Remark)
L3 Features
-IP Interfaces:
*IPv4: Max 256, IPv6: Max 256
-Static Routing
*Max 1,024, IPv6: Max 512
-Host Route Table: Max 6,100 entries
-RIP: Version v1/v2, Max 8,190
-OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097
-VRRP: Version v2/v3, Max 64 groups
-ECMP: 256 entries, max 32 ECMP Nexthops per Destination
-Static ARP: 512 static entries
-Dynamic ARP: 7,680 dynamic entries
-Proxy ARP
-DHCP Server:
*Max 8K IP Pools
*Max 1,000 Manual Binding Entries
-DHCP Relay:
*Relayed Interface
*Relayed VLAN
L2 and L2+ Features
-Link Aggregation
-Spanning Tree Protocol
-Port-based and VLAN-based Loopback Detection
-802.3x Flow Control
-Supports 2,048 IGMP groups
-ERPS
-Mirroring
-RSPAN
-MAC Address Table
-PIM-DM (IPv4)
-Multicast
*IGMP Snooping
*MLD Snooping
*L2 Multicast Table
*Fast Leave
*Multicast VLAN Registration (MVR)
*Static Multicast IP
*Multicast Filtering
Advanced Features
-Automatic Device Discovery
-Batch Configuration
-Batch Firmware Upgrading
-Intelligent Network Monitoring
-Abnormal Event Warnings
-Unified Configuration
-Reboot Schedule
ISP Features
-802.3ah Ethernet Link OAM
-L2PT (Layer 2 Protocol Tunneling)
-Device Link Detect Protocol (DLDP)
-DDM
-sFlow
-PPPoE ID Insertion
VLAN
-Max 4K VLAN Group (802.1q VLAN)
-802.1Q Tagged VLAN
-MAC VLAN Entries: 200
-Multicast VLAN
-Management VLAN
-VLAN VPN (QinQ): Max 256 entries
-GVRP
-Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
-VLAN VPN
-Voice VLAN
-Private VLAN
Security
-Port Isolation
-CPU-Deffend
-ARP Inspection (Dynamic ARP Inspection)
-DoS Defend
-IP-MAC-Port Binding
*1,024 Entries
*DHCP Snooping
*ARP Inspection
*IPv4 Source Guard
-IPv6-MAC
*Port Binding
*1,024 Entries
*DHCPv6 Snooping
*ND Detection
*ND Snooping
*IPv6 Source Guard
-DHCP Filter
-Static/Dynamic Port Security
*Up to 64 MAC addresses per port
-Broadcast/Multicast/Unknown-unicast Storm Control
*kbps/ratio control mode
-802.1X
*Port base authentication
*Mac base authentication
*VLAN Assignment
*MAB
*Guest VLAN
*RADIUS authentication and accountability support
-AAA (including TACACS+)
-Secure web management through HTTPS with SSLv3/TLS 1.2
-Secure Command Line Interface (CLI) management with SSHv2
-IP/Port/MAC-based access control
Management
Management Features
-Web-based GUI
-Command Line Interface (CLI) through console port, telnet
-SNMPv1/v2c/v3
*Trap/Inform
*RMON (1, 2, 3, 9 groups)
-SDM Template
-DHCP/BOOTP Client
-802.1ab LLDP/LLDP-MED
-DHCP Auto Install
-Dual Image, Dual Configuration
-CPU Monitoring
-Cable Diagnostics
-Password Recovery
-SNTP
-System Log
-EEE
