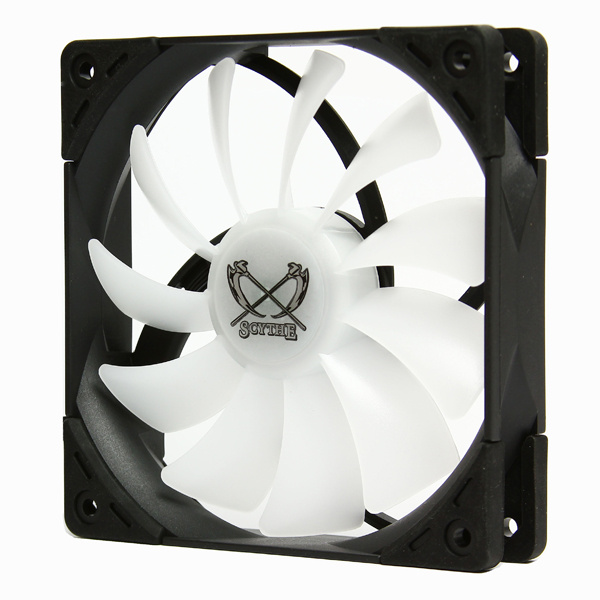

SCYTHE SU1225FD12LR-RD Scythe Kaze Flex RGB 120mm
Kód: i54_201063751Skladom1ks
Termín a spôsob doručenia
Kaze Flex 120 RGBSérie Kaze Flex RGB kombinuje oceněnou technologii fanoušků Kaze Flex s optickými kprečítajte si viac
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodnené balenie
Množstevné zľavy
/envelope.svg){kind=small}
Váš dotaz
/bell.svg){kind=small}
Sledovat
/share.svg){kind=small}
Zdieľať
Parametre
Výrobca:
Kód:
i54_201063751
EAN:
4571225056869
Záruka:
24
Stav:
Průměr ventilátoru:
120
Počet kusů v balení:
1
Podsvícení:
RGB
Popis SCYTHE SU1225FD12LR-RD Scythe Kaze Flex RGB 120mm
Kaze Flex 120 RGB
Série Kaze Flex RGB kombinuje oceněnou technologii fanoušků Kaze Flex s optickými kontrolami a LED diodami RGB. Celočerný rám a oddělovače zdůrazňují průsvitné lopatky ventilátoru osvětlené osmi LED diodami. 4kolíkový konektor 12 V RGB umožňuje regulaci pomocí standardních řadičů RGB. Díky další průchozí zástrčce lze několik ventilátorů spojovat dohromady. Vynikající výkon řady Kaze Flex zůstává nedotčený. Uzavřené těsnění FDB zajišťuje životnost více než 120 000 hodin. Tři úrovně výkonu nabízejí individuální řešení pro každou aplikaci. K dispozici je také verze řízená PWM.
The Kaze Flex RGB series combines the award-winning technology of the Kaze Flex fans with an optical revision and RGB LEDs. The all-black frame and decouplers emphasize the translucent fan blades illuminated by eight LEDs. A 4-pin 12V RGB connector allows regulation by standard RGB controllers. Thanks to an additional pass-through plug, several fans can be chained together. The outstanding performance of the Kaze Flex range remains untouched. The Sealed Precision FDB bearing ensures a service life of more than 120 000 hours. Three performance levels offer an individual solution for every application. A PWM controlled version is also available.
Model Name:
Kaze Flex 120 RGB Case Fan
Model-Nr.:
SU1225FD12LR-RD
SU1225FD12MR-RH
SU1225FD12HR-RN
Dimensions:
120 x 120 x 27 mm
Fan Speed:
800 rpm
1.200 rpm
1.800 rpm
Noise Level:
14,5 dBA / 24,9 dBA / 35,8 dBA
Airflow:
43,03 CFM = 73,1 m3/h
51,17 CFM = 86,9 m3/h
79,76 CFM = 135,5 m3/h
Static Pressure:
0,49 mmH2O / 4,8 Pa
1,05 mmH2O / 10,03 Pa
2,40 mmH2O / 25,3 Pa
Voltage:
12 V
Amperage:
0,09 A / 0,13 A / 0,40 A
Amperage LED:
0,40 A / 0,40 A / 0,40 A
Power Input:
1,08 W / 1,56 W / 5,52 W
Weight:
140 g
Connector:
3-pin
Accessory:
Molex-Adaptor, 4x screws,
Bearing:
Sealed Precision Fluid Bearing
MTTF:
120.000 Hours (25°C)
RGB illumination
Eight RGB LEDs arranged in a ring around the fan motor generate a consistent and powerful illumination of the translucent fan blades. The LEDs are operated by a standard 4-Pin RGB cable that can be directly controlled by the common RGB system of various motherboard manufacturers. Compatible, amoung others, are systems like ASUSTM Aurora Sync, ASRockTM RGB LED, MSITM Mystic Light Sync and GigabyteTM RGB Fusion.
Sealed Precision FDB
In order to guarantee an exceptionally high level of stability and durability, the fans from the Kaze Flex Series are equipped with a self-contained fluid dynamic bearing (Sealed Precision FDB). The bearing and the spindle are made entirely of high quality compressed metal and lubricated by a special oil film resistant to temperatures of up to 250°C / 480°F. This drastically reduces friction, ensuring smooth operation and minimized wear, which results in an average life-span of 120 000 hours.
Integrated Anti-Vibration Sytem
The Kaze Flex fan series is equipped with vibration- and shock absorbing rubber pads which cover the tunnelless mounting holes. These decouplers effectively eliminate possible vibrations and allow low-noise operation.
Versatile Applications
The Kaze Flex RGB fan series is available in three performance levels and offers an individual solution for every application. Alternatively, a RGB PWM version is also available.
Other features
The Kaze Flex 120 RGB comes with a 50 cm / 19.68 inch long sleeved 3-Pin cable as well as a standard 12V 4-Pin cable for RGB control with an additional pass-through plug. This allows easy installation in almost any system configuraton. An adaptor for direct connection to the power supply is also included.
Série Kaze Flex RGB kombinuje oceněnou technologii fanoušků Kaze Flex s optickými kontrolami a LED diodami RGB. Celočerný rám a oddělovače zdůrazňují průsvitné lopatky ventilátoru osvětlené osmi LED diodami. 4kolíkový konektor 12 V RGB umožňuje regulaci pomocí standardních řadičů RGB. Díky další průchozí zástrčce lze několik ventilátorů spojovat dohromady. Vynikající výkon řady Kaze Flex zůstává nedotčený. Uzavřené těsnění FDB zajišťuje životnost více než 120 000 hodin. Tři úrovně výkonu nabízejí individuální řešení pro každou aplikaci. K dispozici je také verze řízená PWM.
The Kaze Flex RGB series combines the award-winning technology of the Kaze Flex fans with an optical revision and RGB LEDs. The all-black frame and decouplers emphasize the translucent fan blades illuminated by eight LEDs. A 4-pin 12V RGB connector allows regulation by standard RGB controllers. Thanks to an additional pass-through plug, several fans can be chained together. The outstanding performance of the Kaze Flex range remains untouched. The Sealed Precision FDB bearing ensures a service life of more than 120 000 hours. Three performance levels offer an individual solution for every application. A PWM controlled version is also available.
Model Name:
Kaze Flex 120 RGB Case Fan
Model-Nr.:
SU1225FD12LR-RD
SU1225FD12MR-RH
SU1225FD12HR-RN
Dimensions:
120 x 120 x 27 mm
Fan Speed:
800 rpm
1.200 rpm
1.800 rpm
Noise Level:
14,5 dBA / 24,9 dBA / 35,8 dBA
Airflow:
43,03 CFM = 73,1 m3/h
51,17 CFM = 86,9 m3/h
79,76 CFM = 135,5 m3/h
Static Pressure:
0,49 mmH2O / 4,8 Pa
1,05 mmH2O / 10,03 Pa
2,40 mmH2O / 25,3 Pa
Voltage:
12 V
Amperage:
0,09 A / 0,13 A / 0,40 A
Amperage LED:
0,40 A / 0,40 A / 0,40 A
Power Input:
1,08 W / 1,56 W / 5,52 W
Weight:
140 g
Connector:
3-pin
Accessory:
Molex-Adaptor, 4x screws,
Bearing:
Sealed Precision Fluid Bearing
MTTF:
120.000 Hours (25°C)
RGB illumination
Eight RGB LEDs arranged in a ring around the fan motor generate a consistent and powerful illumination of the translucent fan blades. The LEDs are operated by a standard 4-Pin RGB cable that can be directly controlled by the common RGB system of various motherboard manufacturers. Compatible, amoung others, are systems like ASUSTM Aurora Sync, ASRockTM RGB LED, MSITM Mystic Light Sync and GigabyteTM RGB Fusion.
Sealed Precision FDB
In order to guarantee an exceptionally high level of stability and durability, the fans from the Kaze Flex Series are equipped with a self-contained fluid dynamic bearing (Sealed Precision FDB). The bearing and the spindle are made entirely of high quality compressed metal and lubricated by a special oil film resistant to temperatures of up to 250°C / 480°F. This drastically reduces friction, ensuring smooth operation and minimized wear, which results in an average life-span of 120 000 hours.
Integrated Anti-Vibration Sytem
The Kaze Flex fan series is equipped with vibration- and shock absorbing rubber pads which cover the tunnelless mounting holes. These decouplers effectively eliminate possible vibrations and allow low-noise operation.
Versatile Applications
The Kaze Flex RGB fan series is available in three performance levels and offers an individual solution for every application. Alternatively, a RGB PWM version is also available.
Other features
The Kaze Flex 120 RGB comes with a 50 cm / 19.68 inch long sleeved 3-Pin cable as well as a standard 12V 4-Pin cable for RGB control with an additional pass-through plug. This allows easy installation in almost any system configuraton. An adaptor for direct connection to the power supply is also included.
