GIGABYTE MB Sc LGA1851 B860I AORUS PRO ICE, Intel B860, 2xDDR5, 1xThunderbolt, 1xDP, 1xHDMI, WiFi, Mini-ITX
Kód: 1706076Skladom>5ks
Termín a spôsob doručenia
Formát:Mini-ITX; Chipset:Intel B860; Socket (pätica):Socket 1851; Typ pamäťového modulu:DDR5; Podpora RAID:0, 1; PCI express 16x:1.prečítajte si viac
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodnené balenie
Množstevné zľavy
/envelope.svg){kind=small}
Váš dotaz
/bell.svg){kind=small}
Sledovat
/share.svg){kind=small}
Zdieľať
Parametre
Výrobca:
Kód:
1706076
EAN:
4719331867539
Záruka:
36 Měsíc(ů)
Stav:
Technologie paměti RAM:
DDR5
Socket (patice):
Socket 1851
Formát základní desky:
Mini-ITX
Chipset:
Intel B860
PCI Express x16:
1
Podpora RAID:
1
COM port:
Ne
LPT port:
Ne
3.5mm Jack:
Ano
Bezdrátové připojení:
WiFi + Bluetooth
Pro procesory:
Intel
Počet paměťových slotů:
2
DisplayPort:
1
TPM:
Ano
USB 2:
2
USB 3:
7
M.2 slot:
2
SATA 3:
2
HDMI:
1
Led Header:
Ano
USB C:
2
LAN:
2.5Gbit/s
Počet Thunderbolt:
1
Technológia :
DDR5
Popis GIGABYTE MB Sc LGA1851 B860I AORUS PRO ICE, Intel B860, 2xDDR5, 1xThunderbolt, 1xDP, 1xHDMI, WiFi, Mini-ITX

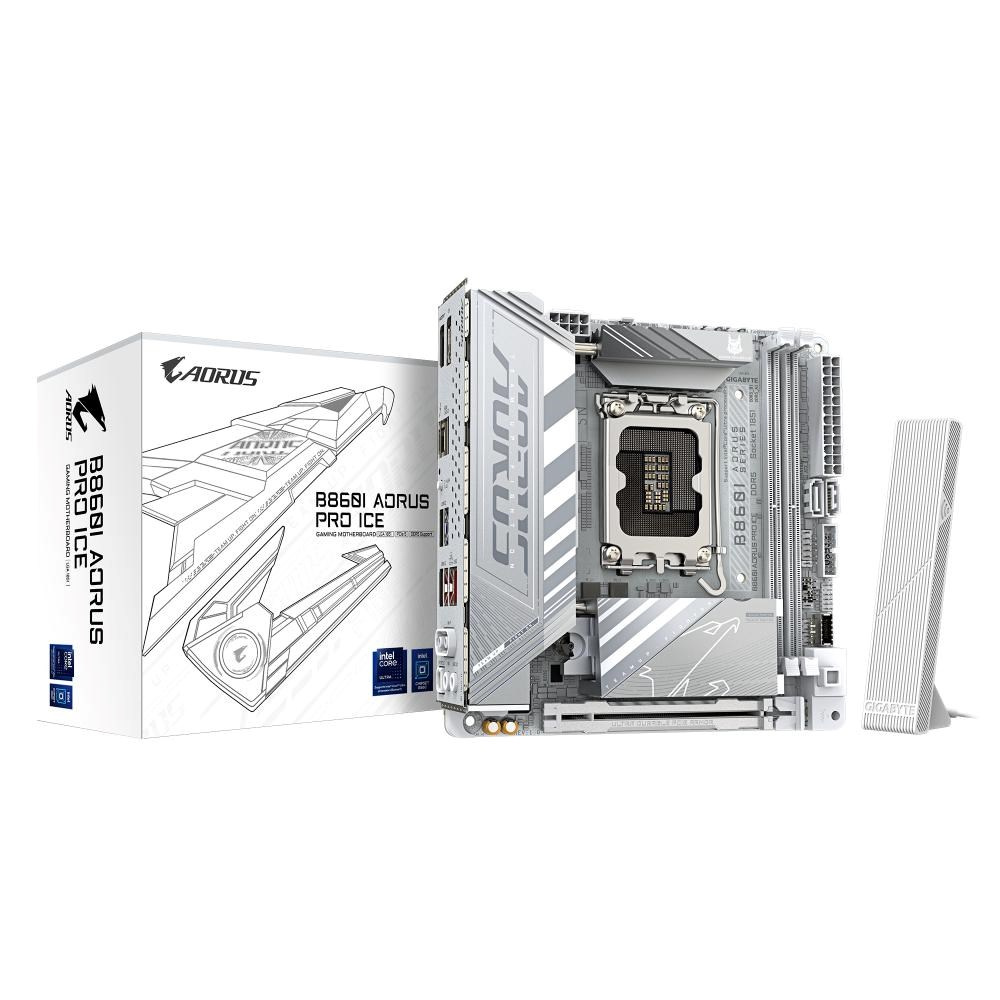

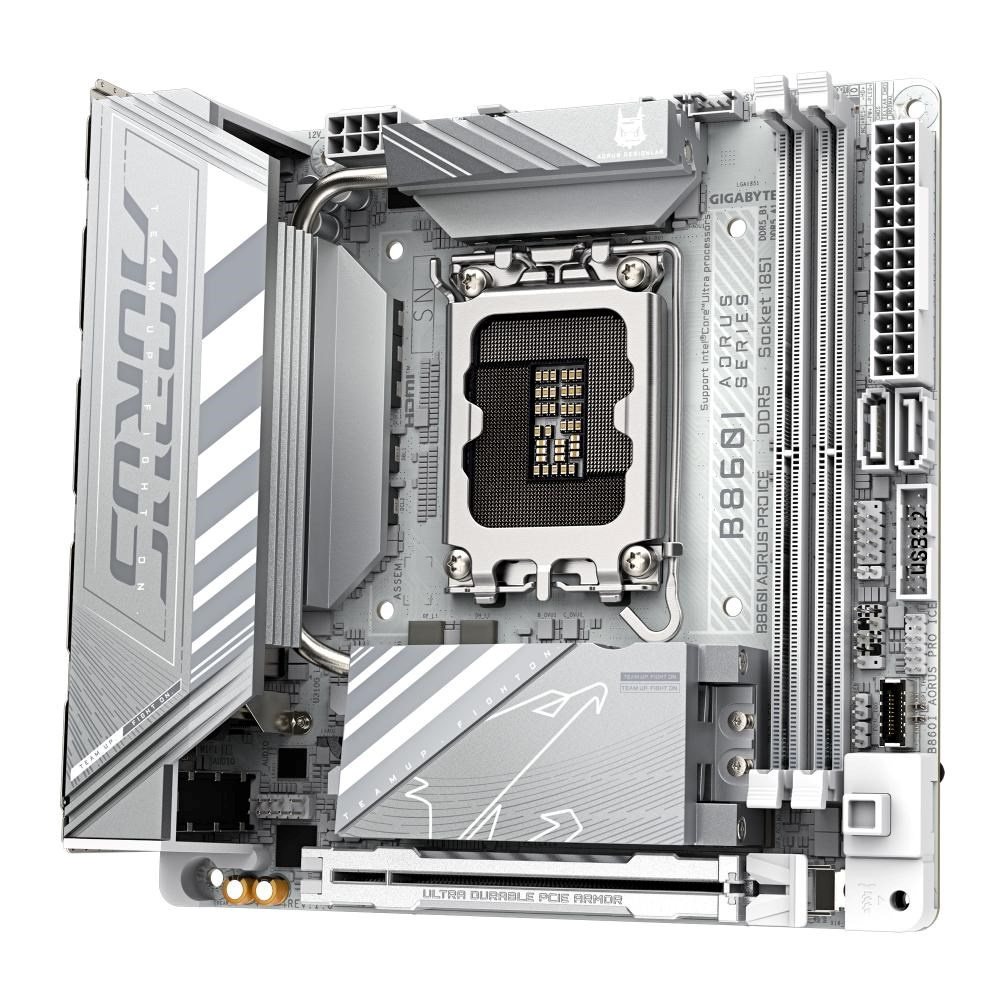

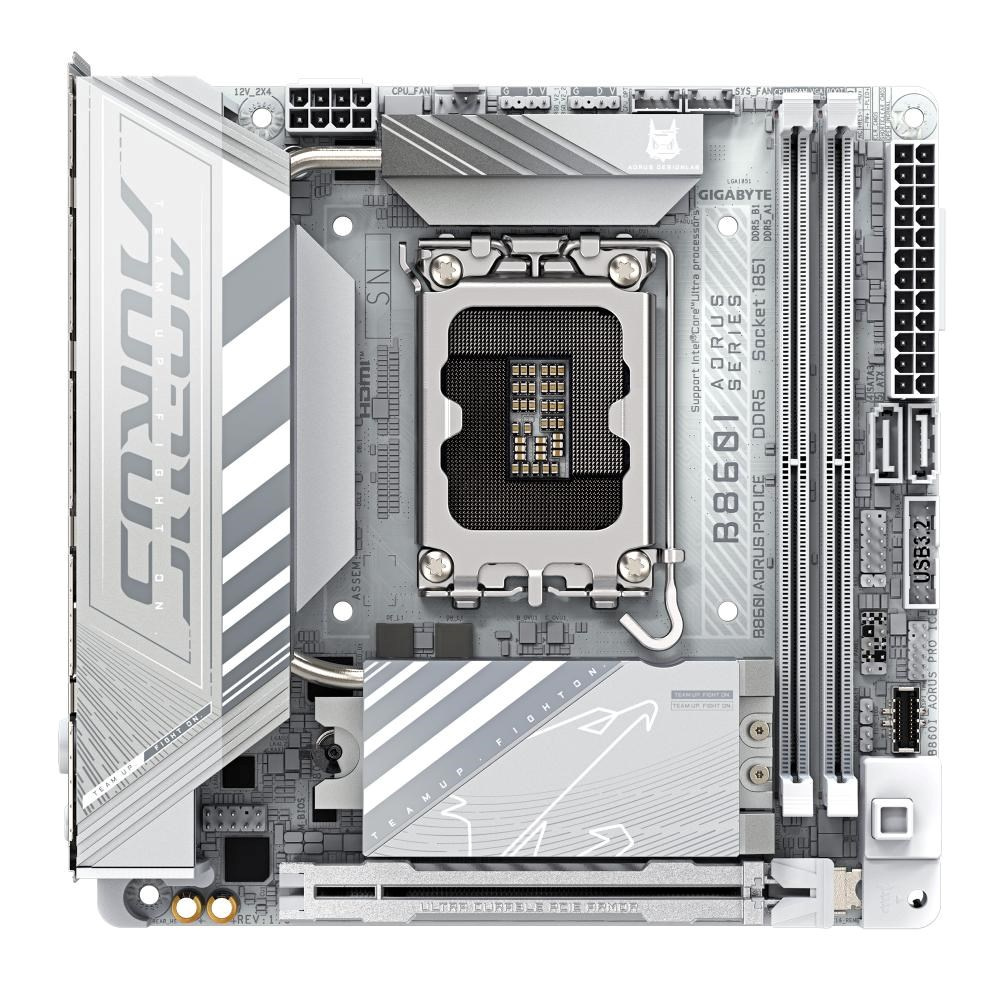

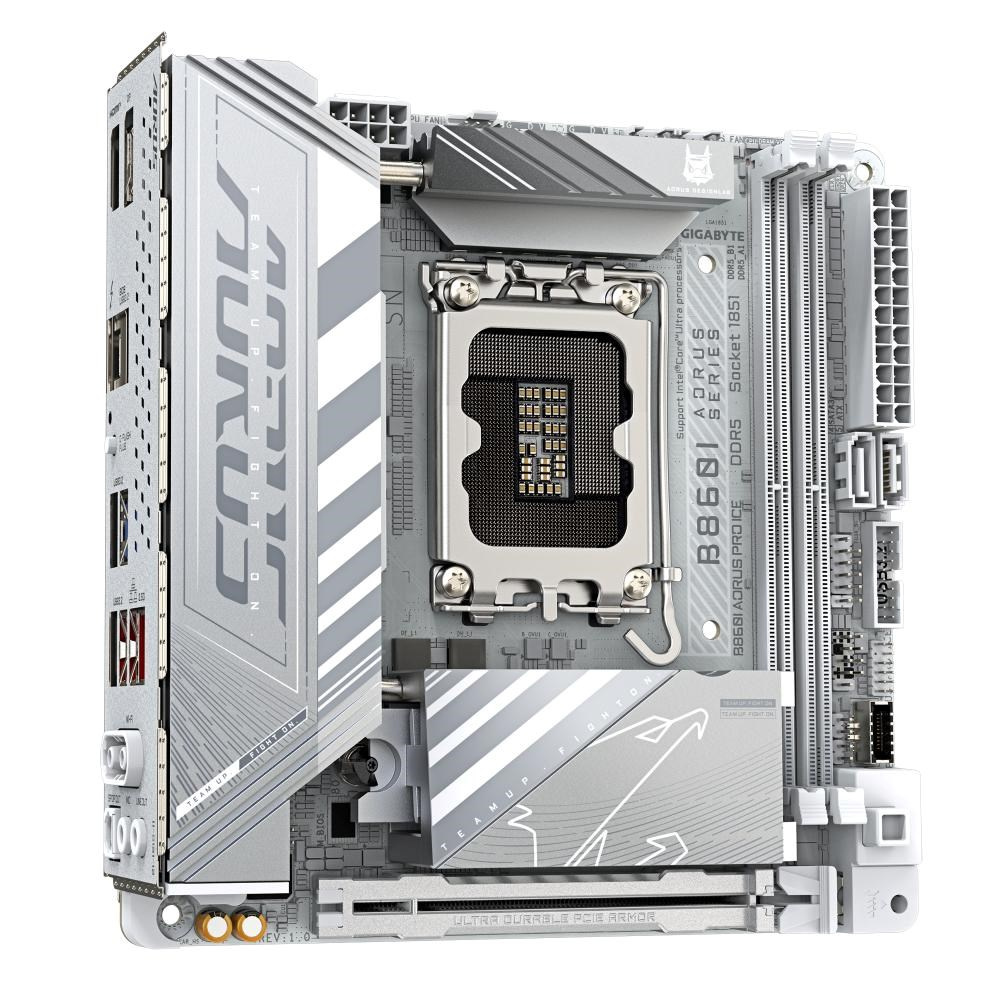

GIGABYTE B860I AORUS PRO ICE
- Supports Intel® Core™ Ultra processors (Series 2)
- Digital 8+1+2 phases VRM solution
- Dual Channel DDR5 : 2*DIMMs with XMP Memory Module Support
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard

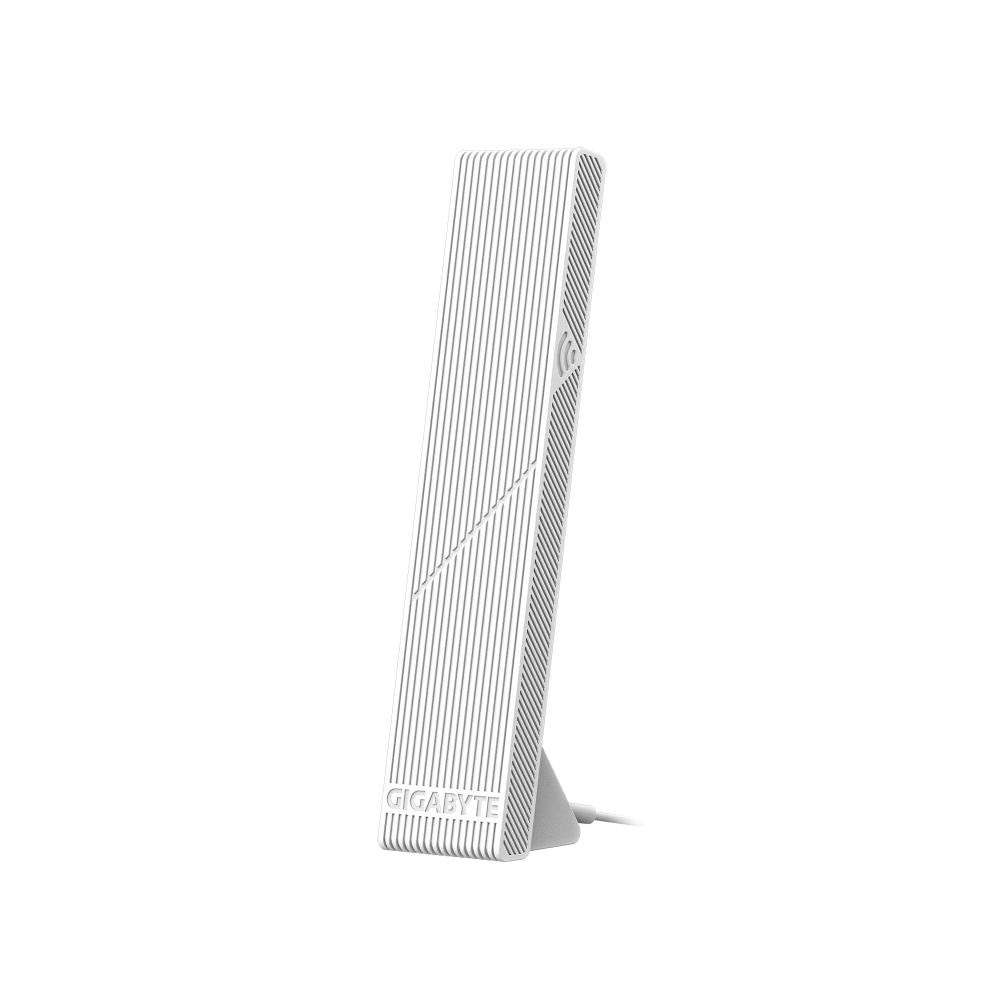

- Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity : ThunderBolt4™ Type-C with DP-Alt, HDMI, DisplayPort
CPU
LGA1851 socket: Support for Intel ® Core™ Ultra Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU
Chipset
Intel ® B860 Express Chipset
Memory
Support for DDR5 9200(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port),supporting DisplayPort and Thunderbolt™ video outputs When a Thunderbolt™ monitor is installed, the maximum resolutionsupported is 5120x2880@60 Hz with 24 bpp (single display output).When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).
* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.)
* Support for DisplayPort 2.1 version and HDCP 2.3
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version and HDCP 2.3
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same time
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.0)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.1)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations
Expansion Slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Storage Interface
CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
Chipset:
- 1 x M.2 connector on the back of the motherboard (Socket 3, M key,type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 2 x SATA 6Gb/s connectors
RAID 0 and RAID 1 support for SATA storage devices
USB
CPU:
- 1 x USB4® USB Type-C® port on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 2 x USB 2.0/1.1 ports available through the internal USB header
Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
2 x addressable RGB Gen2 LED strip headers
2 x M.2 Socket 3 connectors
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset jumper
1 x Clear CMOS jumper

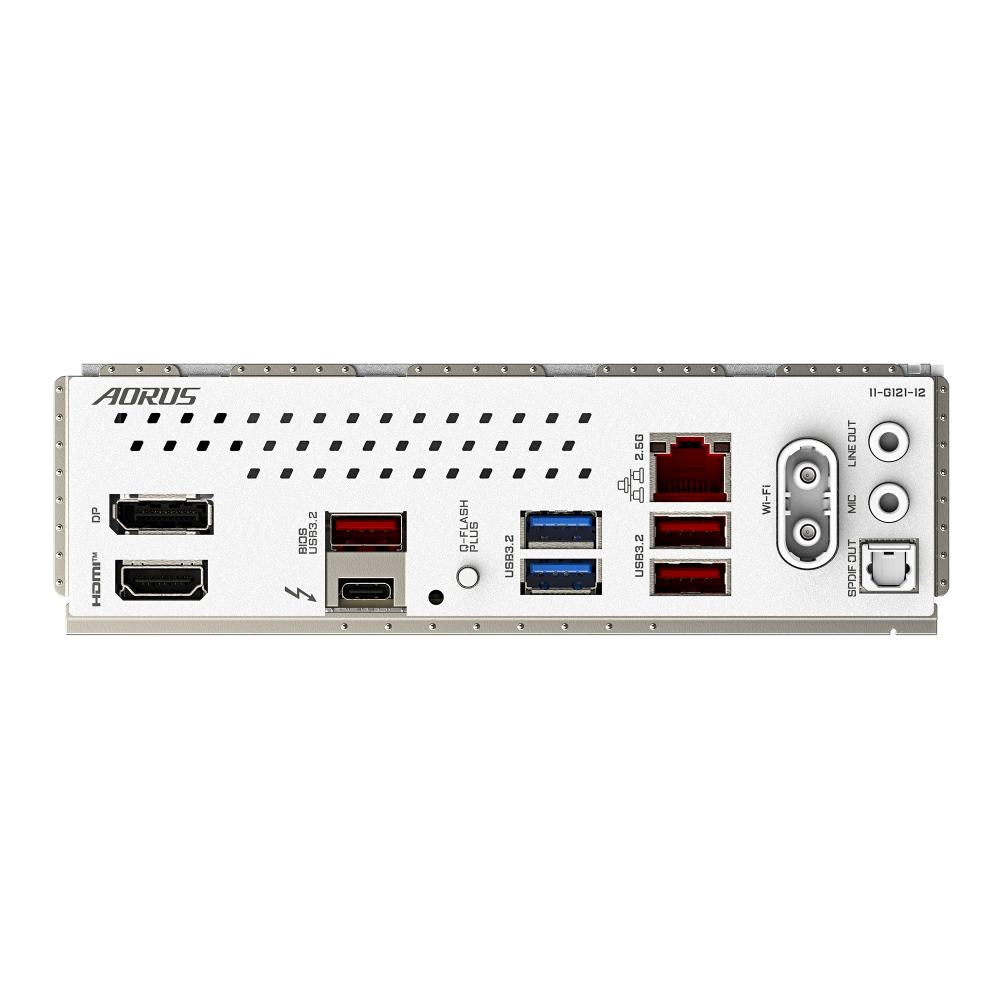

Back Panel Connectors
1 x DisplayPort*
1 x HDMI port*
1 x Intel® Thunderbolt™ 4* connector (USB4® USB Type-C® port)
3 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 3.2 Gen 1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
* Actual support may vary by CPU.
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Form Factor
Mini-ITX Form Factor; 17.0cm x 17.0cm
