BAZAR - GIGABYTE MB Sc LGA1700 B760M DS3H WIFI6E GEN5, Intel B760, 4xDDR5, 2xDP, 1xHDMI, mATX - Po opravě (Komplet)
Kód: 1706328Skladom3ks
Termín a spôsob doručenia
Formát:micro ATX; Chipset:Intel B760, Intel; Socket (pätica):Socket 1700; Typ pamäťového modulu:DDR5; Podpora RAID:0, 1, 5, 10; PCI express 16x:3.prečítajte si viac
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodnené balenie
Množstevné zľavy
/envelope.svg){kind=small}
Váš dotaz
/bell.svg){kind=small}
Sledovat
/share.svg){kind=small}
Zdieľať
Parametre
Výrobca:
Kód:
1706328
EAN:
1706328
Záruka:
6 Měsíc(ů)
Stav:
Bazár
Typ pamäťového modulu:
DDR5
Socket (pätica):
Socket 1700
Formát:
micro ATX
Chipset:
Intel
PCI express 16x:
3
Podpora RAID:
1, 10, 5
COM port:
Ne
LPT port:
Ne
3.5mm Jack:
Ano
Bezdrátové připojení:
WiFi + Bluetooth
Pro procesory:
Intel
Počet paměťových slotů:
4
DisplayPort:
2
TPM:
Ano
USB 2:
6
USB 3:
5
M.2 slot:
2
SATA 3:
4
HDMI:
1
Led Header:
Ano
USB C:
1
LAN:
2.5Gbit/s
Socket:
LGA1700
Technológia :
DDR5
Popis BAZAR - GIGABYTE MB Sc LGA1700 B760M DS3H WIFI6E GEN5, Intel B760, 4xDDR5, 2xDP, 1xHDMI, mATX - Po opravě (Komplet)

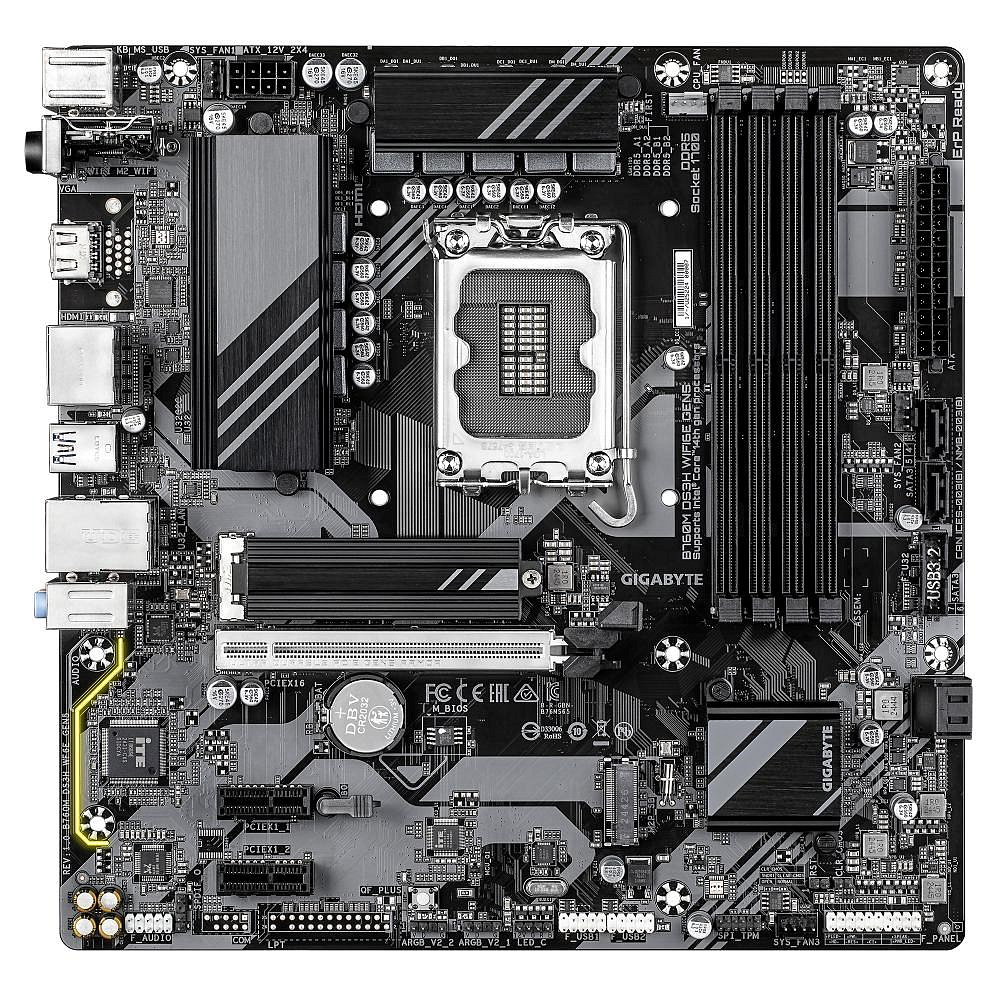

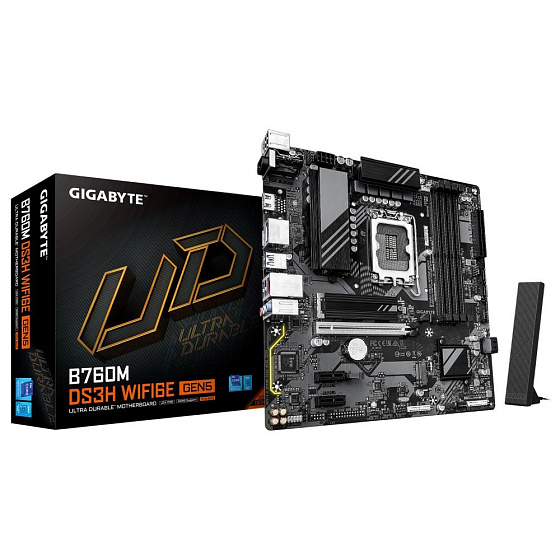

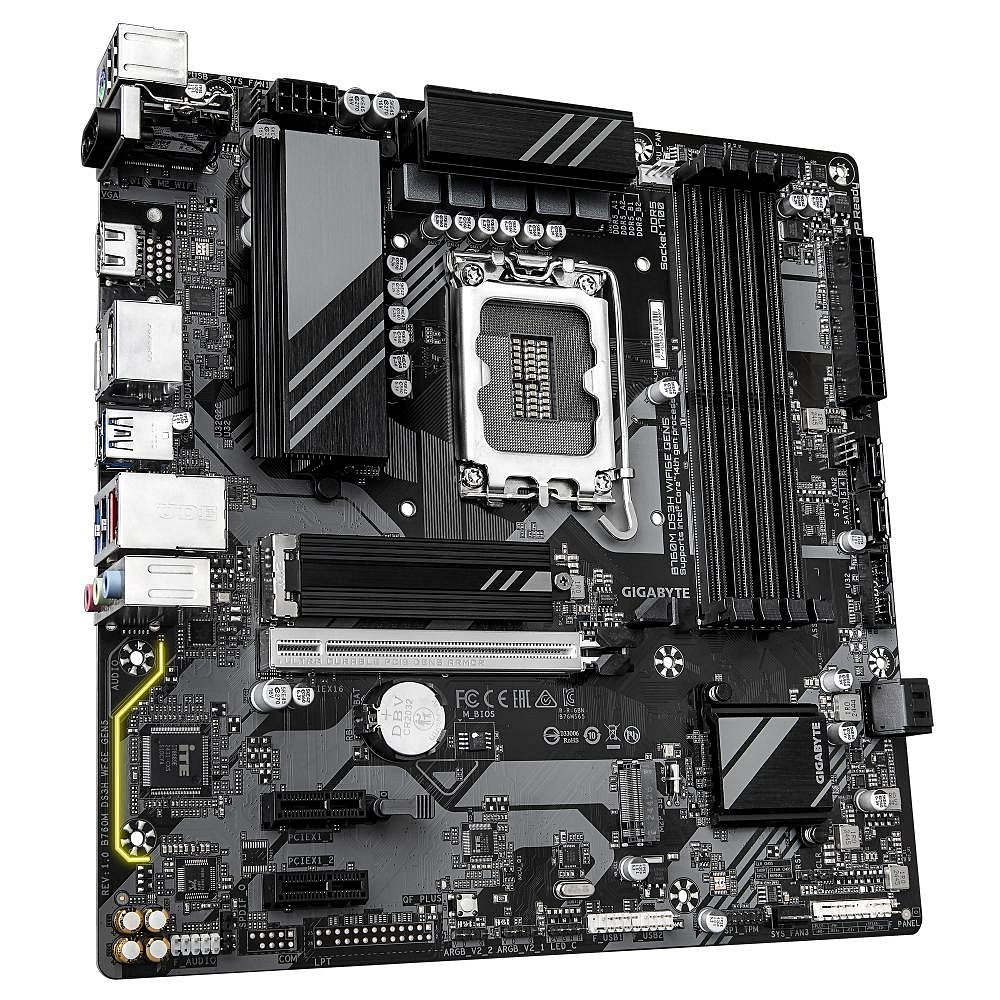

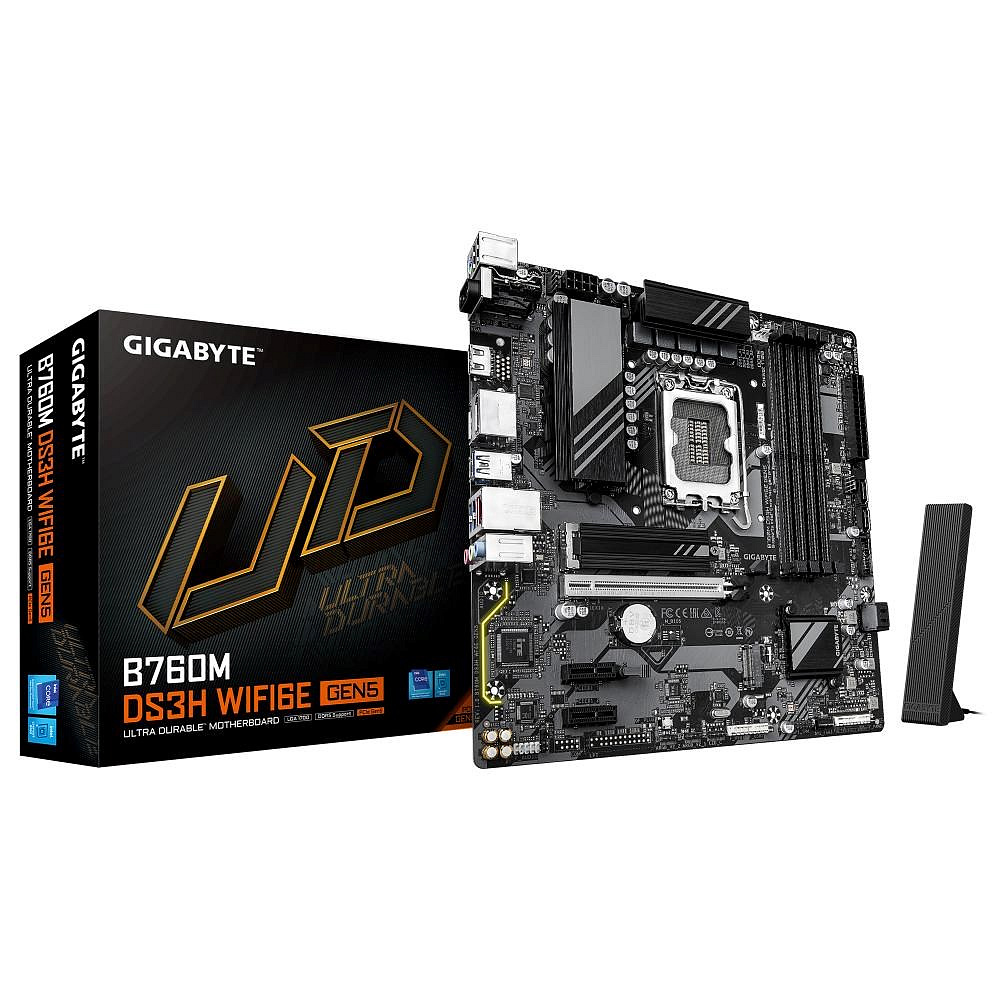

GIGABYTE B760M DS3H WIFI6E GEN5
- PCIe Gen5 Performance : Perfect Sync to Win
- Supports Intel® Core™ 14th/ 13th /12th processors
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal.
- EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design
- PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support
- Unparalleled Performance : Hybrid 6+2+1 Phases VRM Solution
- Dual Channel DDR5 : 4*DIMMs XMP Memory Module Support
- Fast Networks : 2.5 GbE LAN & Wi-Fi 802.11ax
- Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
- Extended Connectivity : Rear USB-C® 10Gb/s, DP, HDMI
- Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU
Chipset
Intel® B760 Express Chipset
Memory
14th and 13th Generation Intel® Core™ i9/i7 Processors:
- Support for DDR5 5600/5200/4800/4400 MT/s memory modules
13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium®Gold and Celeron® Processors:
- Support for DDR5 4800/4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version.
(Graphics specifications may vary depending onCPU support.)
Support for up to triple-display at the same time)
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Intel® Wi-Fi 6E AX210
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Expansion Slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Storage Interface
CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
Chipset:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
- 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

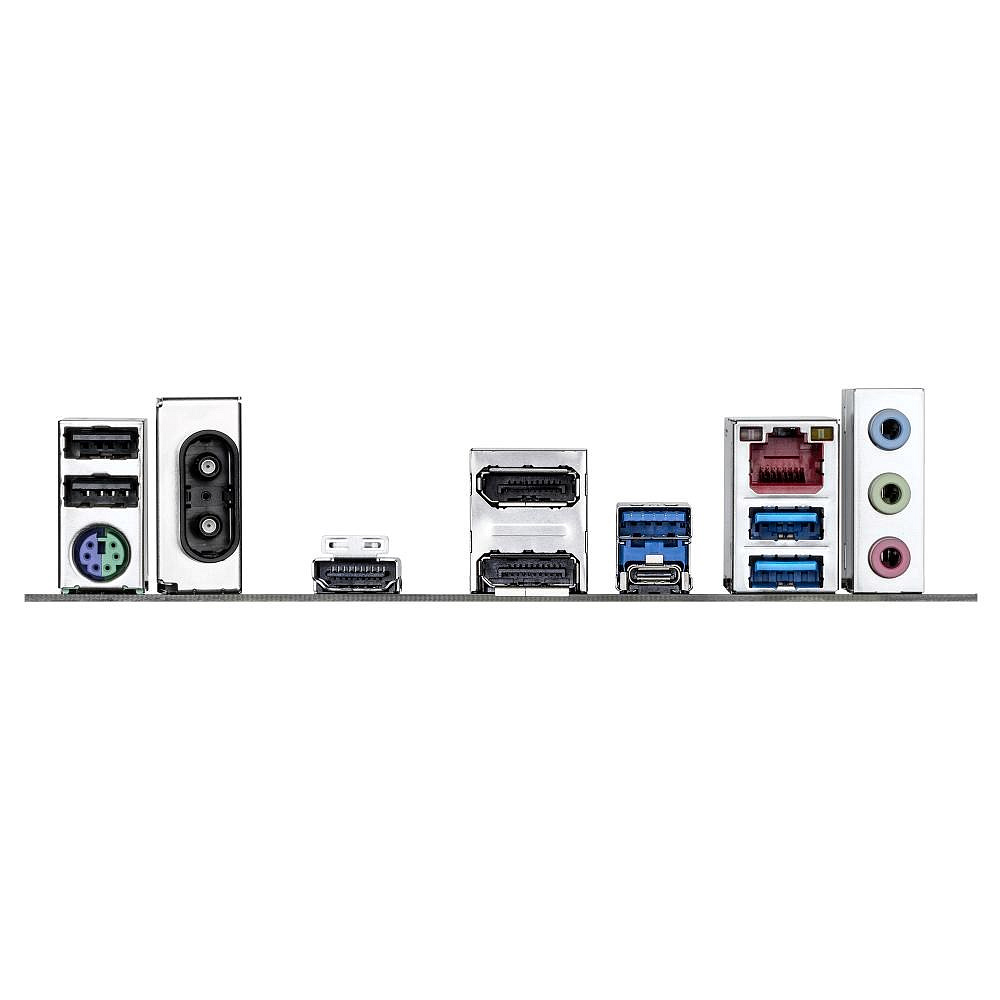

Back Panel I/O Connectors
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x antenna connectors (2T2R)
1 x HDMI port (Note)
2 x DisplayPorts (Note)
3 x USB 3.2 Gen 1 ports
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x RJ-45 port
3 x audio jacks
(Note) Actual support may vary by CPU.
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Bundled Software
Norton® Internet Security (OEM version)
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
