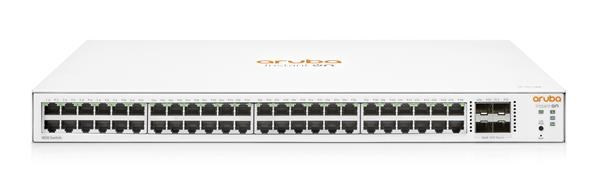

HPE Networking Instant On Switch 48p Gigabit 4p SFP 1830 (JL814)
Kód: 713966Skladom>5ks
Termín a spôsob doručenia
Prevedenie:Desktop, Rack mounted 19"; Technológia:Gigabit Ethernet 1000Mbps, Gigabit ethernet + Gigabit optika, Gigabit optika; Maximálny počet portov:48; Management:SNMP/RMON.prečítajte si viac
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodnené balenie
Množstevné zľavy
/envelope.svg){kind=small}
Váš dotaz
/bell.svg){kind=small}
Sledovat
/share.svg){kind=small}
Zdieľať
Parametre
Výrobca:
Kód:
713966
EAN:
190017519784
Záruka:
99 Doživotní
Stav:
Maximální počet portů:
48
Provedení:
Rack mounted 19", Desktop
Technologie:
Gigabit optika, Gigabit Ethernet 1000Mbps, Gigabit ethernet + Gigabit optika
Management:
SNMP/RMON
Přenosová rychlost LAN (Mb/s):
75
Funkce:
QoS (Quality of service), VLAN (virtual local area network), DHCP snooping, Stohovatelnost, Web management/Smart switch, VPN, L2
Počet SFP portů:
4
Počet portů Combo:
4
Podporované standardy PoE:
Žádný
Ventilátor:
Ano
Maximální počet portů:
48
Počet portů Combo:
4
Počet SFP portů:
4
Popis HPE Networking Instant On Switch 48p Gigabit 4p SFP 1830 (JL814)
HPE Networking Instant On Switch 48p Gigabit 4p SFP 1830 (JL814)
Model: Aruba Instant On 1830
Switch: Ano
Typ Switche: smart-managed
Podporované standardy:
- IEEE 802.1D
- IEEE 802.1Q
- IEEE 802.1ab
- IEEE 802.1p
- IEEE 802.1w
- IEEE 802.3
- IEEE 802.3ab
Kapacita propustnosti: 77.37 Mpps
Optika: Ano
Konektory:
- 48x RJ-45 10/100/1000 ports
- 4x SFP 1GbE ports
PoE: Ne
Rozměry: 443 x 253 x 43 mm (ŠxVxH)
Hmotnost: 3,54 kg
| Aruba Instant On 1830 8G Switch (JL810A) | Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A) | Aruba Instant On 1830 24G 2SFP Switch (JL812A) | Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch (JL813A) | Aruba Instant On 1830 48G 4SFP Switch (JL814A) | Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch (JL815A) | ||||
| I/O ports and slots | |||||||||
| 8 RJ-45 autosensing 10/100/1000 ports IEEE 802.3af Class 3 PD (port 1) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only | 8 RJ-45 autosensing 10/100/1000 ports IEEE 802.3at Class 4 PoE (ports 1-4) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only | 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP 1GbE ports | 24 RJ-45 autosensing 10/100/1000 ports IEEE 802.3at Class 4 PoE (ports 1-12) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP 1GbE ports | 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP 1GbE ports | 48 RJ-45 autosensing 10/100/1000 ports IEEE 802.3at Class 4 PoE (ports 1-24) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP 1GbE ports | ||||
| Physical Characteristics | |||||||||
| Dimensions | 157.0(d) x 173.0(w) x 39.1(h) mm | 195.1(d) x 245.1(w) x 43.9(h) mm | 215.9(d) x 443.0(w) x 43.9(h) mm | 253.0(d) x 443.0(w) x 43.9(h) mm | 253.0(d) x 443.0(w) x 43.9(h) mm | 351.0(d) x 443.0(w) x 43.9(h) mm | |||
| Weight | 1.70 lb (0.77 kg) | 3.40 lb (1.54 kg) | 5.50 lb (2.49 kg) | 7.65 lb (3.47 kg) | 7.80 lb (3.54 kg) | 10.90 lb (4.94 kg) | |||
| Processor and Memory | |||||||||
| ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB | ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB | ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB | ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB | "RM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB | ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB | ||||
| Aruba Instant On 1830 8G Switch (JL810A) | Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A) | Aruba Instant On 1830 24G 2SFP Switch (JL812A) | Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch (JL813A) | Aruba Instant On 1830 48G 4SFP Switch (JL814A) | Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch (JL815A) | ||||||||
| Performance | |||||||||||||
| 100 Mb latency | < 5.2 uSec | < 5.2 uSec | < 5.2 uSec | < 5.2 uSec | < 5.2 uSec | < 5.2 uSec | |||||||
| 1000 Mb latency | < 2.8 uSec | < 2.8 uSec | < 2.8 uSec | < 2.8 uSec | < 2.8 uSec | < 2.8 uSec | |||||||
| 10000 Mb latency | n/a | n/a | n/a | n/a | n/a | n/a | |||||||
| Throughput (Mpps) | 11.90 Mpps | 11.90 Mpps | 38.68 Mpps | 38.68 Mpps | 77.37 Mpps | 77.37 Mpps | |||||||
| Capacity | 16 Gbps | 16 Gbps | 52 Gbps | 52 Gbps | 104 Gbps | 104 Gbps | |||||||
| MAC address table size (# of entries) | 8,000 entries | 8,000 entries | 16,000 entries | 16,000 entries | 16,000 entries | 16,000 entries | |||||||
| Reliability MTBF (years) | 188.2 | 105.9 | 203.6 | 96.6 | 114.4 | 83.5 | |||||||
| Environment | |||||||||||||
| Operating temperature | 32°F to 104°F (0°C to 40°C) | 32°F to 104°F (0°C to 40°C) | 32°F to 104°F (0°C to 40°C) | 32°F to 104°F (0°C to 40°C) | 32°F to 104°F (0°C to 40°C) | 32°F to 104°F (0°C to 40°C) | |||||||
| Operating relative humidity | 15% to 95% @ 104°F (40°C) | 15% to 95% @ 104°F (40°C) | 15% to 95% @ 104°F (40°C) | 15% to 95% @ 104°F (40°C) | 15% to 95% @ 104°F (40°C) | 15% to 95% @ 104°F (40°C) | |||||||
| Nonoperating/ storage temperature | -40°F to 158°F (-40°C to 70°C) | -40°F to 158°F (-40°C to 70°C) | -40°F to 158°F (-40°C to 70°C) | -40°F to 158°F (-40°C to 70°C) | -40°F to 158°F (-40°C to 70°C) | -40°F to 158°F (-40°C to 70°C) | |||||||
| Nonoperating/ storage relative humidity | 15% to 95% @ 140°F (60°C) | 15% to 95% @ 140°F (60°C) | 15% to 95% @ 140°F (60°C) | 15% to 95% @ 140°F (60°C) | 15% to 95% @ 140°F (60°C) | 15% to 95% @ 140°F (60°C) | |||||||
| Altitude | up to 10,000 ft (3 km) | up to 10,000 ft (3 km) | up to 10,000 ft (3 km) | up to 10,000 ft (3 km) | up to 10,000 ft (3 km) | up to 10,000 ft (3 km) | |||||||
| Acoustics1 | |||||||||||||
| Fanless | Fanless | Fanless | LWAd = 3.1 Bel LpAm (Bystander) = 17 dB | LWAd = 3.4 Bel LpAm (Bystander) = 19 dB | LWAd = 4.0 Bel LpAm (Bystander) = 25 dB | ||||||||
| Notes: 1Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and (for JL813A and JL815A) 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm) | |||||||||||||
| 100% traffic | Fanless | Fanless | Fanless | LWAd = 3.1 Bel LpAm (Bystander) = 17 dB | LWAd = 3.4 Bel LpAm (Bystander) = 19 dB | LWAd = 3.5 Bel LpAm (Bystander) = 20 dB | |||||||
| 100% traffic / 0% PoE | Fanless | Fanless | Fanless | LWAd = 3.1 Bel LpAm (Bystander) = 17 dB | - | LWAd = 3.5 Bel LpAm (Bystander) = 20 dB | |||||||
| 100% traffic / 50% PoE | Fanless | Fanless | Fanless | LWAd = 3.1 Bel LpAm (Bystander) = 17 dB | - | LWAd = 4.0 Bel LpAm (Bystander) = 25 dB | |||||||
| 100% traffic / 100% PoE | Fanless | Fanless | Fanless | LWAd = 5.1 Bel LpAm (Bystander) = 35 dB | - | LWAd = 5.7 Bel LpAm (Bystander) = 41 dB | |||||||
| Aruba Instant On 1830 8G Switch (JL810A) | Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A) | Aruba Instant On 1830 24G 2SFP Switch (JL812A) | Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch (JL813A) | Aruba Instant On 1830 48G 4SFP Switch (JL814A) | Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch (JL815A) | ||||||||
| Electrical Characteristics | |||||||||||||
| Frequency | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | |||||||
| AC voltage | 100-127VAC / 200- 240VAC | 100-127VAC / 200- 240VAC | 100-127VAC / 200- 240VAC | 100-127VAC / 200- 240VAC | 100-127VAC / 200- 240VAC | 100-127VAC / 200- 240VAC | |||||||
| Current | 12V -- 1.0A | 1.0A/0.5A | 0.4A/0.3A | 2.7A/1.4A | 0.9A/0.6A | 5.2A/2.6A | |||||||
| Maximum power rating | 100-127V: 8.09W 200-220V: 8.05W | 100-127V: 86.07W 200-220V: 83.67W | 100-127V: 19.1W 200-220V: 19W | 100-127V: 244.6W 200-220V: 237.2W | 100-127V: 40.2W 200-220V: 40W | 100-127V: 462.5W 200-220V: 452.5W | |||||||
| Idle power | 100-127V: 5.8W 200-220V: 5.9W | 100-127V: 8.3W 200-220V: 8.2W | 100-127V: 7.6W 200-220V: 7.8W | 100-127V: 14.5W 200-220V: 13.4W | 100-127V: 17.7W 200-220V: 17.7W | 100-127V: 25.8W 200-220V: 25.4W | |||||||
| PoE power | 13W max Class 3 PD | 65 W Class 4 PoE | - | 195 W Class 4 PoE | - | 370 W Class 4 PoE | |||||||
| Power supply | External power adapter (included) | Internal power supply | Internal power supply | Internal power supply | Internal power supply | Internal power supply | |||||||
| Safety | EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 1 | EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 1 | EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. L 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 1 | EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 1 | EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 1 | EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 2nd. & 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed. EN/IEC 60825-1:2014 Class 1 | |||||||
| Emissions | EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A | EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A | EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A | EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A | EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A | EN 55032:2015/CISPR 32, Class A FCC CFR 47 Part 15: 2018 Class A ICES-003 Class A VCCI Class A CNS 13438 Class A KN 32 Class A AS/NZS CISPR 32 Class A | |||||||
| Aruba Instant On 1830 8G Switch (JL810A) | Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A) | Aruba Instant On 1830 24G 2SFP Switch (JL812A) | Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch (JL813A) | Aruba Instant On 1830 48G 4SFP Switch (JL814A) | Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch (JL815A) | ||||||||
| Immunity | |||||||||||||
| Generic | EN 55035, CISPR 35, KN35 | EN 55035, CISPR 35, KN35 | EN 55035, CISPR 35, KN35 | EN 55035, CISPR 35, KN35 | EN 55035, CISPR 35, KN35 | EN 55035, CISPR 35, KN35 | |||||||
| EN | EN 55035, CISPR 35 | EN 55035, CISPR 35 | EN 55035, CISPR 35 | EN 55035, CISPR 35 | EN 55035, CISPR 35 | EN 55035, CISPR 35 | |||||||
| ESD | EN/IEC 61000-4-2 | EN/IEC 61000-4-2 | EN/IEC 61000-4-2 | EN/IEC 61000-4-2 | EN/IEC 61000-4-2 | EN/IEC 61000-4-2 | |||||||
| Radiated | EN/IEC 61000-4-3 | EN/IEC 61000-4-3 | EN/IEC 61000-4-3 | EN/IEC 61000-4-3 | EN/IEC 61000-4-3 | EN/IEC 61000-4-3 | |||||||
| EFT/Burst | EN/IEC 61000-4-4 | EN/IEC 61000-4-4 | EN/IEC 61000-4-4 | EN/IEC 61000-4-4 | EN/IEC 61000-4-4 | EN/IEC 61000-4-4 | |||||||
| Surge | EN/IEC 61000-4-5 | EN/IEC 61000-4-5 | EN/IEC 61000-4-5 | EN/IEC 61000-4-5 | EN/IEC 61000-4-5 | EN/IEC 61000-4-5 | |||||||
| Conducted | EN/IEC 61000-4-6 | EN/IEC 61000-4-6 | EN/IEC 61000-4-6 | EN/IEC 61000-4-6 | EN/IEC 61000-4-6 | EN/IEC 61000-4-6 | |||||||
| Power frequency magnetic field | EN/IEC 61000-4-8 | EN/IEC 61000-4-8 | EN/IEC 61000-4-8 | EN/IEC 61000-4-8 | EN/IEC 61000-4-8 | EN/IEC 61000-4-8 | |||||||
| Voltage dips and interruptions | EN/IEC 61000-4-11 | EN/IEC 61000-4-11 | EN/IEC 61000-4-11 | EN/IEC 61000-4-11 | EN/IEC 61000-4-11 | EN/IEC 61000-4-11 | |||||||
| Harmonics | EN/IEC 61000-3-2 | EN/IEC 61000-3-2 | EN/IEC 61000-3-2 | EN/IEC 61000-3-2 | EN/IEC 61000-3-2 | EN/IEC 61000-3-2 | |||||||
| Flicker | EN /IEC 61000-3-3 | EN /IEC 61000-3-3 | EN /IEC 61000-3-3 | EN /IEC 61000-3-3 | EN /IEC 61000-3-3 | EN /IEC 61000-3-3 | |||||||
| Device Management | Aruba Instant On Cloud; Web browser; SNMP Manager | Aruba Instant On Cloud; Web browser; SNMP Manager | Aruba Instant On Cloud; Web browser; SNMP Manager | Aruba Instant On Cloud; Web browser; SNMP Manager | Aruba Instant On Cloud; Web browser; SNMP Manager | Aruba Instant On Cloud; Web browser; SNMP Manager | |||||||
| Mounting | |||||||||||||
| Mounting positions and supported racking | Supports table-top mounting Supports wall-mounting with ports facing either up or down Supports under-table mounting using base surface mounting holes | Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rack-mounting Supports wall-mounting with ports facing either up or down Supports under-table mounting using the brackets provided Must be mounted top surface up. To prevent possible impact to longterm reliability, product should not be mounted upside-down | Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rack-mounting Supports wall-mounting with ports facing either up or down Supports under-table mounting using the brackets provided Must be mounted top surface up. To prevent possible impact to longterm reliability, product should not be mounted upside-down | Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rack-mounting Supports wall-mounting with ports facing either up or down Supports under-table mounting using the brackets provided | Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rack-mounting Supports wall-mounting with ports facing either up or down Supports under-table mounting using the brackets provided | Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rack-mounting Supports wall-mounting with ports facing either up or down Suports under-table mounting using the brackets provided | |||||||
| Aruba Instant On 1830 8G Switch (JL810A) | Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A) | Aruba Instant On 1830 24G 2SFP Switch (JL812A) | Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch (JL813A) | Aruba Instant On 1830 48G 4SFP Switch (JL814A) | Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch (JL815A) | ||||||||
| Transceivers | Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A) | Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A) | Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A) | Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A) | |||||||||
| Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D) | Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D) | Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D) | Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D) | ||||||||||
| Aruba 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D) | Aruba 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D) | Aruba 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D) | Aruba 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D) | ||||||||||
.
