HPE Networking Instant On Switch 8p Gigabit 1430 (R8R45A)
Kód: 1881015Skladom>5ks
Termín a spôsob doručenia
Prevedenie:Desktop; Technológia:Gigabit Ethernet 1000Mbps; Maximálny počet portov:8.prečítajte si viac
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodnené balenie
Množstevné zľavy
/envelope.svg){kind=small}
Váš dotaz
/bell.svg){kind=small}
Sledovat
/share.svg){kind=small}
Zdieľať
Parametre
Výrobca:
Kód:
1881015
EAN:
190017601571
Záruka:
99 Doživotní
Stav:
Maximální počet portů:
8
Provedení:
Desktop
Technologie:
Gigabit Ethernet 1000Mbps
Management:
Ne
Přenosová rychlost LAN (Mb/s):
24
Funkce:
QoS (Quality of service), L2
Podporované standardy PoE:
Žádný
Ventilátor:
Ne
Počet portů LAN:
8
Maximální počet portů:
8

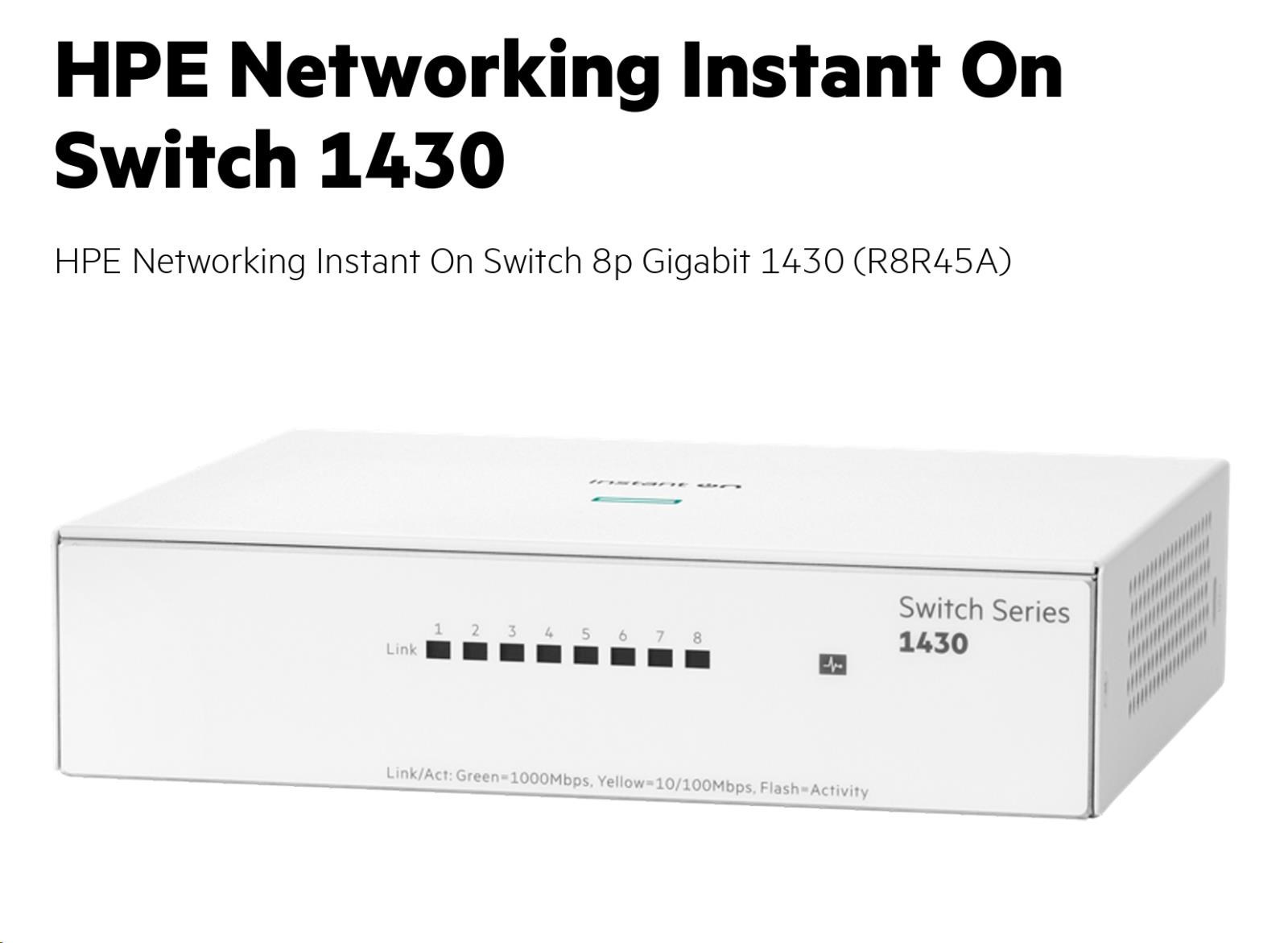

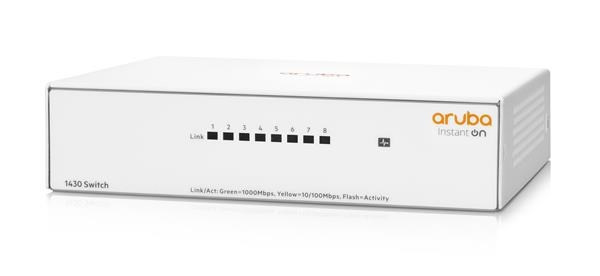

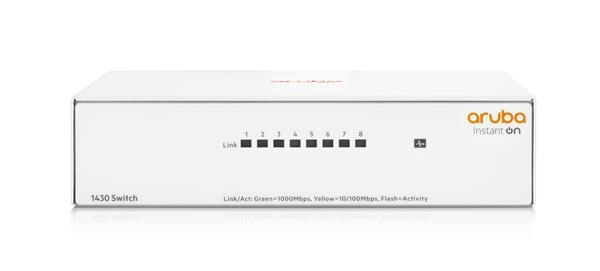

Popis HPE Networking Instant On Switch 8p Gigabit 1430 (R8R45A)
HPE Networking Instant On Switch 8p Gigabit 1430

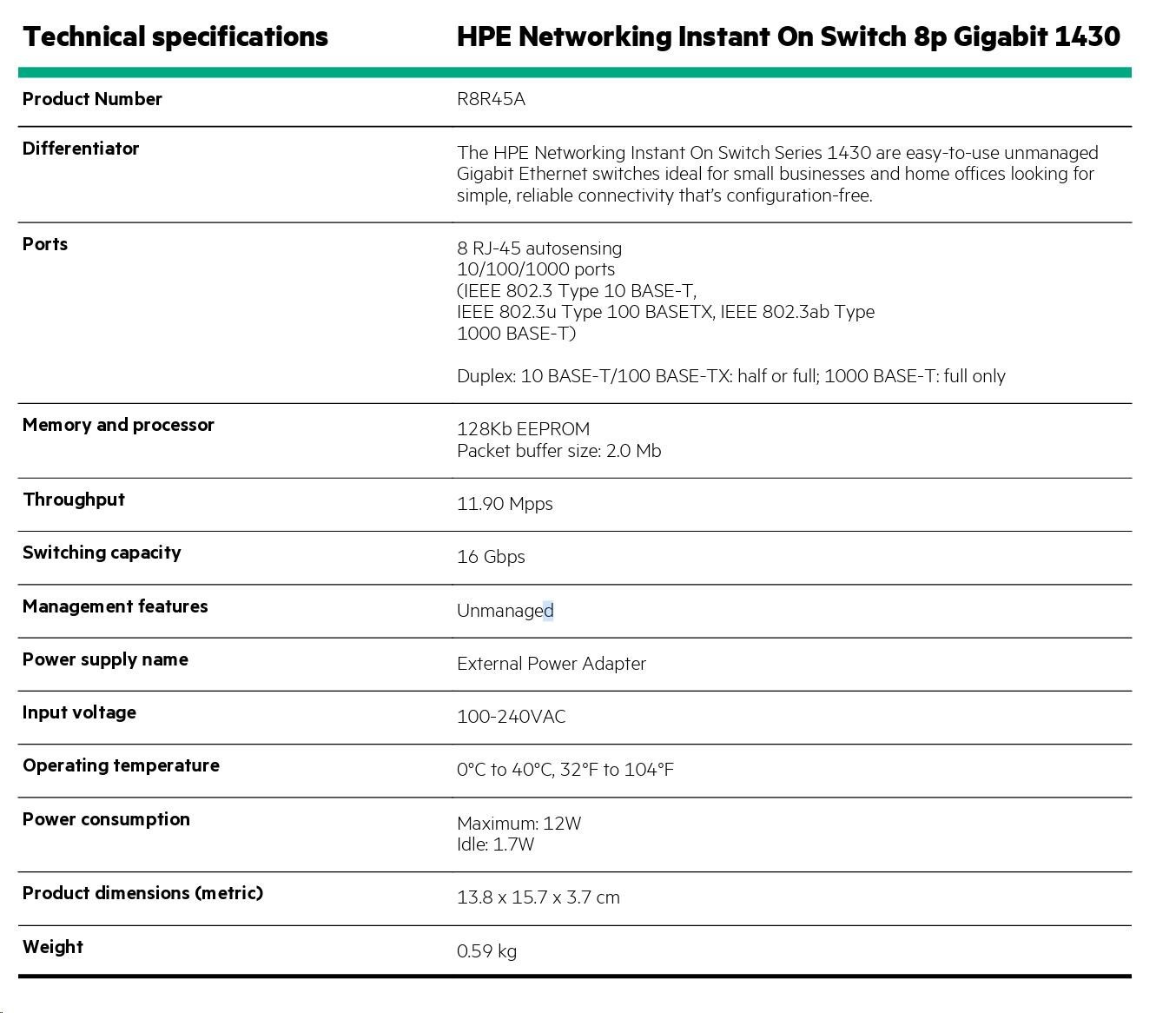

General Information
-
Product Name: HPE Networking Instant On Switch 1430 8-Port Gigabit
-
Product Number: R8R45A
-
Differentiator:
Unmanaged, plug-and-play switch for small businesses and home offices. No configuration required. Provides reliable Gigabit connectivity.
Ports
-

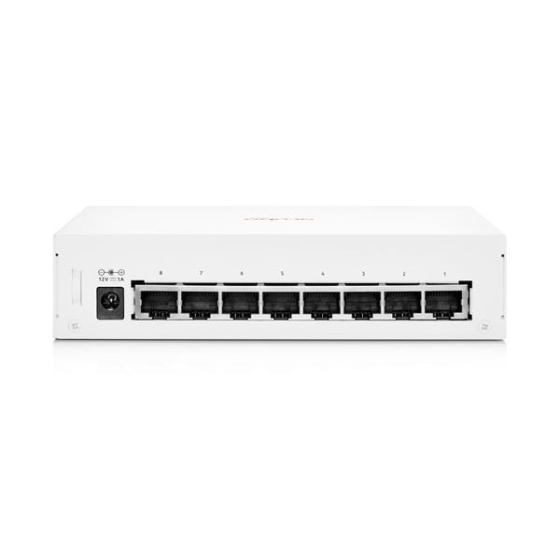

Total Ports: 8 RJ-45 autosensing ports
-
Port Speeds Supported:
-
10/100/1000 Mbps (IEEE 802.3, 802.3u, 802.3ab)
-
-
Duplex Modes:
-
10/100 Mbps: Half or Full Duplex
-
1000 Mbps: Full Duplex only
-
Performance
-
Throughput: 11.90 Mpps (Million packets per second)
-
Switching Capacity: 16 Gbps
-
Packet Buffer Size: 2.0 Mb
-
Memory: 128 Kb EEPROM
Power
-
Power Supply: External Power Adapter
-
Input Voltage: 100–240V AC
-
Power Consumption:
-
Maximum: 12W
-
Idle: 1.7W
-
Management Features
-
Type: Unmanaged (no management interface or configuration needed)
Environmental Specifications
-
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Physical Characteristics
-
Dimensions: 13.8 x 15.7 x 3.7 cm
-
Weight: 0.59 kg
| HPE Networking Instant On Switch 8p Gigabit 1430 (R8R45A) (R8R45A) | |
| I/O ports and slots | 8 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only |
| Dimensions | 138(d) x 157(w) x 37(h) mm |
| Weight | 1.30 lb (0.59 kg) |
| Processor and Memory | 128Kb EEPROM; Packet buffer size: 2.0 Mb |
| 100 Mb latency | < 2.7 Î1Sec |
| 1000 Mb latency | < 1.80 Î1Sec |
| Throughput (Mpps) | 11.90 Mpps |
| Capacity | 16 Gbps |
| MAC address table size | 8192 entries |
| Reliability MTBF (years) | 416.2 |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
| Operating relative humidity | 15% to 95% @ 104°F (40°C) non-condensing |
| Nonoperating/ storage temperature | -40°F to 158°F (-40°C to 70°C) up to 15000 ft |
| Nonoperating/ storage relative humidity | 15% to 90% @ 149°F (65°C) non-condensing |
| Altitude | up to 10,000 ft (3 km) |
| Acoustics | Fanless |
| Frequency | 50Hz/60Hz |
| AC voltage | 100-240VAC |
| Current | 0.3A (12VDC - 1A) |
| Maximum power rating | 12W |
| Idle power | 1.7W |
| PoE power | - |
| Power Supply | External Power Adapter |
| Safety |
|
| Emissions |
|
| Immunity | BS/EN 55035, CISPR 35, KS C 9835 |
| Generic | EN 55035, CISPR 35 |
| EN | EN/IEC 61000-4-2 |
| ESD | EN/IEC 61000-4-3 |
| Radiated | EN/IEC 61000-4-4 |
| EFT/Burst | EN/IEC 61000-4-5 |
| Surge | EN/IEC 61000-4-6 |
| Conducted | EN/IEC 61000-4-8 |
| Power frequency magnetic field | EN/IEC 61000-4-11 |
| Voltage dips and interruptions | EN/IEC 61000-3-2 |
| Harmonics | EN /IEC 61000-3-3 |
| Device Management | Unmanaged |
| Mounting | |
| Mounting positions and supported racking |
|
HPE Networking Instant On Switch 1430 Series
Key Features
- Unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in 5-, 8-, 16-, 24-, and 26-port models
- Up to 124W of PoE to power APs, IP Phones, and other IoT devices
- No configuration or management needed
- Plug-and-play with fully automated functions and zero ongoing maintenance
- Quality of Service (QoS) and flow control for improved network efficiency
- Fan-less with Energy Efficient Ethernet for low power consumption
- Class B certified for home office networks (5 and 8 port models)
Standard Features
Simplicity at its Best
- Plug-and-play switches that work right out of the box
- Zero configuration required
Reliable Connectivity
- Connect faster with Gigabit Ethernet speed
- PoE to power devices like APs and IP phones
We've Got You Covered
- Industry-leading limited lifetime warranty and support
- 24 x 7 chat support for entire warranty period
The Networking Instant On Differentiators
Better Together
HPE Networking Instant On products work together to provide a seamless Wi-Fi experience. Wired and wireless voice traffic is prioritized with high QoS priority end-to-end for optimal voice performance.
Industry-Leading Support and Warranty
Expert-level support and industry-leading limited lifetime warranty are also included, along with chat support for the life of the product.
Additional Highlights
- Plug-and-Play: Gigabit Ethernet speeds
- Duplex Support: Half/full-duplex auto-negotiating capability on access ports
- Fiber Uplinks: 26-port model includes two 1G SFP fiber ports for long-distance connectivity
- Simplified Cabling: Auto MDI/MDI-X for cable type detection
- PoE Certification: IEEE 802.3at (Class 4) and 802.3af compliant for APs, IP phones, etc.
- EAPoL Forwarding: Supports 802.1x authentication forwarding
- STP BPDU Forwarding: Ensures proper Spanning Tree operation to avoid loops
Traffic Optimization
- QoS: Prioritizes voice/video traffic via DSCP and IEEE 802.1p
- Flow Control: Helps prevent packet loss at congested nodes
- Jumbo Frame Support: Up to 9216 bytes for large file transfers
Warranty, Service, and Support
HPE Networking Instant On Limited Lifetime Support provides:
- 24x7 phone support for the first 90 days
- 24x7 chat support for the entire warranty period
- Community support for the lifetime of the product PE Networking Instant On Switch 1430 Overview
HPE Networking Instant On Switch 1430 Overview
Technology brings new revenue opportunities, more effective communication, and improved productivity to businesses of all sizes. Yet it also poses daily challenges of configuration and maintenance, especially for small businesses who lack IT support. Small offices and home offices need reliable network connectivity that's fast, configuration-free, and affordable for even the most budget-strapped businesses.
The HPE Networking Instant On Switch 1430 is a plug-and-play unmanaged switch series for small businesses looking for simple, reliable, and low-cost network connectivity. These easy-to-use switches deliver Layer 2 Gigabit Ethernet switching capabilities—at an affordable price point—to help connect and share common resources like printers and access points, without any complicated network configuration.
With plug-and-play operation, fully automated functions, zero ongoing maintenance, and Power over Ethernet (PoE) models, these switches deliver simple, reliable connectivity for the smallest SMBs and home offices.
Model Availability
The HPE Networking Instant On Switch 1430 series includes seven models in both PoE and non-PoE configurations:
- 1 × 5-port model
- 2 × 8-port models
- 2 × 16-port models
- 1 × 24-port model
- 1 × 26-port model with 2 SFP uplinks
PoE Capabilities
The PoE models support up to 30W per port (Class 4 PoE), suitable for powering:
- Access Points
- Surveillance Cameras
- VoIP Phones
Power budgets:
- 8-port PoE model: 64W
- 16-port PoE model: 124W
Designed for Small Business
All switches are fan-less, making them ideal for acoustically sensitive environments such as home offices and meeting rooms. These switches are unmanaged and require no configuration—they are not managed by the HPE Networking Instant On cloud portal.
