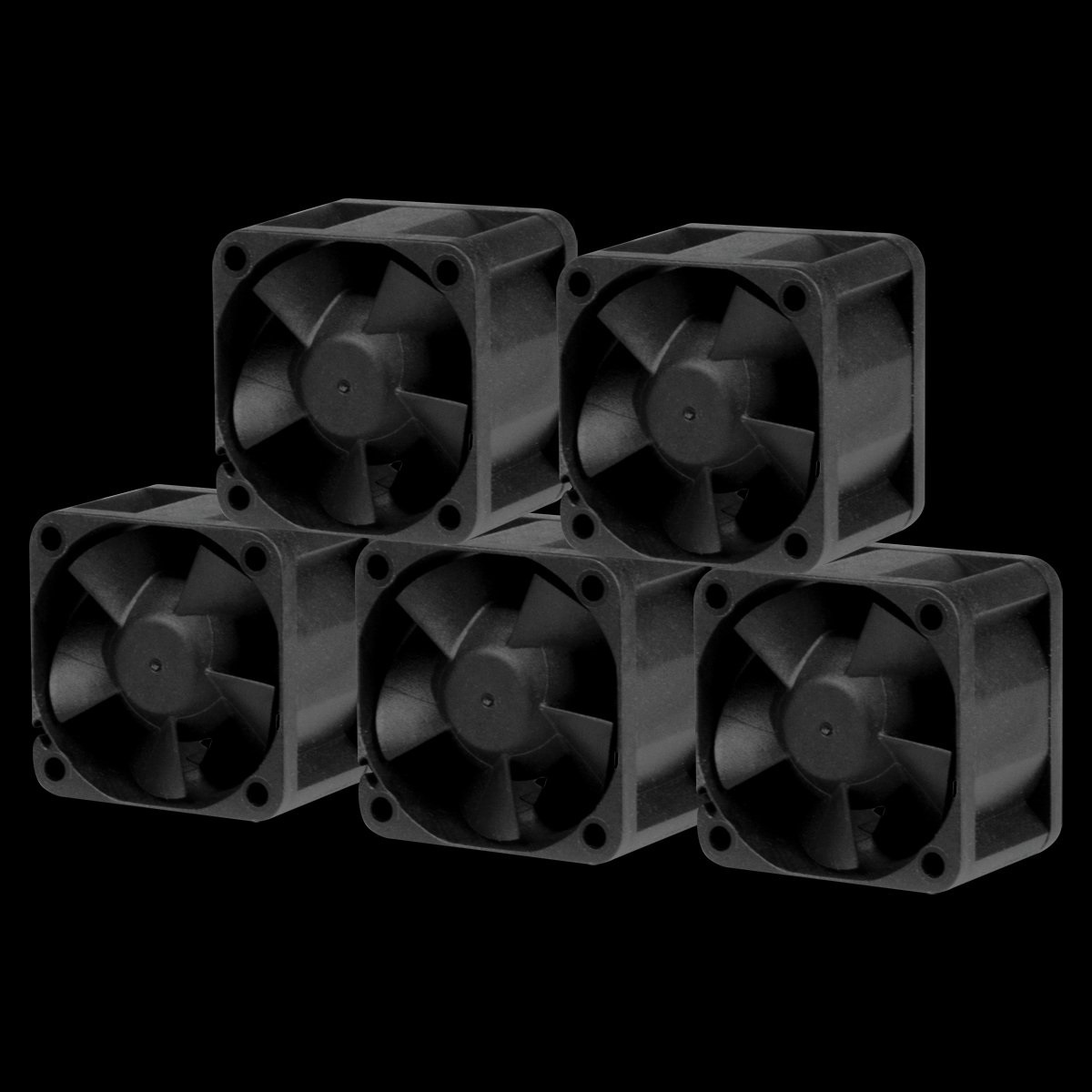

ARCTIC S4028-15K 40x28mm DC Fan pre aplikáciu servera - 15000 RPM - Dual Ball Bearing (Pack of 5pcs
Kód: i54_201064308K odeslání do 2 prac. dnů
Termín a spôsob doručenia
S4028-15K (balení 5ks) 40 mm Server Fan DESIGNED FOR CONTINUOUS OPERATION The impeller of the Sprečítajte si viac
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodnené balenie
Množstevné zľavy
/envelope.svg){kind=small}
Váš dotaz
/bell.svg){kind=small}
Sledovat
/share.svg){kind=small}
Zdieľať
Parametre
Popis ARCTIC S4028-15K 40x28mm DC Fan pre aplikáciu servera - 15000 RPM - Dual Ball Bearing (Pack of 5pcs
S4028-15K (balení 5ks)
40 mm Server Fan
DESIGNED FOR CONTINUOUS OPERATION
The impeller of the S4028-15K is held in place by two ball bearings and is therefore particularly durable and less sensitive to external influences such as heat and dust.
FULL CONTROL WITH A WIDE SPEED RANGE
The S4028-15K has a very wide speed range that can be regulated via PWM and voltage. With its 15000 rpm max, it offers a high cooling capacity at a relatively low noise.
HIGH AIRFLOW AND STATIC PRESSURE
With a static pressure of 26.5 mm/H2O and a maximum airflow of 32.67 m3/h, the S4028-15K is a true all-rounder and is suitable as both a radiator and case fan.
WIDE RANGE OF APPLICATIONS
The S4028-15K fits into 1U server cases and can serve as a replacement fan for routers, switches and NAS. It can also be used for other products such as DVRs, mini PCs, HTPCs, hard drive enclosures and 3D printers.
FLEXIBLE CONNECTION OPTIONS
The fan has a standard 4-pin fan connector and can also be connected to and controlled on 2-pin or 3-pin headers, while the 40cm cable allows a lot of flexibility in positioning.
General data
Performance
Fan Speed: 1400 - 15000 rpm
Airflow: 19,23 CFM / 32,67 m3/h
Speed Control: Pulse Width Modulation – PWM
Static Pressure: 26.5 mm H2O
Fan
Fan Frame: Standard
Connector: 2510 4-Pin Fan-Connector
Fan Bearing: Dual Ball Bearing
Operating Ambient Temperature: 0 - 40 °C
Electric Characteristics:
Starting Voltage: 4.5 V
Current/ Voltage: 0.47 A/ 12.0 V DC
Cable Lenght: 400 mm
Size & Weight
Lenght: 40 mm
Width: 40 mm
Height: 28 mm
Weight: 42 g
Packaging
Width: 33 mm
Height: 57 mm
Length: 45 mm
Weight: 0.051 kg
40 mm Server Fan
DESIGNED FOR CONTINUOUS OPERATION
The impeller of the S4028-15K is held in place by two ball bearings and is therefore particularly durable and less sensitive to external influences such as heat and dust.
FULL CONTROL WITH A WIDE SPEED RANGE
The S4028-15K has a very wide speed range that can be regulated via PWM and voltage. With its 15000 rpm max, it offers a high cooling capacity at a relatively low noise.
HIGH AIRFLOW AND STATIC PRESSURE
With a static pressure of 26.5 mm/H2O and a maximum airflow of 32.67 m3/h, the S4028-15K is a true all-rounder and is suitable as both a radiator and case fan.
WIDE RANGE OF APPLICATIONS
The S4028-15K fits into 1U server cases and can serve as a replacement fan for routers, switches and NAS. It can also be used for other products such as DVRs, mini PCs, HTPCs, hard drive enclosures and 3D printers.
FLEXIBLE CONNECTION OPTIONS
The fan has a standard 4-pin fan connector and can also be connected to and controlled on 2-pin or 3-pin headers, while the 40cm cable allows a lot of flexibility in positioning.
General data
Performance
Fan Speed: 1400 - 15000 rpm
Airflow: 19,23 CFM / 32,67 m3/h
Speed Control: Pulse Width Modulation – PWM
Static Pressure: 26.5 mm H2O
Fan
Fan Frame: Standard
Connector: 2510 4-Pin Fan-Connector
Fan Bearing: Dual Ball Bearing
Operating Ambient Temperature: 0 - 40 °C
Electric Characteristics:
Starting Voltage: 4.5 V
Current/ Voltage: 0.47 A/ 12.0 V DC
Cable Lenght: 400 mm
Size & Weight
Lenght: 40 mm
Width: 40 mm
Height: 28 mm
Weight: 42 g
Packaging
Width: 33 mm
Height: 57 mm
Length: 45 mm
Weight: 0.051 kg
ARCTIC S4028-15K (balenĂ 5ks)
Navrženo pro nepřetržitý provoz
OběžnĂ© kolo modelu S4028-15K je uchyceno dvÄ›ma vysoce kvalitnĂmi japonskĂ˝mi kuliÄŤkovĂ˝mi loĹľisky v robustnĂm mosaznĂ©m pouzdĹ™e. Tato konstrukce zvyšuje stabilitu, pevnost a kolmost ventilátoru a minimalizuje citlivost na vlivy, jako je teplo a prach. MosaznĂ© pouzdro navĂc pomáhá sniĹľovat opotĹ™ebenĂ vysokorychlostnĂch ventilátorĹŻ.
Plná kontrola s širokým rozsahem otáček
Model S4028-15K má velmi širokĂ˝ rozsah otáček, kterĂ˝ lze regulovat pomocĂ PWM a napÄ›tĂ. S maximálnĂmi otáčkami 15 000 ot./min nabĂzĂ vysokĂ˝ chladicĂ vĂ˝kon pĹ™i relativnÄ› nĂzkĂ© hluÄŤnosti.
VysokĂ˝ prĹŻtok vzduchu a statickĂ˝ tlak
Se statickĂ˝m tlakem 26,5 mmH2O a maximálnĂm prĹŻtokem vzduchu 32,67 m3/h je model S4028-15K skuteÄŤnÄ› univerzálnĂ a hodĂ se jak jako ventilátor chladiÄŤe, tak jako ventilátor skĹ™ĂnÄ›.
Ĺ iroká škála pouĹľitĂ
Model S4028-15K se vejde do 1U serverovĂ˝ch skĹ™ĂnĂ a mĹŻĹľe slouĹľit jako náhradnĂ ventilátor pro routery, pĹ™epĂnaÄŤe a NAS. Lze jej takĂ© pouĹľĂt pro dalšà produkty, jako jsou DVR, mini PC, HTPC, kryty pevnĂ˝ch diskĹŻ a 3D tiskárny.
FlexibilnĂ moĹľnosti pĹ™ipojenĂ
Ventilátor má standardnĂ 4pinovĂ˝ konektor a lze jej pĹ™ipojit a ovládat takĂ© pomocĂ 2pinovĂ˝ch nebo 3pinovĂ˝ch konektorĹŻ, zatĂmco 40cm kabel umoĹľĹuje velkou flexibilitu pĹ™i umĂstÄ›nĂ.
UpozornÄ›nĂ:
Popis, obrázky a jednotlivé parametry se mohou lišit v závislosti na zvoleném modelu a konfiguraci.
