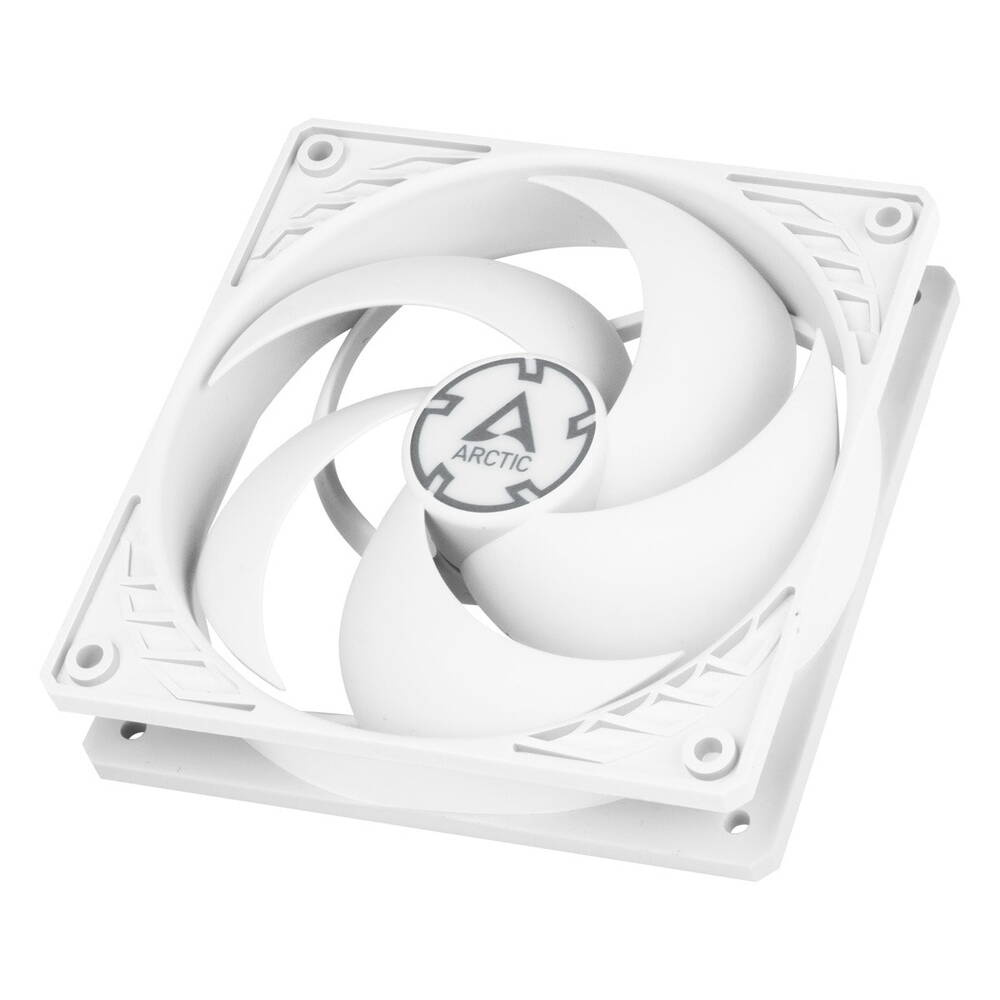

ARCTIC P14 PWM pst (white/white)
Kód: i54_201064178Skladom>5ks
Termín a spôsob doručenia
P14 PWM PST - Pressure-optimised 140 mm Fan with PWM PST OPTIMISED FOR STATIC PRESSURE During thprečítajte si viac
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodnené balenie
Množstevné zľavy
/envelope.svg){kind=small}
Váš dotaz
/bell.svg){kind=small}
Sledovat
/share.svg){kind=small}
Zdieľať
Parametre
Popis ARCTIC P14 PWM pst (white/white)
P14 PWM PST - Pressure-optimised 140 mm Fan with PWM PST
OPTIMISED FOR STATIC PRESSURE
During the development of the new P14 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 PWM PST is particularly suitable for use on heatsinks and radiators.
MORE EFFICIENT TECHNOLOGY
The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P14 PWM PST to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.
MAXIMUM QUIETNESS, MINIMUM VIBRATION
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
EXTENDED LIFE SPAN
A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature.
200 TO 1700 RPM REGULATED VIA PWM PST
With a wide range of regulation and the PWM Sharing Technology (PST), the P14 PWM PST fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.
HIGH QUALITY BEARING
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
TWO WAY INSTALLATION
Push warm air out of the case
Pull cool air into your case
TECHNICAL SPECIFICATIONS
General data
Performance
Fan Speed: 200 - 1350 rpm
Airflow: 74 CFM/ 126 m3/h
Static Pressure: 1,3 (mm/H2O)
Noise Level: 0.5 Sone
Fan
Fan Frame: Standard
Controll Type: PST
Connector: 4-Pin-Connector + 4-Pin-Socket
Fan Bearing: Fluid Dynamic Bearing
Electric Characteristics:
Typical Voltage: 12 V DC
Starting Voltage: 6 V
Current: 0.11 A
Cable Lenght: 400 mm
Size & Weight
Lenght: 140 mm
Width: 140 mm
Height: 27 mm
Weight: 181 g
Packaging
Width: 143 mm
Height: 143 mm
Length: 29 mm
Weight: 0.23 kg
OPTIMISED FOR STATIC PRESSURE
During the development of the new P14 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 PWM PST is particularly suitable for use on heatsinks and radiators.
MORE EFFICIENT TECHNOLOGY
The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P14 PWM PST to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.
MAXIMUM QUIETNESS, MINIMUM VIBRATION
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
EXTENDED LIFE SPAN
A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature.
200 TO 1700 RPM REGULATED VIA PWM PST
With a wide range of regulation and the PWM Sharing Technology (PST), the P14 PWM PST fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.
HIGH QUALITY BEARING
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
TWO WAY INSTALLATION
Push warm air out of the case
Pull cool air into your case
TECHNICAL SPECIFICATIONS
General data
Performance
Fan Speed: 200 - 1350 rpm
Airflow: 74 CFM/ 126 m3/h
Static Pressure: 1,3 (mm/H2O)
Noise Level: 0.5 Sone
Fan
Fan Frame: Standard
Controll Type: PST
Connector: 4-Pin-Connector + 4-Pin-Socket
Fan Bearing: Fluid Dynamic Bearing
Electric Characteristics:
Typical Voltage: 12 V DC
Starting Voltage: 6 V
Current: 0.11 A
Cable Lenght: 400 mm
Size & Weight
Lenght: 140 mm
Width: 140 mm
Height: 27 mm
Weight: 181 g
Packaging
Width: 143 mm
Height: 143 mm
Length: 29 mm
Weight: 0.23 kg
ARCTIC P14 PWM PST White
Optimalizováno pro statický tlak
PĹ™i vĂ˝voji novĂ©ho ventilátoru P14 PWM PST byl kladen zvláštnĂ dĹŻraz na soustĹ™edÄ›nĂ˝ proud vzduchu a tĂm i na vysokĂ˝ statickĂ˝ tlak. Ventilátor zaruÄŤuje extrĂ©mnÄ› účinnĂ© chlazenĂ i pĹ™i zvýšenĂ©m odporu vzduchu. Ventilátor P14 PWM PST je proto zvláštÄ› vhodnĂ˝ pro pouĹľitĂ na chladiÄŤĂch a radiátorech.
Režim 0 dB – nulové otáčky
Rychlost ventilátoru lze pomocĂ PWM snĂĹľit aĹľ na nulovĂ© otáčky. To umoĹľĹuje tichĂ˝ provoz v reĹľimu IDLE a zároveĹ zaruÄŤuje maximálnĂ vĂ˝kon, kdyĹľ je to potĹ™eba.
Účinnějšà technologie
Motor je pohánÄ›n integrovanĂ˝m obvodem PWM nejnovÄ›jšà generace, dĂky ÄŤemuĹľ je novĂ˝ model P14 PWM PST mnohem účinnÄ›jšà neĹľ jeho pĹ™edchĹŻdci. To šetřà energii, aniĹľ by došlo ke snĂĹľenĂ vĂ˝konu.
Maximálnà tichost, minimálnà vibrace
I pĹ™i nĂzkĂ˝ch otáčkách je provoznĂ hluk novĂ©ho motoru ARCTIC sotva slyšitelnĂ˝. DĂky sinusovĂ© magnetizaci vytvářà novĂ˝ motor pouze asi 5 % vibracĂ z komutace běžnĂ©ho stejnosmÄ›rnĂ©ho motoru bez filtru. DĂky stabilnĂmu a plynulĂ©mu toÄŤivĂ©mu momentu novĂ©ho motoru proto nenĂ nutnĂ© pouĹľĂvat gumovĂ© distanÄŤnĂ vloĹľky.
Prodloužená životnost
O 10 °C nižšà teplota motoru zhruba zdvojnásobuje Ĺľivotnost ventilátoru. DĂky nĂzkĂ© teplotÄ› cĂvky novĂ˝ch motorĹŻ ventilátorĹŻ ARCTIC se Ĺľivotnost ventilátorĹŻ vĂ˝raznÄ› prodluĹľuje. Proto prodluĹľujeme záruku na 6 let.
200 aĹľ 1700 ot./min. Regulace pomocĂ PWM PST
DĂky širokĂ©mu rozsahu regulace a technologii PWM Sharing Technology (PST) lze otáčky ventilátoru P14 PWM PST synchronizovat se všemi ostatnĂmi ventilátory. TĂm se minimalizuje hluÄŤnost a zároveĹ se zaruÄŤuje maximálnĂ chladicĂ vĂ˝kon, kdyĹľ je to potĹ™eba.
Vysoce kvalitnĂ loĹľisko
DĂky kombinaci slitiny a maziva vyvinutĂ© v NÄ›mecku je tĹ™enĂ v loĹľisku snĂĹľeno a je dosaĹľeno vyššà účinnosti. VĂ˝sledkem je menšà tvorba tepla a menšà hluÄŤnost loĹľiska, coĹľ znamená, Ĺľe si mĹŻĹľete uĹľĂt delšà životnost ventilátoru.
Obousměrná instalace
VytlaÄŤte teplĂ˝ vzduch ze skĹ™ĂnÄ› nebo Nasajte chladnĂ˝ vzduch do skĹ™ĂnÄ›
UpozornÄ›nĂ:
Popis, obrázky a jednotlivé parametry se mohou lišit v závislosti na zvoleném modelu a konfiguraci.
