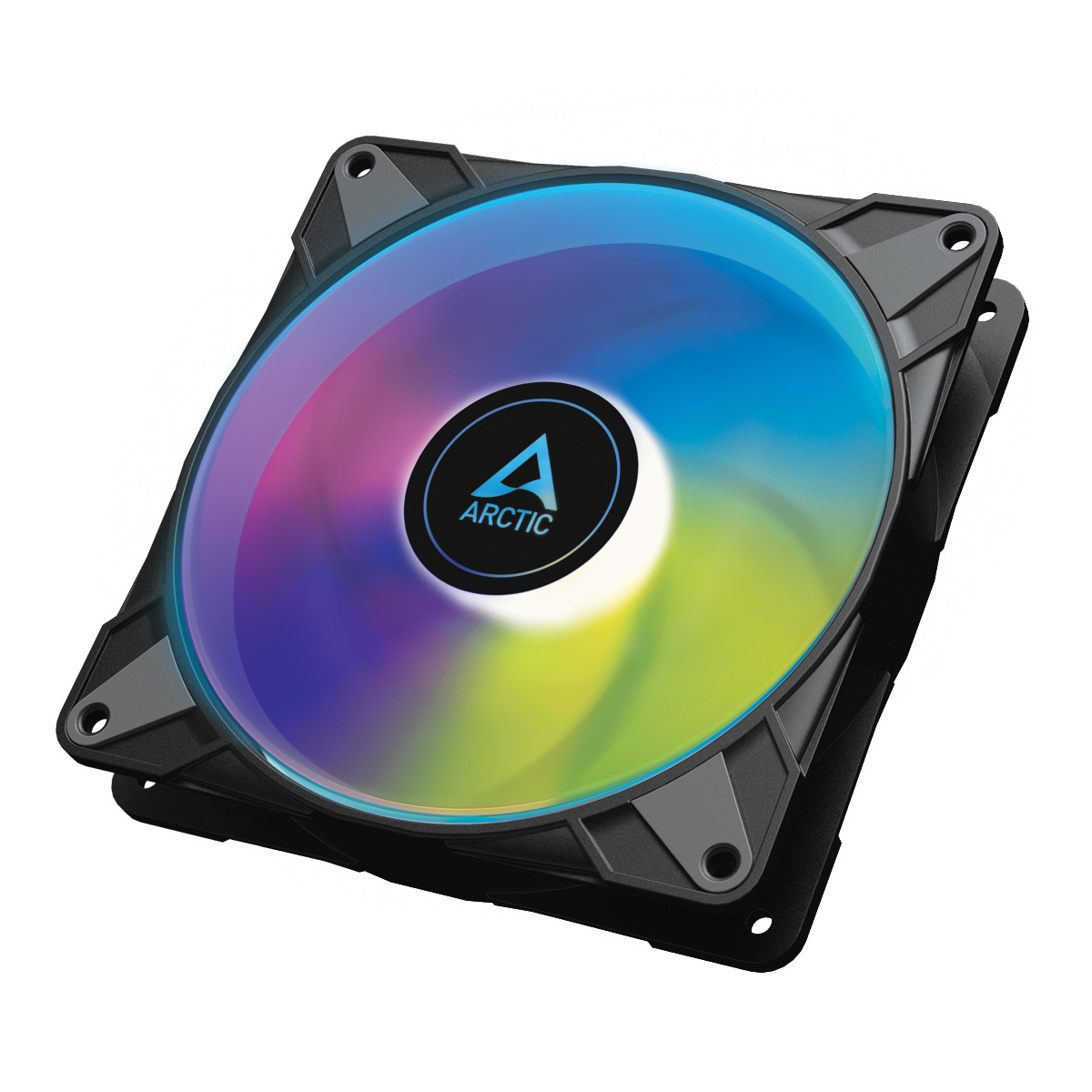

ARCTIC P14 PWM pst A-RGB 0dB – 140mm Pressure
Kód: i54_201064067K odeslání do 2 prac. dnů
Termín a spôsob doručenia
P14 PWM PST A-RGB 0dB Semi-Passive 140 mm Fan with Digital A-RGB RGB FOR FULL COLOUR CONTROL Thprečítajte si viac
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodnené balenie
Množstevné zľavy
/envelope.svg){kind=small}
Váš dotaz
/bell.svg){kind=small}
Sledovat
/share.svg){kind=small}
Zdieľať
Parametre
Výrobca:
Kód:
i54_201064067
EAN:
4895213703505
Záruka:
24
Stav:
Průměr ventilátoru:
140
Počet kusů v balení:
1
Podsvícení:
RGB
PWM regulace:
Ano
Popis ARCTIC P14 PWM pst A-RGB 0dB – 140mm Pressure
P14 PWM PST A-RGB 0dB
Semi-Passive 140 mm Fan with Digital A-RGB
RGB FOR FULL COLOUR CONTROL
The P14 PWM PST A-RGB 0dB has 12 digital A-RGB LEDs in the fan scar. These can be controlled independently of each other and are compatible with the common A-RGB standards of leading motherboard manufacturers. The fan can thus be fully illuminated directly via the A-RGB mainboard connector or via an external controller and synchronised with the illumination of other hardware.
0DB MODE - ZERO RPM
The speed of the fan can be throttled down to standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required.
MAXIMUM SMOOTHNESS, MINIMUM VIBRATION
The operating noise of the newly developed ARCTIC motor is barely perceptible even at the lowest speed. In addition, the P14 PWM PST A-RGB 0dB has rubberised contact surfaces and thus reduces audible vibrations to a minimum.
OPTIMISED FOR HIGH STATIC PRESSURE
The P14 PWM PST A-RGB 0dB operates with a focused airflow and a high static pressure. The fan thus guarantees extremely efficient cooling, even with increased air resistance, and is therefore suitable for use on heat sinks, radiators and filters.
0 TO 1900 RPM CONTROLLED VIA PWM PST
With a wide speed range and the innovative PWM Sharing Technology (PST), the fan speed of the P14 PWM PST A-RGB 0dB can be controlled synchronously with all other fans. This reduces noise to a minimum while guaranteeing maximum cooling performance.
HIGH QUALITY BEARING
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. In this way, less heat develops, less bearing noise is generated and the service life of the fan is extended.
General data
Performance
Fan Speed: 0 - 1900 rpm PWM controlled
Airflow: 68.9 CFM/ 117.06 m3/h
Static Pressure: 2 mm H2O
Noise Level: 0.3 Sone
Operating Ambient Temperature: 0 - 40 °C
Fan
Fan Frame: Standard
Control Type: PWM PST
Connector: 4-Pin-Connector + 4-Pin-Socket
Fan Bearing: Fluid Dynamic Bearing
Electric Characteristics:
Typical Voltage: 12 V DC
Starting Voltage: 5 V
Current/ Voltage: 0.17 A / 12 V
Cable Lenght: 400 mm
Size & Weight
Lenght: 140 mm
Width: 140 mm
Height: 27mm
Weight: 225g
Packaging
Width: 34 mm
Height: 167 mm
Length: 167 mm
Weight: 0.297 kg

Semi-Passive 140 mm Fan with Digital A-RGB
RGB FOR FULL COLOUR CONTROL
The P14 PWM PST A-RGB 0dB has 12 digital A-RGB LEDs in the fan scar. These can be controlled independently of each other and are compatible with the common A-RGB standards of leading motherboard manufacturers. The fan can thus be fully illuminated directly via the A-RGB mainboard connector or via an external controller and synchronised with the illumination of other hardware.
0DB MODE - ZERO RPM
The speed of the fan can be throttled down to standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required.
MAXIMUM SMOOTHNESS, MINIMUM VIBRATION
The operating noise of the newly developed ARCTIC motor is barely perceptible even at the lowest speed. In addition, the P14 PWM PST A-RGB 0dB has rubberised contact surfaces and thus reduces audible vibrations to a minimum.
OPTIMISED FOR HIGH STATIC PRESSURE
The P14 PWM PST A-RGB 0dB operates with a focused airflow and a high static pressure. The fan thus guarantees extremely efficient cooling, even with increased air resistance, and is therefore suitable for use on heat sinks, radiators and filters.
0 TO 1900 RPM CONTROLLED VIA PWM PST
With a wide speed range and the innovative PWM Sharing Technology (PST), the fan speed of the P14 PWM PST A-RGB 0dB can be controlled synchronously with all other fans. This reduces noise to a minimum while guaranteeing maximum cooling performance.
HIGH QUALITY BEARING
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. In this way, less heat develops, less bearing noise is generated and the service life of the fan is extended.
General data
Performance
Fan Speed: 0 - 1900 rpm PWM controlled
Airflow: 68.9 CFM/ 117.06 m3/h
Static Pressure: 2 mm H2O
Noise Level: 0.3 Sone
Operating Ambient Temperature: 0 - 40 °C
Fan
Fan Frame: Standard
Control Type: PWM PST
Connector: 4-Pin-Connector + 4-Pin-Socket
Fan Bearing: Fluid Dynamic Bearing
Electric Characteristics:
Typical Voltage: 12 V DC
Starting Voltage: 5 V
Current/ Voltage: 0.17 A / 12 V
Cable Lenght: 400 mm
Size & Weight
Lenght: 140 mm
Width: 140 mm
Height: 27mm
Weight: 225g
Packaging
Width: 34 mm
Height: 167 mm
Length: 167 mm
Weight: 0.297 kg

ARCTIC P14 PWM PST A-RGB 0dB
Adresovatelné RGB pro plnou kontrolu barev
P14 PWM PST A-RGB má 12 digitálnĂch A-RGB LED diod ve stĹ™edovĂ©m koleÄŤku ventilátoru. Ty lze ovládat nezávisle na sobÄ› a jsou kompatibilnĂ s běžnĂ˝mi standardy A-RGB pĹ™ednĂch vĂ˝robcĹŻ základnĂch desek. Ventilátor tak mĹŻĹľe bĂ˝t plnÄ› osvÄ›tlen pĹ™Ămo prostĹ™ednictvĂm konektoru A-RGB základnĂ desky nebo prostĹ™ednictvĂm externĂho ovladaÄŤe a synchronizován s osvÄ›tlenĂm dalšĂho hardwaru.
Režim 0 dB - nulové otáčky
Otáčky ventilátoru lze pomocĂ PWM snĂĹľit aĹľ na klidovĂ˝ stav. To umoĹľĹuje tichĂ˝ provoz v reĹľimu IDLE a zároveĹ zaruÄŤuje maximálnĂ vĂ˝kon v pĹ™ĂpadÄ› potĹ™eby.
Maximálnà hladkost, minimálnà vibrace
ProvoznĂ hluk novÄ› vyvinutĂ©ho motoru ARCTIC je sotva znatelnĂ˝ i pĹ™i nejnižšĂch otáčkách. KromÄ› toho má motor P14 PWM PST A-RGB pogumovanĂ© kontaktnĂ plochy, a tĂm sniĹľuje slyšitelnĂ© vibrace na minimum.
Optimalizováno pro vysoký statický tlak
P14 PWM PST A-RGB pracuje s cĂlenĂ˝m proudÄ›nĂm vzduchu a vysokĂ˝m statickĂ˝m tlakem. Ventilátor tak zaruÄŤuje mimořádnÄ› účinnĂ© chlazenĂ i pĹ™i zvýšenĂ©m odporu vzduchu, a je proto vhodnĂ˝ pro pouĹľitĂ na chladiÄŤĂch, radiátorech a filtrech.
200 aĹľ 1900 ot/min - ĹĂzeno pomocĂ PWM PST
DĂky širokĂ©mu rozsahu otáček a inovativnĂ technologii PWM Sharing Technology (PST) lze otáčky ventilátoru P14 PWM PST A-RGB Ĺ™Ădit synchronnÄ› se všemi ostatnĂmi ventilátory. To sniĹľuje hluÄŤnost na minimum a zároveĹ zaruÄŤuje maximálnĂ chladicĂ vĂ˝kon.
Vysoce kvalitnĂ loĹľisko
DĂky kombinaci slitiny a maziva vyvinutĂ© v NÄ›mecku se sniĹľuje tĹ™enĂ v loĹľisku a dosahuje se vyššà účinnosti. TĂmto zpĹŻsobem se vyvĂjĂ mĂ©nÄ› tepla, vzniká menšà hluk loĹľiska a prodluĹľuje se Ĺľivotnost ventilátoru.
UpozornÄ›nĂ:
Popis, obrázky a jednotlivé parametry se mohou lišit v závislosti na zvoleném modelu a konfiguraci.
