ARCTIC P12 Slim PWM pst – 120mm Pressure optimized case fan | Slim profile | PWM controlled speed wi
Kód: i54_201064306Skladom>5ks
Termín a spôsob doručenia
ARCTIC P12 Slim PWM PST (3-pack) Pressure-optimised 120 mm PWM Fan with integrated Y-cable (120 mmxprečítajte si viac
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodnené balenie
Množstevné zľavy
/envelope.svg){kind=small}
Váš dotaz
/bell.svg){kind=small}
Sledovat
/share.svg){kind=small}
Zdieľať
Parametre
Výrobca:
Kód:
i54_201064306
EAN:
4895213703888
Záruka:
24
Stav:
Průměr ventilátoru:
120
Minimální otáčky ventilátoru:
300
Maximální otáčky ventilátoru:
2100
Průtok vzduchu (CFM):
42
Počet kusů v balení:
1
Konektor:
4-pin
PWM regulace:
Ano
Popis ARCTIC P12 Slim PWM pst – 120mm Pressure optimized case fan | Slim profile | PWM controlled speed wi

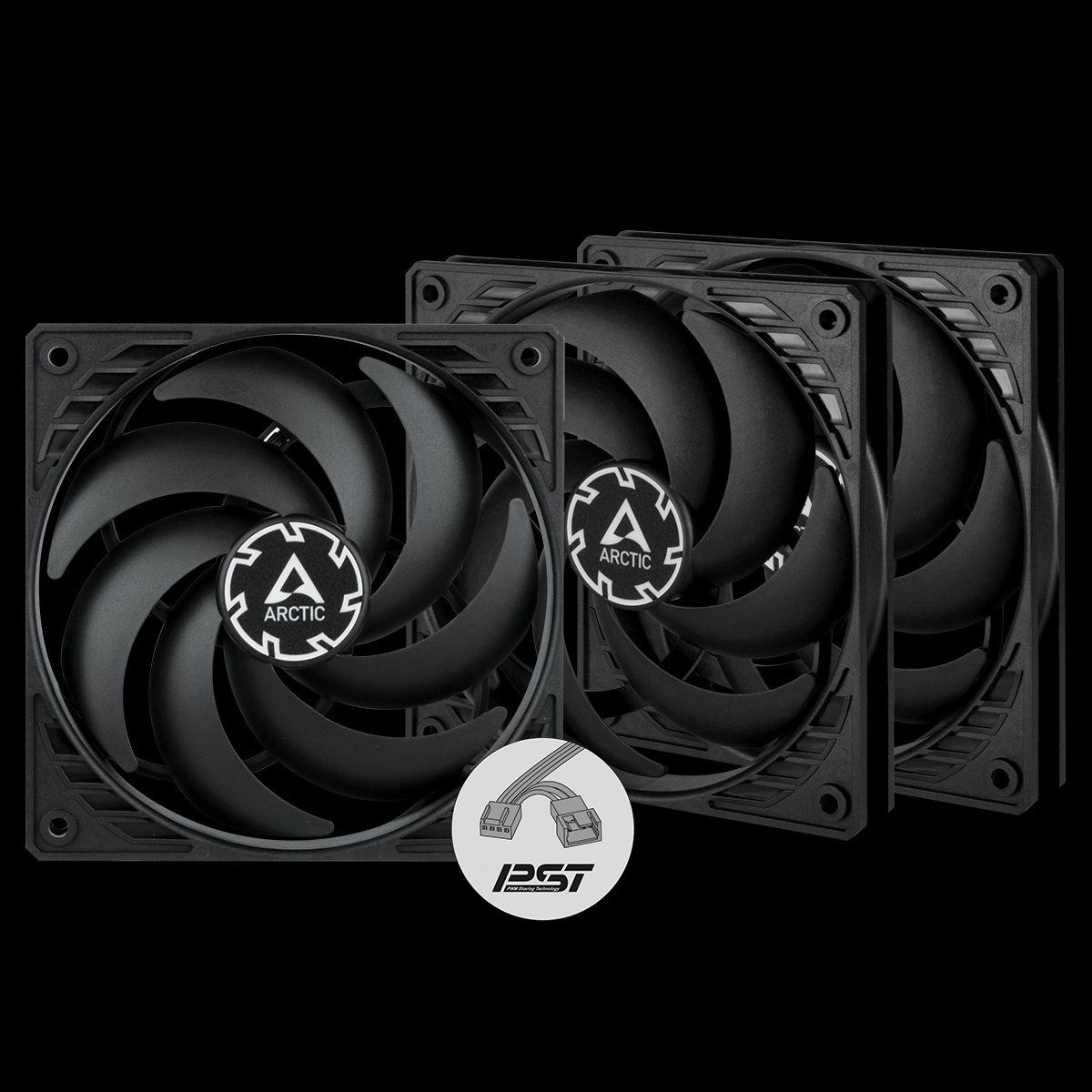

ARCTIC P12 Slim PWM PST (3-pack)
Pressure-optimised 120 mm PWM Fan with integrated Y-cable (120 mmx120 mmx15mm)
IDEAL WHERE SPACE IS LIMITED
Unlike normal case fans, which are 25 mm thick, the P12 Slim PWM PST has an installation depth of only 15 mm. This makes it a predestined fan for small form factor builds.
OPTIMISED FOR STATIC PRESSURE
During the development of the new P12 Slim PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 Slim PWM PST is particularly suitable for use on covered case vents or inlets with filters.
MORE EFFICIENT TECHNOLOGY
The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P12 Slim PWM PST to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.
MAXIMUM QUIETNESS, MINIMUM VIBRATION
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable.
Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
EXTENDED LIFE SPAN
A 10 °C lower motor temperature roughly doubles the life span of a fan.
The new ARCTIC motor has a four times longer service life through its low coil temperature.
300 TO 2100 RPM REGULATED VIA PWM PST
With a wide range of regulation and the PWM Sharing Technology (PST), the P12 Slim PWM PST fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed
HIGH QUALITY BEARING
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
TWO WAY INSTALLATION
Push warm air out of the case
Pull cool air into your case
General
Fan Speed: 300 - 2100 rpm
Airflow: 41.1 CFM/ 71.53 m3/h
Static Pressure: 1.45 (mm/H2O)
Noise Level: 0.3 Sone
Fan
Fan Frame: Standard
RPM-Controll: PWM
Connector: 4-Pin-Connector + 4-Pin-Socket
Fan Bearing: Fluid Dynamic Bearing
Elektrical Specification
Typical Voltage: 12 V DC
Startup Voltage: 4 V
Current: 0.12 A
Cable Length: 400 mm
Size & Weight
Length: 120 mm
Width: 120 mm
Heigth: 15 mm
Weight: 85 g
Pressure-optimised 120 mm PWM Fan with integrated Y-cable (120 mmx120 mmx15mm)
IDEAL WHERE SPACE IS LIMITED
Unlike normal case fans, which are 25 mm thick, the P12 Slim PWM PST has an installation depth of only 15 mm. This makes it a predestined fan for small form factor builds.
OPTIMISED FOR STATIC PRESSURE
During the development of the new P12 Slim PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 Slim PWM PST is particularly suitable for use on covered case vents or inlets with filters.
MORE EFFICIENT TECHNOLOGY
The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P12 Slim PWM PST to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.
MAXIMUM QUIETNESS, MINIMUM VIBRATION
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable.
Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
EXTENDED LIFE SPAN
A 10 °C lower motor temperature roughly doubles the life span of a fan.
The new ARCTIC motor has a four times longer service life through its low coil temperature.
300 TO 2100 RPM REGULATED VIA PWM PST
With a wide range of regulation and the PWM Sharing Technology (PST), the P12 Slim PWM PST fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed
HIGH QUALITY BEARING
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
TWO WAY INSTALLATION
Push warm air out of the case
Pull cool air into your case
General
Fan Speed: 300 - 2100 rpm
Airflow: 41.1 CFM/ 71.53 m3/h
Static Pressure: 1.45 (mm/H2O)
Noise Level: 0.3 Sone
Fan
Fan Frame: Standard
RPM-Controll: PWM
Connector: 4-Pin-Connector + 4-Pin-Socket
Fan Bearing: Fluid Dynamic Bearing
Elektrical Specification
Typical Voltage: 12 V DC
Startup Voltage: 4 V
Current: 0.12 A
Cable Length: 400 mm
Size & Weight
Length: 120 mm
Width: 120 mm
Heigth: 15 mm
Weight: 85 g
ARCTIC P12 Slim PWM PST (3 kusy v balenĂ)
Ideálnà pro malé prostory
Na rozdĂl od standardnĂch 120mm ventilátorĹŻ do skĹ™ĂnĂ s tloušťkou 25 mm má model P12 Slim PWM PST montážnĂ hloubku pouze 15 mm. DĂky tomu je ideálnĂ volbou pro sestavy s malĂ˝m formátem (SFF). SoučástĂ balenĂ jsou jiĹľ pĹ™ĂslušnĂ© šrouby pro montáž na radiátor.
Optimalizováno pro vysoký statický tlak
ProtoĹľe konstrukce ventilátoru P12 Slim PWM PST je optimalizována pro soustĹ™edÄ›nĂ˝ proud vzduchu, vytvářà vysokĂ˝ statickĂ˝ tlak. Ventilátor umoĹľĹuje extrĂ©mnÄ› účinnĂ© chlazenĂ a dobrĂ˝ proud vzduchu – i pĹ™i zvýšenĂ©m odporu vzduchu. DĂky tomu je P12 Slim PWM PST obzvláštÄ› vhodnĂ˝ pro pouĹľitĂ na skrytĂ˝ch vstupech skĹ™ĂnÄ›, prachovĂ˝ch filtrech, radiátorech a obecnÄ› v malĂ˝ch skĹ™ĂnĂch, kterĂ© majĂ málo prostoru pro volnĂ˝ proud vzduchu kvĹŻli kompaktnÄ› umĂstÄ›nĂ©mu hardwaru.
Maximálnà tichost, minimálnà vibrace
ProvoznĂ hluk novÄ› vyvinutĂ©ho motoru ARCTIC je sotva slyšitelnĂ˝, a to i pĹ™i nejnižšà rychlosti. DĂky speciálnĂ magnetizaci motor ventilátorĹŻ P-fans nevytvářà žádnĂ© startovacĂ trhnutĂ a pouze zlomek komutaÄŤnĂch vibracĂ běžnĂ©ho stejnosmÄ›rnĂ©ho motoru. VĂ˝sledkem je mnohem menšà vibrace na krytu pĹ™i rĹŻznĂ˝ch rychlostech a nenĂ potĹ™eba gumovĂ© tlumenĂ ani dodateÄŤnĂ© odpojenĂ.
Delšà životnost
NovĂ˝ motor ARCTIC generuje vĂ˝raznÄ› mĂ©nÄ› tĹ™ecĂho tepla neĹľ jeho pĹ™edchĹŻdci a souÄŤasnĂ© konkurenÄŤnĂ modely. VĂ˝sledkem je snĂĹľenĂ teploty cĂvky aĹľ o 20 stupĹĹŻ, coĹľ ÄŤtyĹ™násobnÄ› prodluĹľuje Ĺľivotnost, zatĂmco snĂĹľenĂ© tĹ™ecĂ ztráty zajišťujĂ efektivnÄ›jšà provoz.
200 aĹľ 2100 ot./min. ĹĂzeno pomocĂ PWM PST
DĂky širokĂ©mu rozsahu otáček a inovativnĂ technologii PWM Sharing Technology (PST) lze otáčky ventilátoru P12 Slim PWM PST regulovat synchronizovanÄ› s ostatnĂmi ventilátory. Ventilátory PST od spoleÄŤnosti ARCTIC jsou vybaveny vlastnĂm integrovanĂ˝m Ĺ™ešenĂm pro Ĺ™etÄ›zovĂ© zapojenĂ a kromÄ› zásuvnĂ©ho konektoru majĂ dalšà zásuvku, ke kterĂ© lze pĹ™ipojit dalšà ventilátor nebo aĹľ ÄŤtyĹ™i dalšà ventilátory PST v sĂ©riovĂ©m zapojenĂ.
Vysoce kvalitnà kluzné ložisko
DĂky kombinaci slitiny a maziva vyvinutĂ©ho v NÄ›mecku je tĹ™enĂ v loĹľisku minimalizováno a je dosaĹľeno vyššà účinnosti. KromÄ› zabránÄ›nĂ Ăşniku maziva je takĂ© na minimum snĂĹľeno opotĹ™ebenĂ ÄŤepu a pouzdra. Vzniká mĂ©nÄ› tepla, loĹľisko vydává mĂ©nÄ› hluku a Ĺľivotnost ventilátoru se vĂ˝raznÄ› prodluĹľuje.
Režim 0 dB – nulové otáčky
Rychlost ventilátoru P12 Slim PWM PST lze pomocĂ PWM snĂĹľit aĹľ na nulovĂ© otáčky. To umoĹľĹuje efektivnĂ a tichĂ˝ provoz poÄŤĂtaÄŤe v klidu a zároveĹ zaruÄŤuje maximálnĂ vĂ˝kon v pĹ™ĂpadÄ› potĹ™eby.
VšestrannĂ© pouĹľitĂ
P12 Slim PWM PST umoĹľĹuje pĹ™izpĹŻsobitelnou instalaci do skĹ™ĂnÄ›. MĹŻĹľe nasávat chladnĂ˝ vzduch jako sacĂ ventilátor a vytlaÄŤovat teplĂ˝ vzduch jako vĂ˝fukovĂ˝ ventilátor. Ventilátor takĂ© nabĂzĂ moĹľnosti instalace na radiátor jak v tlaÄŤnĂ©m, tak v sacĂm reĹľimu.
UpozornÄ›nĂ:
Popis, obrázky a jednotlivé parametry se mohou lišit v závislosti na zvoleném modelu a konfiguraci.
