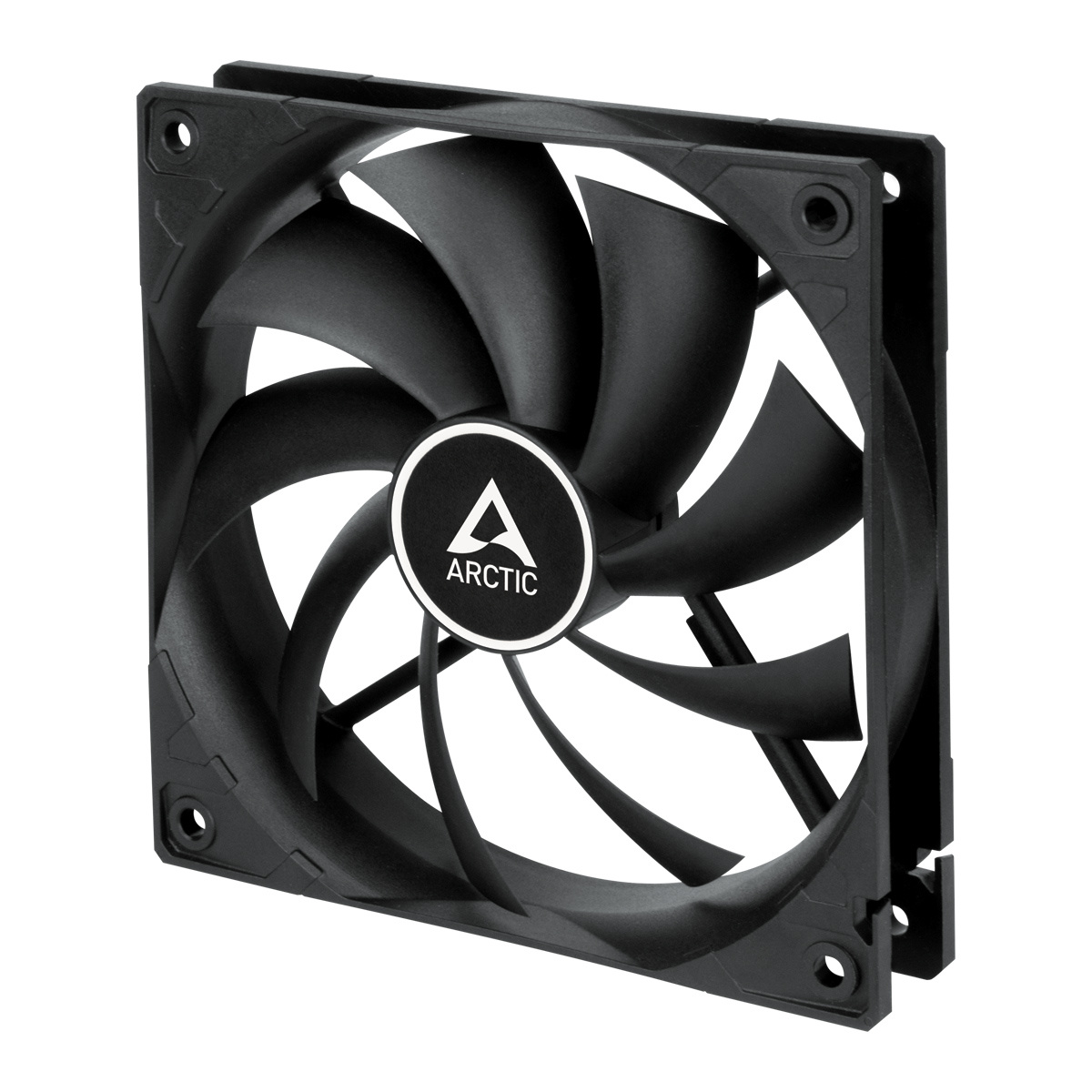

ARCTIC F12 PWM PST (Black)
Kód: i54_201064072K odeslání do 2 prac. dnů
Termín a spôsob doručenia
F12 PWM PST 120 mm PWM Case Fan LONG SERVICE LIFE The Fluid Dynamic Bearing comes with an oil cprečítajte si viac
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodnené balenie
Množstevné zľavy
/envelope.svg){kind=small}
Váš dotaz
/bell.svg){kind=small}
Sledovat
/share.svg){kind=small}
Zdieľať
Parametre
Výrobca:
Kód:
i54_201064072
EAN:
4895213702966
Záruka:
24
Stav:
Průměr ventilátoru:
120
Počet kusů v balení:
1
PWM regulace:
Ano
Popis ARCTIC F12 PWM PST (Black)
F12 PWM PST
120 mm PWM Case Fan
LONG SERVICE LIFE
The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life
PERFECT CASE FAN REGULATION WITH PWM
The PWM function allows the motherboard to run the fan precisely at its necessary speed. This guarantees the required cooling and minimizes the noise level.
PWM SHARING TECHNOLOGY (PST) LOWERS NOISE
If you want to improve the cooling efficiency of your computer you get several case fans working in parallel (since it takes 10 fans to double the noise level). But what does it help if they don't work together? The PST assures that all of your fans listen to one control signal. E.g. you share the CPU Cooler's PWM signal and assure that your case fans stand down at low load and spin up whenever necessary.
INNOVATIVE DESIGN ENABLES QUIET AND EFFICIENT VENTILATION
The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.
TWO WAY INSTALLATION
Blow warm air out of the case
Draw cool air into your case
General data
Performance
Fan Speed: 230 - 1350 rpm
Airflow: 53 CFM/ 90.1 m3/h
Static Pressure: 1 mm H2O
Noise Level: 0.3 Sone
Operating Ambient Temperature: 0 - 40 °C
Fan
Fan Frame: Standard
Control Type: PWM PST
Connector: 4-Pin-Connector + 4-Pin-Socket
Fan Bearing: Fluid Dynamic Bearing
Electric Characteristics:
Typical Voltage: 12 V DC
Starting Voltage: 6 V
Current/ Voltage: 0.12 A / 12 V
Cable Lenght: 400 mm
Size & Weight
Lenght: 120 mm
Width: 120 mm
Height: 25 mm
Weight: 109 g
Packaging
Width: 123 mm
Height: 27 mm
Length: 123 mm
Weight: 0.146 kg

120 mm PWM Case Fan
LONG SERVICE LIFE
The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life
PERFECT CASE FAN REGULATION WITH PWM
The PWM function allows the motherboard to run the fan precisely at its necessary speed. This guarantees the required cooling and minimizes the noise level.
PWM SHARING TECHNOLOGY (PST) LOWERS NOISE
If you want to improve the cooling efficiency of your computer you get several case fans working in parallel (since it takes 10 fans to double the noise level). But what does it help if they don't work together? The PST assures that all of your fans listen to one control signal. E.g. you share the CPU Cooler's PWM signal and assure that your case fans stand down at low load and spin up whenever necessary.
INNOVATIVE DESIGN ENABLES QUIET AND EFFICIENT VENTILATION
The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.
TWO WAY INSTALLATION
Blow warm air out of the case
Draw cool air into your case
General data
Performance
Fan Speed: 230 - 1350 rpm
Airflow: 53 CFM/ 90.1 m3/h
Static Pressure: 1 mm H2O
Noise Level: 0.3 Sone
Operating Ambient Temperature: 0 - 40 °C
Fan
Fan Frame: Standard
Control Type: PWM PST
Connector: 4-Pin-Connector + 4-Pin-Socket
Fan Bearing: Fluid Dynamic Bearing
Electric Characteristics:
Typical Voltage: 12 V DC
Starting Voltage: 6 V
Current/ Voltage: 0.12 A / 12 V
Cable Lenght: 400 mm
Size & Weight
Lenght: 120 mm
Width: 120 mm
Height: 25 mm
Weight: 109 g
Packaging
Width: 123 mm
Height: 27 mm
Length: 123 mm
Weight: 0.146 kg

ARCTIC F12 PWM PST
Maximálnà tichost, minimálnà vibrace
ProvoznĂ hluk novĂ©ho motoru ARCTIC je sotva znatelnĂ˝ i pĹ™i nĂzkĂ˝ch otáčkách. DĂky sinusovĂ© magnetizaci vytvářà novĂ˝ motor pouze asi 5 % vibracĂ z komutace běžnĂ©ho stejnosmÄ›rnĂ©ho motoru bez filtru.
Dokonalá regulace ventilátoru skĹ™ĂnÄ› pomocĂ PWM
Funkce PWM umoĹľĹuje základnĂ desce spouštÄ›t ventilátor pĹ™esnÄ› podle potĹ™ebnĂ˝ch otáček. TĂm je zaruÄŤeno poĹľadovanĂ© chlazenĂ a minimalizována hladina hluku.
Technologie sdĂlenĂ PWM (PST) sniĹľuje hluÄŤnost
Pokud chcete zlepšit účinnost chlazenĂ poÄŤĂtaÄŤe, poĹ™iÄŹte si nÄ›kolik paralelnÄ› pracujĂcĂch ventilátorĹŻ skĹ™ĂnÄ› (protoĹľe na zdvojnásobenĂ hluÄŤnosti je potĹ™eba deset ventilátorĹŻ). K ÄŤemu to ale pomĹŻĹľe, kdyĹľ nebudou spolupracovat? PST zajišťuje, Ĺľe všechny vaše ventilátory poslouchajĂ jeden Ĺ™ĂdicĂ signál. NapĹ™. sdĂlĂte PWM signál chladiÄŤe procesoru a zajistĂte, aby se ventilátory vašà skĹ™ĂnÄ› pĹ™i nĂzkĂ©m zatĂĹľenĂ zastavily a roztoÄŤily, kdykoli je to nutnĂ©.
InovativnĂ design umoĹľĹuje tichĂ© a účinnĂ© vÄ›tránĂ
InovativnĂ design lopatek ventilátoru zlepšuje proudÄ›nĂ vzduchu a umoĹľĹuje vysoce účinnĂ© vÄ›tránĂ. OběžnĂ© kolo bylo navrĹľeno s dĹŻrazem na minimalizaci hladiny hluku a zároveĹ na zajištÄ›nĂ poĹľadovanĂ©ho prĹŻtoku a tlaku vzduchu.
Obousměrná instalace
VytlaÄŤte teplĂ˝ vzduch ze skĹ™ĂnÄ›
VtáhnÄ›te chladnĂ˝ vzduch do skĹ™ĂnÄ›
Dlouhá životnost
FluidnĂ dynamickĂ© loĹľisko je vybaveno olejovou kapslĂ, která zabraĹuje Ăşniku maziva. Toto loĹľisko je tedy stejnÄ› tichĂ© jako pouzdro, ale má vĂ˝raznÄ› vyššà životnost.
UpozornÄ›nĂ:
Popis, obrázky a jednotlivé parametry se mohou lišit v závislosti na zvoleném modelu a konfiguraci.
