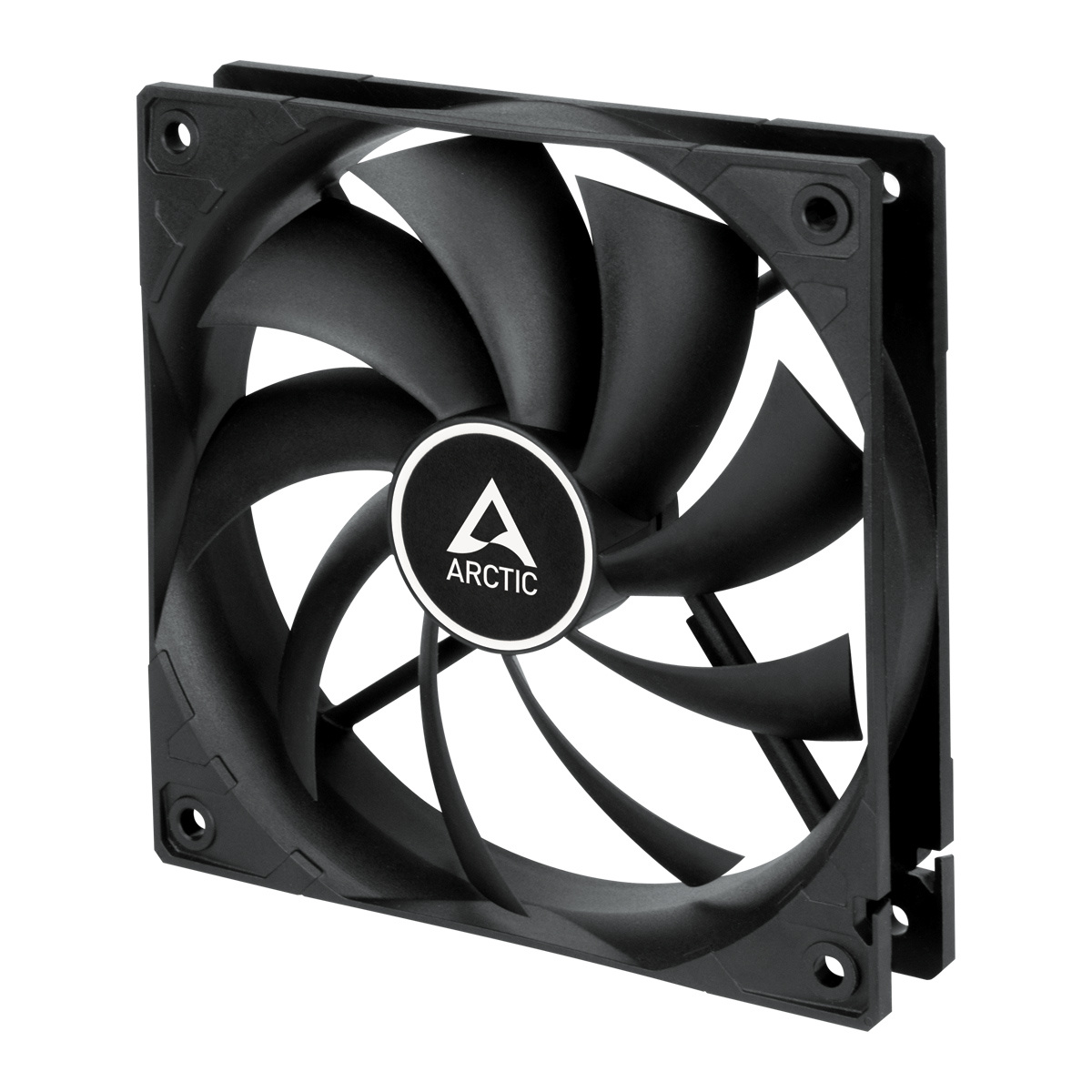

ARCTIC F12 Case Fan - 120mm case fan low noise
Kód: i54_201064071Skladom>5ks
Termín a spôsob doručenia
F12 120 mm Standard Case Fan LONG SERVICE LIFE The Fluid Dynamic Bearing comes with an oil capsprečítajte si viac
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodnené balenie
Množstevné zľavy
/envelope.svg){kind=small}
Váš dotaz
/bell.svg){kind=small}
Sledovat
/share.svg){kind=small}
Zdieľať
Parametre
Výrobca:
Kód:
i54_201064071
EAN:
4895213702942
Záruka:
24
Stav:
Průměr ventilátoru:
120
Počet kusů v balení:
1
Popis ARCTIC F12 Case Fan - 120mm case fan low noise
F12
120 mm Standard Case Fan
LONG SERVICE LIFE
The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life
INNOVATIVE DESIGN ENABLES QUIET AND EFFICIENT VENTILATION
The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.
TWO WAY INSTALLATION
Blow warm air out of the case
Draw cool air into your case
General data
Performance
Fan Speed: 1350 rpm
Airflow: 53 CFM/ 90.1 m3/h
Static Pressure: 1.00 mm H2O
Noise Level: 0.3 Sone
Operating Ambient Temperature: 0 - 40 °C
Fan
Fan Frame: Standard
Control Type: Fixed Speed
Connector: 3-Pin-Connector
Fan Bearing: Fluid Dynamic Bearing
Electric Characteristics:
Typical Voltage: 12 V DC
Starting Voltage: 2.7 V
Current/ Voltage: 0.12 A / 12 V
Cable Lenght: 400 mm
Size & Weight
Lenght: 120 mm
Width: 120 mm
Height: 25 mm
Weight: 107 g
Packaging
Width: 123 mm
Height: 123 mm
Length: 27 mm
Weight: 0.13 kg

120 mm Standard Case Fan
LONG SERVICE LIFE
The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life
INNOVATIVE DESIGN ENABLES QUIET AND EFFICIENT VENTILATION
The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.
TWO WAY INSTALLATION
Blow warm air out of the case
Draw cool air into your case
General data
Performance
Fan Speed: 1350 rpm
Airflow: 53 CFM/ 90.1 m3/h
Static Pressure: 1.00 mm H2O
Noise Level: 0.3 Sone
Operating Ambient Temperature: 0 - 40 °C
Fan
Fan Frame: Standard
Control Type: Fixed Speed
Connector: 3-Pin-Connector
Fan Bearing: Fluid Dynamic Bearing
Electric Characteristics:
Typical Voltage: 12 V DC
Starting Voltage: 2.7 V
Current/ Voltage: 0.12 A / 12 V
Cable Lenght: 400 mm
Size & Weight
Lenght: 120 mm
Width: 120 mm
Height: 25 mm
Weight: 107 g
Packaging
Width: 123 mm
Height: 123 mm
Length: 27 mm
Weight: 0.13 kg

ARCTIC F12 Case Fan
Maximálnà tichost, minimálnà vibrace
ProvoznĂ hluk novĂ©ho motoru ARCTIC je sotva znatelnĂ˝ i pĹ™i nĂzkĂ˝ch otáčkách. DĂky sinusovĂ© magnetizaci vytvářà novĂ˝ motor pouze asi 5 % vibracĂ z komutace běžnĂ©ho stejnosmÄ›rnĂ©ho motoru bez filtru.
InovativnĂ design umoĹľĹuje tichĂ© a účinnĂ© vÄ›tránĂ
InovativnĂ design lopatek ventilátoru zlepšuje proudÄ›nĂ vzduchu a umoĹľĹuje vysoce účinnĂ© vÄ›tránĂ. OběžnĂ© kolo bylo navrĹľeno s dĹŻrazem na minimalizaci hladiny hluku a zároveĹ na zajištÄ›nĂ poĹľadovanĂ©ho prĹŻtoku a tlaku vzduchu.
Dlouhá životnost
FluidnĂ dynamickĂ© loĹľisko je vybaveno olejovou kapslĂ, která zabraĹuje Ăşniku maziva. Toto loĹľisko je tedy stejnÄ› tichĂ© jako pouzdro, ale má vĂ˝raznÄ› vyššà životnost.
Obousměrná instalace
VytlaÄŤte teplĂ˝ vzduch ze skĹ™ĂnÄ›
VtáhnÄ›te chladnĂ˝ vzduch do skĹ™ĂnÄ›
UpozornÄ›nĂ:
Popis, obrázky a jednotlivé parametry se mohou lišit v závislosti na zvoleném modelu a konfiguraci.
