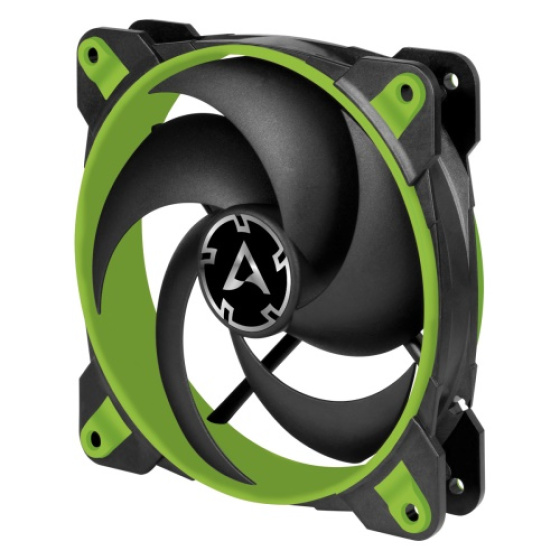

Popis ARCTIC BioniX P120 (Green)
Optimalizováno pro statický tlak - Během vývoje nového BioniX P120 byl kladen zvláštní důraz na koncentrovaný proud vzduchu a tím i vysoký statický tlak. Ventilátor zaručuje mimořádně účinné chlazení, a to i při zvýšené odolnosti proti působení vzduchu. Proto je BioniX P120 obzvláště vhodný pro použití na chladičích a radiátorech.
Optimised for Static Pressure
During the development of the new BioniX P120, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the BioniX P120 is particularly suitable for use on heatsinks and radiators.
More Efficient Technology
The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new BioniX P120 to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.
Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
Extended Life Span
A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we have extended the warranty to 10 years.
200 to 2100 RPM regulated via PWM PST
With a wide range of regulation and the PWM Sharing Technology (PST), the BioniX P120 fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.
0 dB Mode
The BioniX P120 is able to switch into silent passive mode when the PWM signal is below 5 % due to its new motor. This allows working at your PC in complete silence without any unwanted noise.
High Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
Performance
Fan: 120 mm, 200 - 2 100 RPM (Controlled by PWM), 0 dB fan mode below 5 % PWM
Air Flow: 67.56 CFM / 114.79 m3/h (@ 2.100 RPM)
Noise Level: 0.45 Sone (@ 2 100 RPM)
Static Pressure: 2.75 mm H2O (@ 2 100 U/min)
Electrical Characteristics
Typical Voltage: 12 V DC
Cable Length: 400 mm
Sub PST Cable Length: 50 mm
Connection
Motherboard: +12V DC
PWM control signal
4-pin connector + 4-pin socket
Optimised for Static Pressure
During the development of the new BioniX P120, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the BioniX P120 is particularly suitable for use on heatsinks and radiators.
More Efficient Technology
The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new BioniX P120 to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.
Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
Extended Life Span
A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we have extended the warranty to 10 years.
200 to 2100 RPM regulated via PWM PST
With a wide range of regulation and the PWM Sharing Technology (PST), the BioniX P120 fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.
0 dB Mode
The BioniX P120 is able to switch into silent passive mode when the PWM signal is below 5 % due to its new motor. This allows working at your PC in complete silence without any unwanted noise.
High Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
Performance
Fan: 120 mm, 200 - 2 100 RPM (Controlled by PWM), 0 dB fan mode below 5 % PWM
Air Flow: 67.56 CFM / 114.79 m3/h (@ 2.100 RPM)
Noise Level: 0.45 Sone (@ 2 100 RPM)
Static Pressure: 2.75 mm H2O (@ 2 100 U/min)
Electrical Characteristics
Typical Voltage: 12 V DC
Cable Length: 400 mm
Sub PST Cable Length: 50 mm
Connection
Motherboard: +12V DC
PWM control signal
4-pin connector + 4-pin socket
ARCTIC BioniX P120 (Green)
Optimalizováno pro statický tlak
PĹ™i vĂ˝voji novĂ©ho modelu BioniX P120 byl kladen zvláštnĂ dĹŻraz na soustĹ™edÄ›nĂ˝ proud vzduchu a tĂm i na vysokĂ˝ statickĂ˝ tlak. Ventilátor zaruÄŤuje extrĂ©mnÄ› účinnĂ© chlazenĂ i pĹ™i zvýšenĂ©m odporu vzduchu. Proto je model BioniX P120 obzvláštÄ› vhodnĂ˝ pro pouĹľitĂ na chladiÄŤĂch a radiátorech.
Silný chladicà výkon
ÄŚetná vylepšenĂ, jako napĹ™Ăklad aktualizovaná technologie motoru a novÄ› vyvinutĂ˝ design ventilátoru, znatelnÄ› zvýšila vĂ˝kon ventilátorĹŻ P-fan. V internĂch testech vĂ˝konu na Ăşrovni 28 dB (A) novĂ© ventilátory P-fan pĹ™edÄŤily mnoho konkurentĹŻ.
Účinnějšà technologie
Motor je pohánÄ›n integrovanĂ˝m obvodem PWM nejnovÄ›jšà generace, dĂky ÄŤemuĹľ je novĂ˝ model BioniX P120 mnohem účinnÄ›jšà neĹľ jeho pĹ™edchĹŻdci. To šetřà energii, aniĹľ by došlo ke snĂĹľenĂ vĂ˝konu.
Maximálnà tichost, minimálnà vibrace
I pĹ™i nĂzkĂ˝ch otáčkách je provoznĂ hluk novĂ©ho motoru ARCTIC sotva slyšitelnĂ˝. DĂky sinusovĂ© magnetizaci vytvářà novĂ˝ motor pouze asi 5 % vibracĂ zpĹŻsobenĂ˝ch komutacĂ běžnĂ©ho stejnosmÄ›rnĂ©ho motoru bez filtru. DĂky stabilnĂmu a plynulĂ©mu toÄŤivĂ©mu momentu novĂ©ho motoru proto nenĂ nutnĂ© pouĹľĂvat gumovĂ© distanÄŤnĂ vloĹľky.
Prodloužená životnost
O 10 °C nižšà teplota motoru zhruba zdvojnásobuje Ĺľivotnost ventilátoru. NovĂ˝ motor ARCTIC má dĂky nĂzkĂ© teplotÄ› cĂvky ÄŤtyĹ™ikrát delšà životnost. Proto poskytujeme vĂ˝robnĂ záruku 6 let.
200 až 2100 ot./min regulováno pomocà PWM PST
DĂky širokĂ©mu rozsahu regulace a technologii PWM Sharing Technology (PST) lze otáčky ventilátoru BioniX P120 synchronizovat se všemi ostatnĂmi ventilátory. TĂm se minimalizuje hluÄŤnost a zároveĹ se zaruÄŤuje maximálnĂ chladicĂ vĂ˝kon, kdyĹľ je to potĹ™eba.
Vysoce kvalitnĂ loĹľisko
DĂky kombinaci slitiny a maziva vyvinutĂ© v NÄ›mecku je tĹ™enĂ v loĹľisku snĂĹľeno a je dosaĹľeno vyššà účinnosti. VĂ˝sledkem je menšà tvorba tepla a menšà hluÄŤnost loĹľiska, coĹľ znamená, Ĺľe si mĹŻĹľete uĹľĂt delšà životnost ventilátoru.
Dvoucestná instalace
Vyfukujte teplý vzduch z krytu nebo nasávejte chladný vzduch do krytu
Kvalita, na kterou se mĹŻĹľete spolehnout
Abychom zajistili dlouhou Ĺľivotnost našich produktĹŻ, provádĂme dlouhodobĂ© testy za rĹŻznĂ˝ch, nÄ›kdy i velmi nepĹ™ĂznivĂ˝ch podmĂnek. TĂmto zpĹŻsobem se dozvĂdáme, jak mĹŻĹľeme naše produkty pro naše zákaznĂky trvale vylepšovat. KromÄ› toho nám vynikajĂcĂ vĂ˝sledky dlouhodobĂ˝ch testĹŻ dávajĂ jistotu, Ĺľe naše produkty jsou vynikajĂcĂ nejen z hlediska kvality, ale takĂ© z hlediska trvanlivosti. Tuto jistotu rádi pĹ™edáváme našim zákaznĂkĹŻm, a proto na BioniX P120 poskytujeme 6letou záruku vĂ˝robce.
UpozornÄ›nĂ:
Popis, obrázky a jednotlivé parametry se mohou lišit v závislosti na zvoleném modelu a konfiguraci.
