Allied Telesis PoE Injector, 802.3at AT-6101GP
Kód: i54_50257434Na dotaz
Termín a spôsob doručenia
Allied Telesis AT-6101GP Gigabit PoE+ Injector OVERVIEW The Allied Telesis AT-6101GP Power overprečítajte si viac
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodnené balenie
Množstevné zľavy
/envelope.svg){kind=small}
Váš dotaz
/bell.svg){kind=small}
Sledovat
/share.svg){kind=small}
Zdieľať
Parametre
Výrobca:
Kód:
i54_50257434
EAN:
767035197074
Záruka:
24
Stav:
Počet LAN portů:
2
Počet LAN portů:
2
POE:
Ano
PoE:
Out (výstup)
PoE In standard:
Nepodporuje
PoE Out standard:
802.3at (max. 33,6W) - PoE+
Popis Allied Telesis PoE Injector, 802.3at AT-6101GP

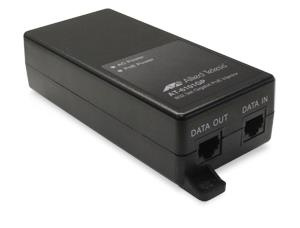

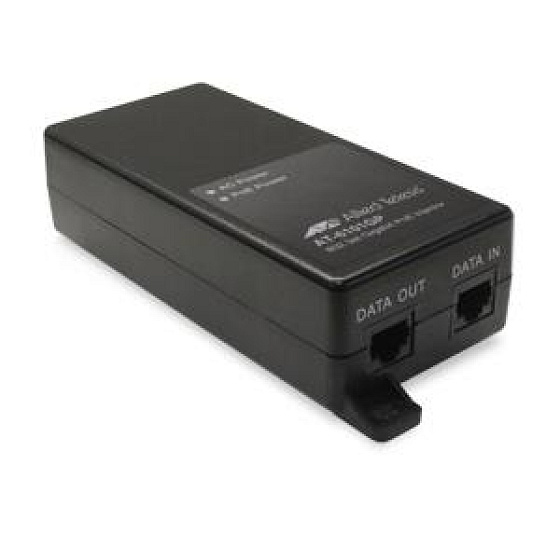

Allied Telesis AT-6101GP
Gigabit PoE+ Injector
OVERVIEW
The Allied Telesis AT-6101GP Power over Ethernet Plus Injector provides data and power through the Ethernet cable to PoE-equipped devices such as access points, IP cameras, VoIP phones and any other equipment supporting the IEEE 802.3at standard.
FEATURES
• Feeds power to Gigabit Ethernet devices
• Remote power feeding application
• Overload and short circuit protection
• Mix Ethernet and power into a single LAN
• Deliver power up to 100 meters
• Full IEEE 802.3at compliance
• Plug-and-Play
• CE, FCC, GOST, C-Tick approved
• Lightweight and compact size
• RoHS and WEEE compliant
• UL listed
SPECIFICATIONS
Standards
• IEEE 802.3 10T Ethernet
• IEEE 802.3u 100TX
• IEEE 802.3ab 1000T
• IEEE 802.3at
• IEEE 802.3af
Interface
• RJ-45 Connector for 10/100/1000T Gigabit Cooper Ports
Connector
• Data in: RJ45
• Data Pin Out: 1,2,3,4,5,6,7,8
• Data and Power Out: RJ45
• Data Pin Out: 1,2,3,4,5,6,7,8
• Power Pin Out: 1,2,3,6
Switching Scheme
• Store-and-Forward
Security
Network Cable:
• 10T: 2-pair UTP/STP Cat 3,4,5 cable EIA/TIA-568 100-? (100m)
• 100TX: 2-pair UTP/STP Cat.5 cable EIA/TIA-568 100-? (100m) Recommend Cat.5e cable above
• 1000T: 4-pair UTP/STP Cat.5E cable
LED Indicators
• AC Power x 1 (Green light on: Active, off: No Power)
• Feeding Power x 1 (Green light on: Powering Remote Device, off: No Power Supplied)
Power Supply
• Rated input voltage: 100VAC~240VAC
• Rated input frequency: 50~60Hz
• Rated input current: 0.72A
• Output voltage: 55VDC POE Output voltage
• Output current: 600mA POE Output current
• Output watt: 33W max. POE Output watt
• Over current protection: Yes
Environmental Specifications
• Operating temperature: 0°C to 40°C
• Storage temperature: -20°C to 80°C
• Humidity Operating: 10 to 90% (non-condensing)
• Humidity Storage: 10 to 90% (non-condensing)
Physical Specifications
• Dimensions (W x D x H): 65 x 36 x 140 mm
• Weight: 300g
• Case: Plastic Enclosure
• Flammability: UL94-V0 (PCB)
Power Characteristics
• Power Consumption: 36W
Gigabit PoE+ Injector
OVERVIEW
The Allied Telesis AT-6101GP Power over Ethernet Plus Injector provides data and power through the Ethernet cable to PoE-equipped devices such as access points, IP cameras, VoIP phones and any other equipment supporting the IEEE 802.3at standard.
FEATURES
• Feeds power to Gigabit Ethernet devices
• Remote power feeding application
• Overload and short circuit protection
• Mix Ethernet and power into a single LAN
• Deliver power up to 100 meters
• Full IEEE 802.3at compliance
• Plug-and-Play
• CE, FCC, GOST, C-Tick approved
• Lightweight and compact size
• RoHS and WEEE compliant
• UL listed
SPECIFICATIONS
Standards
• IEEE 802.3 10T Ethernet
• IEEE 802.3u 100TX
• IEEE 802.3ab 1000T
• IEEE 802.3at
• IEEE 802.3af
Interface
• RJ-45 Connector for 10/100/1000T Gigabit Cooper Ports
Connector
• Data in: RJ45
• Data Pin Out: 1,2,3,4,5,6,7,8
• Data and Power Out: RJ45
• Data Pin Out: 1,2,3,4,5,6,7,8
• Power Pin Out: 1,2,3,6
Switching Scheme
• Store-and-Forward
Security
Network Cable:
• 10T: 2-pair UTP/STP Cat 3,4,5 cable EIA/TIA-568 100-? (100m)
• 100TX: 2-pair UTP/STP Cat.5 cable EIA/TIA-568 100-? (100m) Recommend Cat.5e cable above
• 1000T: 4-pair UTP/STP Cat.5E cable
LED Indicators
• AC Power x 1 (Green light on: Active, off: No Power)
• Feeding Power x 1 (Green light on: Powering Remote Device, off: No Power Supplied)
Power Supply
• Rated input voltage: 100VAC~240VAC
• Rated input frequency: 50~60Hz
• Rated input current: 0.72A
• Output voltage: 55VDC POE Output voltage
• Output current: 600mA POE Output current
• Output watt: 33W max. POE Output watt
• Over current protection: Yes
Environmental Specifications
• Operating temperature: 0°C to 40°C
• Storage temperature: -20°C to 80°C
• Humidity Operating: 10 to 90% (non-condensing)
• Humidity Storage: 10 to 90% (non-condensing)
Physical Specifications
• Dimensions (W x D x H): 65 x 36 x 140 mm
• Weight: 300g
• Case: Plastic Enclosure
• Flammability: UL94-V0 (PCB)
Power Characteristics
• Power Consumption: 36W
