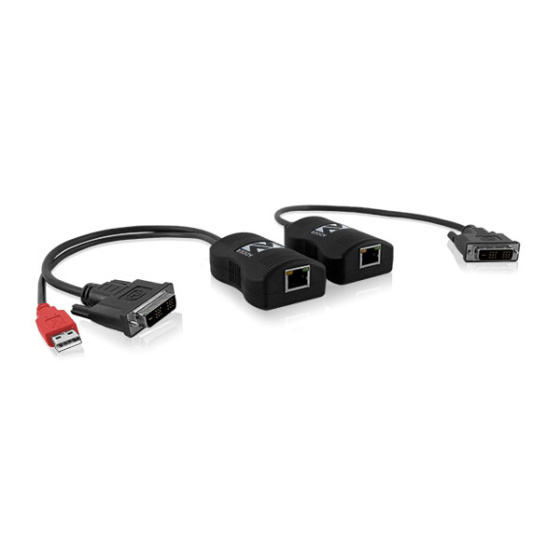

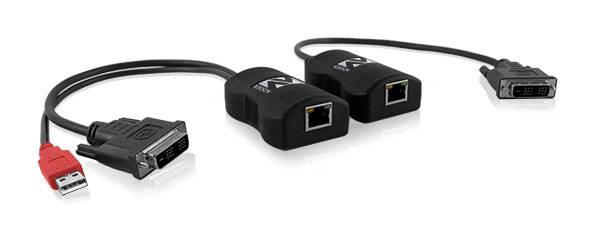

AdderLink LDV extender DVI
Kód: i54_.K-DV120PNa dotaz
Termín a spôsob doručenia
ADDERLink DV120 is an easy to install, highly compact video extender system that can transmit an HD prečítajte si viac
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodnené balenie
Množstevné zľavy
/envelope.svg){kind=small}
Váš dotaz
/bell.svg){kind=small}
Sledovat
/share.svg){kind=small}
Zdieľať
Parametre
Výrobca:
Kód:
i54_.K-DV120P
Záruka:
24
Stav:
DVI-D (M):
2
RJ-45 (F):
2
USB Type A (M):
1
Typ:
Redukce
Verze datového rozhraní:
USB 2.0, CAT7
Barva:
Černá
Barva tabletu:
Černá
Přesná délka (m):
0
Délka (m):
0
Barva:
Černá
Popis AdderLink LDV extender DVI
ADDERLink DV120 is an easy to install, highly compact video extender system that can transmit an HD video stream over a single CATx cable. This allows you to locate your media playback hardware in a secure and temperature controlled environment. Thus, your valuable systems are kept safely away from the display point environment whilst maintaining precisely the same user experience.
ADDERLink DV120 is ideally suited to the Digital Signage (DOOH - Digital Out-Of-Home) and Audio Visual (AV) industries.
Pixel perfect digital video
The ALDV120 uses an uncompressed communication system whereby the pixels of every frame are sent without loss. Resolutions up to 1920 x 1200 @ 60Hz (WUXGA) are supported.
Up to 50 meters over a single CATx cable
Video and power pass along a single cable, providing a maximum of 50 meters extension. The actual achievable extension distance is dependent upon the CATx cable type used and the number of connection breaks for patch panels and wall plates. Please see the table on reverse for details.
Highly energy efficient - No external power supplies are required
The AdderLink DV120 is designed to be highly power efficient, using less than an eighth of the power required by some competing systems. By harvesting power from a standard USB socket, no external PSUs are needed and hence the support infrastructure required is kept to an absolute minimum.
EDID management
The system has intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer.
Plug and Play
The AdderLink DV120 extenders are delivered in a zero config state so you can connect their two units and start working with them immediately. There’s no need for drivers or software to be installed.
Perfect video wall companion
With locking connectors and no power supplies required at the receiver, the ALDV120 makes a perfect companion for video walls where the controller must be located far from the screens.
Built to last
Adder Technology have a well-earned reputation for creating products that perform well and stay the course. The AdderLink DV120 is no exception and features tough, yet lightweight ABS enclosures to ensure they can easily withstand everyday treatment. The internal components and external connectors too are selected for their reliability in addition to their performance characteristics.
Hardware compatibility
All computers with DVI-D and USB connections - requirement dependent
DVI-D interface
The system supports resolutions such as 480p, 720p, 1080P or WUXGA (1920 x 1200) @ 60Hz* and 24 bit color depth
* with reduced blanking
Software compatibility
All known operating systems
Computer connections at transmitter (TX)
DVI-D male, USB type A (for power only)
Display connections at receiver (RX)
DVI-D male
Power
USB powered, 5VDC -2.5W for both RX and TX units combined
Physical design
Injection moulded ABS cases:
45mm / 1.8’’ (w) x 63mm / 2.5’’(d) x 21mm / 0.8’’(h) with 30cm / 12” pigtails, Weight 250g / 0.6 lb per pair
Operating temperature
0 to 40oC / 32 to 104oF
Approvals
CE, FCC
Important extension distance Information
Recommended cables are CAT7 shielded foiled twisted pairs:
Daetwyler 7702 Flexible patch cable
Daetwyler 7120 Bulk cable
Category 6 (or better) shielded twisted pair cable must be used to connect the local and remote units in order to maintain compliance with radio frequency energy emission regulations and ensure a suitably high level of immunity to electromagnetic disturbances.
Resolution Frequency Patch Connections Cable Type
Distance
1920x1200 60Hz 0 CAT7 50 metres
1920x1200 60Hz 0 CAT6a (shielded) 50 metres
1920x1200 60Hz 2 CAT6a (shielded) 40 metres
1920x1200 60Hz 2 CAT7 40 metres
Note: Distances are achieved using single lengths of trunk/bulk cable. For each break/patch connection reduce distance by 5 meters. Preferably patch cables should be of type CAT7 and less than 2 meters. Patch cables over 2 meters must be CAT7.
ADDERLink DV120 is ideally suited to the Digital Signage (DOOH - Digital Out-Of-Home) and Audio Visual (AV) industries.
Pixel perfect digital video
The ALDV120 uses an uncompressed communication system whereby the pixels of every frame are sent without loss. Resolutions up to 1920 x 1200 @ 60Hz (WUXGA) are supported.
Up to 50 meters over a single CATx cable
Video and power pass along a single cable, providing a maximum of 50 meters extension. The actual achievable extension distance is dependent upon the CATx cable type used and the number of connection breaks for patch panels and wall plates. Please see the table on reverse for details.
Highly energy efficient - No external power supplies are required
The AdderLink DV120 is designed to be highly power efficient, using less than an eighth of the power required by some competing systems. By harvesting power from a standard USB socket, no external PSUs are needed and hence the support infrastructure required is kept to an absolute minimum.
EDID management
The system has intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer.
Plug and Play
The AdderLink DV120 extenders are delivered in a zero config state so you can connect their two units and start working with them immediately. There’s no need for drivers or software to be installed.
Perfect video wall companion
With locking connectors and no power supplies required at the receiver, the ALDV120 makes a perfect companion for video walls where the controller must be located far from the screens.
Built to last
Adder Technology have a well-earned reputation for creating products that perform well and stay the course. The AdderLink DV120 is no exception and features tough, yet lightweight ABS enclosures to ensure they can easily withstand everyday treatment. The internal components and external connectors too are selected for their reliability in addition to their performance characteristics.
Hardware compatibility
All computers with DVI-D and USB connections - requirement dependent
DVI-D interface
The system supports resolutions such as 480p, 720p, 1080P or WUXGA (1920 x 1200) @ 60Hz* and 24 bit color depth
* with reduced blanking
Software compatibility
All known operating systems
Computer connections at transmitter (TX)
DVI-D male, USB type A (for power only)
Display connections at receiver (RX)
DVI-D male
Power
USB powered, 5VDC -2.5W for both RX and TX units combined
Physical design
Injection moulded ABS cases:
45mm / 1.8’’ (w) x 63mm / 2.5’’(d) x 21mm / 0.8’’(h) with 30cm / 12” pigtails, Weight 250g / 0.6 lb per pair
Operating temperature
0 to 40oC / 32 to 104oF
Approvals
CE, FCC
Important extension distance Information
Recommended cables are CAT7 shielded foiled twisted pairs:
Daetwyler 7702 Flexible patch cable
Daetwyler 7120 Bulk cable
Category 6 (or better) shielded twisted pair cable must be used to connect the local and remote units in order to maintain compliance with radio frequency energy emission regulations and ensure a suitably high level of immunity to electromagnetic disturbances.
Resolution Frequency Patch Connections Cable Type
Distance
1920x1200 60Hz 0 CAT7 50 metres
1920x1200 60Hz 0 CAT6a (shielded) 50 metres
1920x1200 60Hz 2 CAT6a (shielded) 40 metres
1920x1200 60Hz 2 CAT7 40 metres
Note: Distances are achieved using single lengths of trunk/bulk cable. For each break/patch connection reduce distance by 5 meters. Preferably patch cables should be of type CAT7 and less than 2 meters. Patch cables over 2 meters must be CAT7.
